Hand wheel

STOCK ITEM

For Linear unit QME.

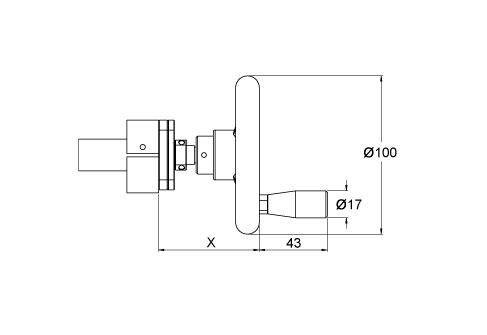

Dimensions in mm.

Read more

Product Information

CAD-Drawing

下載PDF檔 code.product.loadingpdf

+ 加入 PDF 目錄

Configure CAD Download CAD

Designation	Select all	Compare	Get quote	Lead Time *	Compatible with	X
QW12			Get quote	1	QME12	54
QW20			Get quote	1	QME20	64
QW30			Get quote	2	QME30	70

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
