FTSN

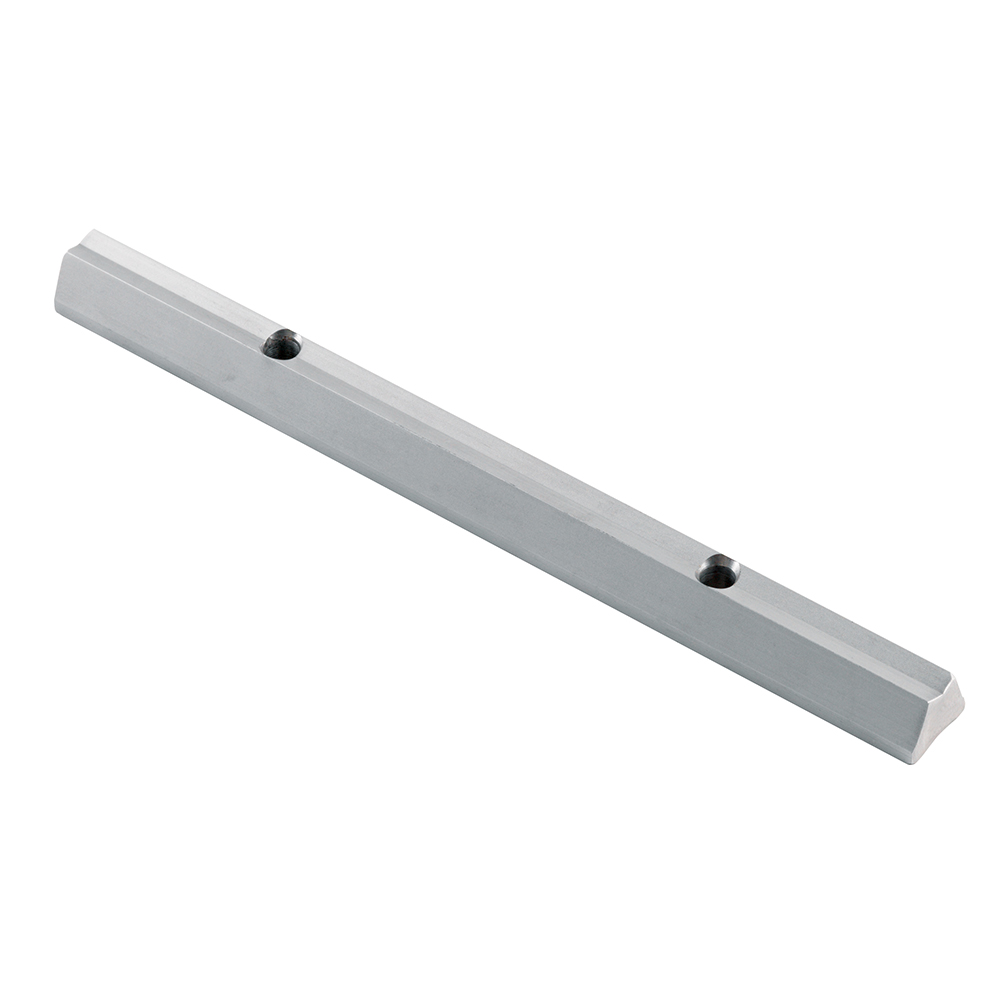

Aluminium shaft support with flange ,for drilled shafts Ø 12-40 mm.
Designation | Select all | Lead Time * | G | A | B | H | D | K | F | C | I | J | Remark | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2 | 100 | 14 | 7 | 18 | 16 | M5 | 3 | 5.5 | 7 | 19 | Standard section length L = 4000 mm |
|
||
|
1 | 100 | 17 | 8.5 | 22 | 20 | M6 | 3 | 6.6 | 8.1 | 23 | Standard section length L = 4000 mm |
|
||
|
1 | 120 | 21 | 10.5 | 26 | 25 | M8 | 3 | 9 | 10.3 | 28.5 | Standard section length L = 4000 mm |
|
||
|
1 | 150 | 23 | 11.5 | 30 | 30 | M10 | 3 | 11 | 11 | 32 | Standard section length L = 4000 mm |
|
||
|
2 | 200 | 40 | 15 | 39 | 40 | M10 | 4 | 13.5 | 15 | 39.5 | Standard section length L = 4000 mm |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
