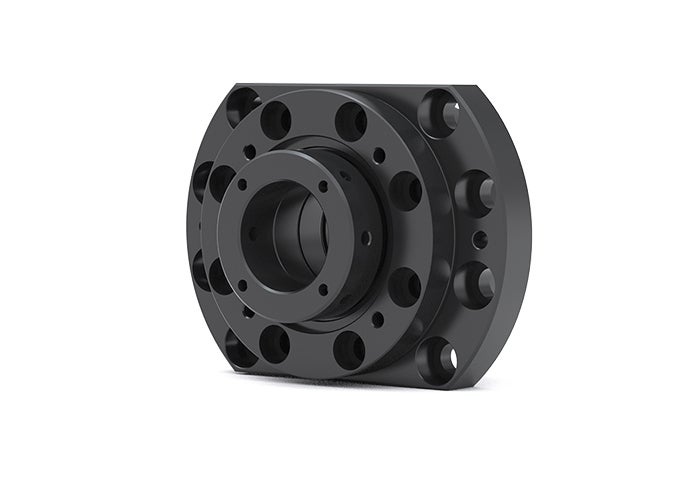

WBK..DF/WBK..DFF

STOCK ITEM
All dimensions in mm.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Permissible axial load Static Permissible axial load
1 20 kN 28,5 kN
尺寸對照
詢價
1 20,5 kN 30,2 kN
尺寸對照
詢價
2 33,3 kN 60,4 kN
尺寸對照
詢價
2 22,3 kN 36,4 kN
尺寸對照
詢價
2 36,1 kN 72,8 kN
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

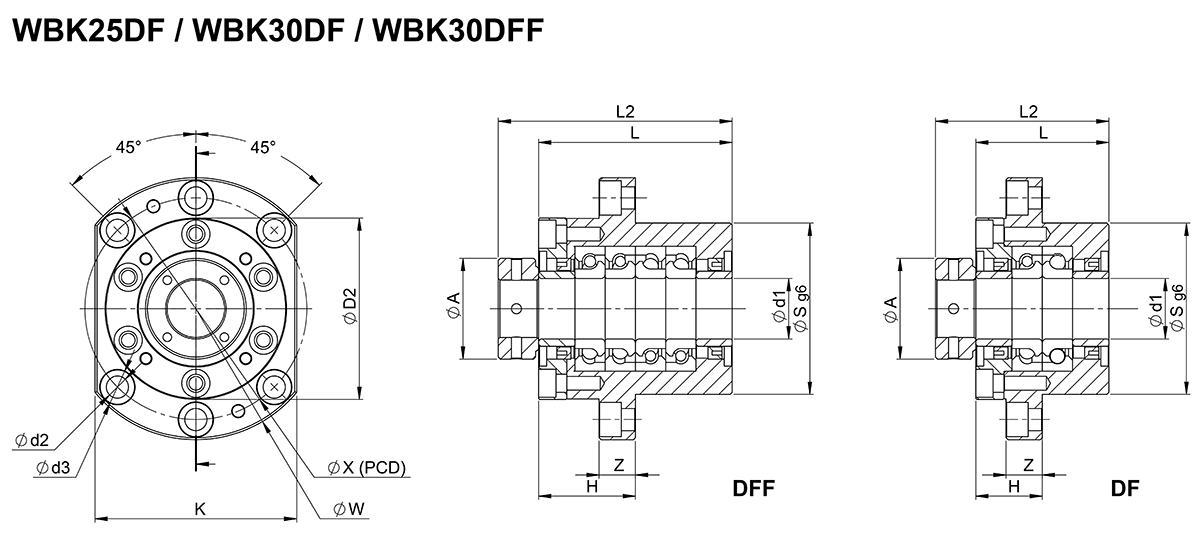

Technical Drawing
Designation Select all A d1 d2 L H K S Z L1 L2 L4 D3 Fig. Bearing X W
45 25 11 66 33 100 85 18 66 86 - 17 1 25TAC 62B 110 130
尺寸對照
詢價
50 30 11 66 33 100 85 18 66 86 - 17 1 30TAC 62B 110 130
尺寸對照
詢價
50 30 11 96 48 100 85 18 96 116 - 17 1 30TAC 62B 110 130
尺寸對照
詢價
60 40 11 66 33 106 95 18 60 83 3 17 2 40TAC 72B 121 142
尺寸對照
詢價
60 40 11 96 48 106 95 18 90 113 3 17 2 40TAC 72B 121 142
尺寸對照
詢價
Additional Drawing 1
Designation Select all Axial dynamic load capacity Ca Axial static load capacity C0a
28,5 kN 40,7 kN
尺寸對照
詢價
29,2 kN 43,2kN
尺寸對照
詢價
47,6 kN 86,3 kN
尺寸對照
詢價
31,9 kN 52 kN
尺寸對照
詢價
51,5 kN 104 kN
尺寸對照
詢價
