Sensor

• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class
• Dimensions in mm.
Download PDF

Product Information

Designation Lead Time *
1 詢價
1 詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

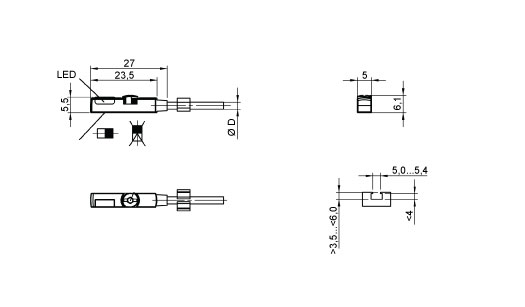

Technical Drawing
Designation Service voltage Output Max rating Contact rating Internal power consumption Voltage drop static Operating frequency Reproducibility Ambient temperature Insulation voltage endurance Protection class Indicators Mounting Casing material Connection Approval Short circuit protected
10 ... 30 V DC PNP, NO 200 mA 6 W max. (30 V, 200 mA) 6 mA 2,5 V max 5000 Hz < 0,1 mm -25 ... +85 °C 75 V DC IP 67 LED: yellow output signal Hex key size 2,0 mm. Max. tightening torque 0,4 Nm PA12 Cable PUR, 2,0 m as standard CE Yes 詢價
10 ... 30 V DC PNP, NC 200 mA 6 W max. (30 V, 200 mA) 6 mA 2,5 V max 5000 Hz < 0,1 mm -25 ... +85 °C 75 V DC IP 67 LED: yellow output signal Hex key size 2,0 mm. Max. tightening torque 0,4 Nm PA12 Cable PUR, 2,0 m as standard CE Yes 詢價
