Magnetic Field Sensors

Contact Rollco for CAD-files.

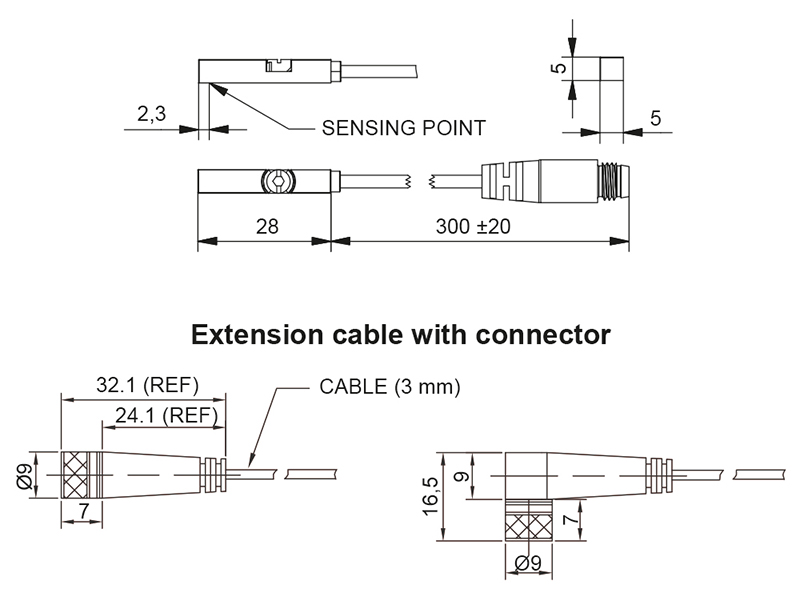

Dimensions in mm.

Product Information

Ambient Temperature (°C): -10 ~ +70
Sensor Type: GMR sensor
Switching function: NC/NO
Max. Switching Current (mA): 200x.
Switching Frequency (Hz): 1000
Voltage drop: 1.5 V / 200 mA max.
Protection class: IP67
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant
Cable material length: PU - 0.3 m
Output: PNP
Operating Voltage (V DC): 10 ~ 28
Max. Power Rating (W): 5.5 max.
Current consumption: 10 mA / 24 V max.
Shock/vibration: 50 G / 9 G
LED indicator: Yellow

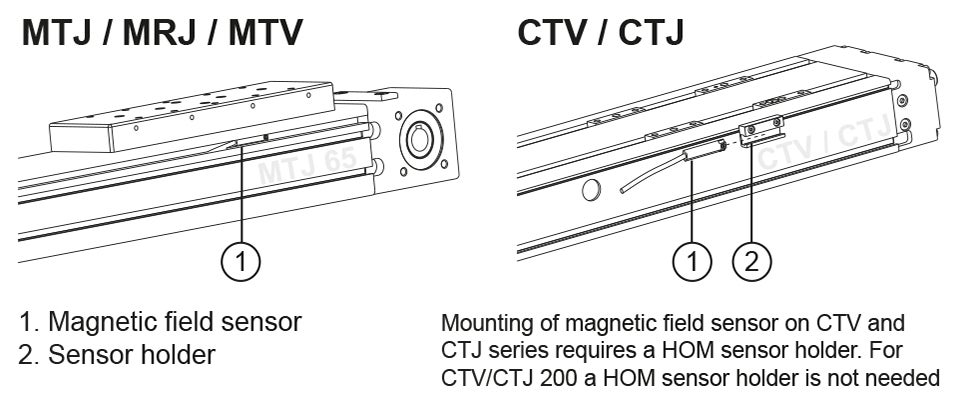

Designation Select all Lead Time * Compatible with
/storage/688FBFE1E75FE115B2CF9DDB06BB72220650FB4F2C1C4EDD709EEF68F0542F6C/90f8a296578540779585944748de502e/stp/media/3f161b10b54342eab07a09e0eaf942b2/CAD_HOMSensorHolder-43851_MagneticFieldSensors_Rollco.stp 2 CTV 90, 110, 145CTJ: 90, 110, 145
Get quote
/storage/55D58813057BCDB7813C637EA7F31D66B2F170F0CA7B6198848B0284BEFF3DAD/429e064e06a543f68f8e19d28c86d117/stp/media/02d535763ad541b4a781f1dc2ca12c06/CAD_SMT65TPKNC-74073_MagneticFieldSensors_Rollco.stp 2 MTJ / MRJ / MTV / MTJZ:40, 65, 80, 110 CTV / CTJ: 200
Get quote
/storage/8A16129BD4E2BECBA9F66CC42CD69BBC55948637842B77D5D4A3FF3850CC40EF/d0ad89ad4a8d400f9b3922188640a7e5/stp/media/f1d9e9b8b01544bf8f3733a5970378c4/CAD_SMT65TPKNC-77075_MagneticFieldSensors_Rollco.stp 1 CTV 90, 110, 145CTJ: 90, 110, 145
Get quote
/storage/D2A840680CDDFACE0A644B4174131B44C2EE1412C0E3E230850073A61A21533D/94b9287965dd4d218ce9ece5c5d1c0b0/stp/media/cd7b2ae3090245f88fbddbab13f57251/CAD_SMT65TPKNO-74074_MagneticFieldSensors_Rollco.stp 2 MTJ / MRJ / MTV / MTJZ:40, 65, 80, 110 CTV / CTJ: 200
Get quote
/storage/829BCEFAEDFB50A7BF71AFD348E8FED3C2373223FCA8A49C483055EDEEE4BCEC/64298588367d434abd75ebfacecf2183/stp/media/792b17612ec542d394e117d725e0be09/CAD_SMT65TPKNO-77076_MagneticFieldSensors_Rollco.stp 1 CTV 90, 110, 145CTJ: 90, 110, 145
Get quote
2 -
Get quote
/storage/37FD46824CA1E1A8C8D7D8C66B75550A4A2F9B3BDBD02B02AADACE073C6E1B05/f49272a649c44e0d8c061982512554db/stp/media/e21c49403ee543a48fcd7352ce58e419/CAD_ExtensionCable-8147_MagneticFieldSensors_Rollco.stp 2 -
Get quote
/storage/32F127B08F9AA195E7BFABB2FB352E743180FFD757B13B4B1A36ABF95D996A82/bda2e57e31534d3fb6b562ed92d0fb93/stp/media/981977824b61417cb9e17d5cd14267d7/CAD_ExtensionCable-9017_MagneticFieldSensors_Rollco.stp 2 -
Get quote
/storage/30CCEAF005D25D4FDC7708A7DAC3A0BE044A2F9C1DAADF0BE7352D9F259C49C9/f9730e23c7614cd99c2fb6c0b3600634/stp/media/47e4cf77591a4e6eb006aee2e2932f17/CAD_ExtensionCable-9019_MagneticFieldSensors_Rollco.stp 2 -
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
