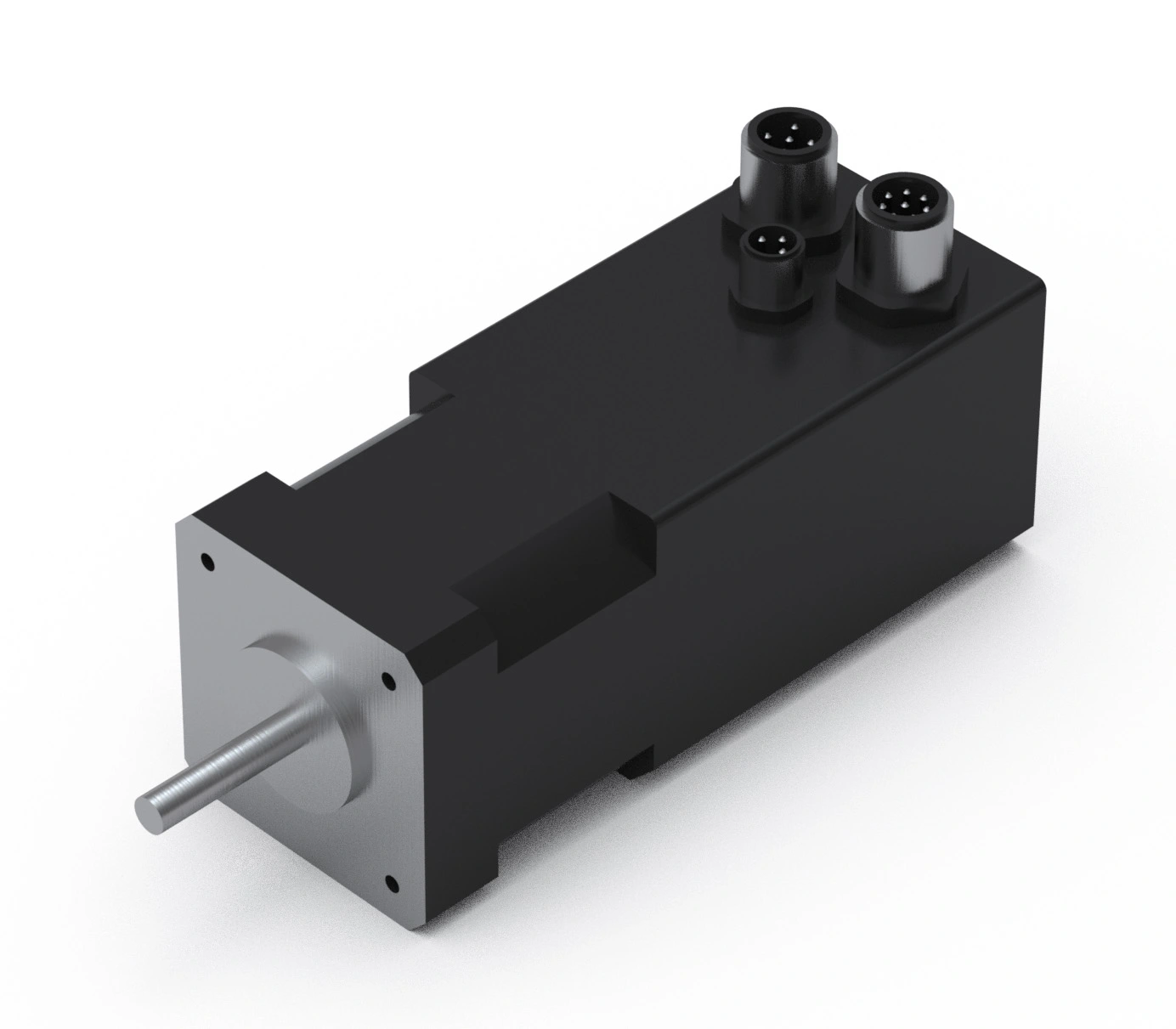

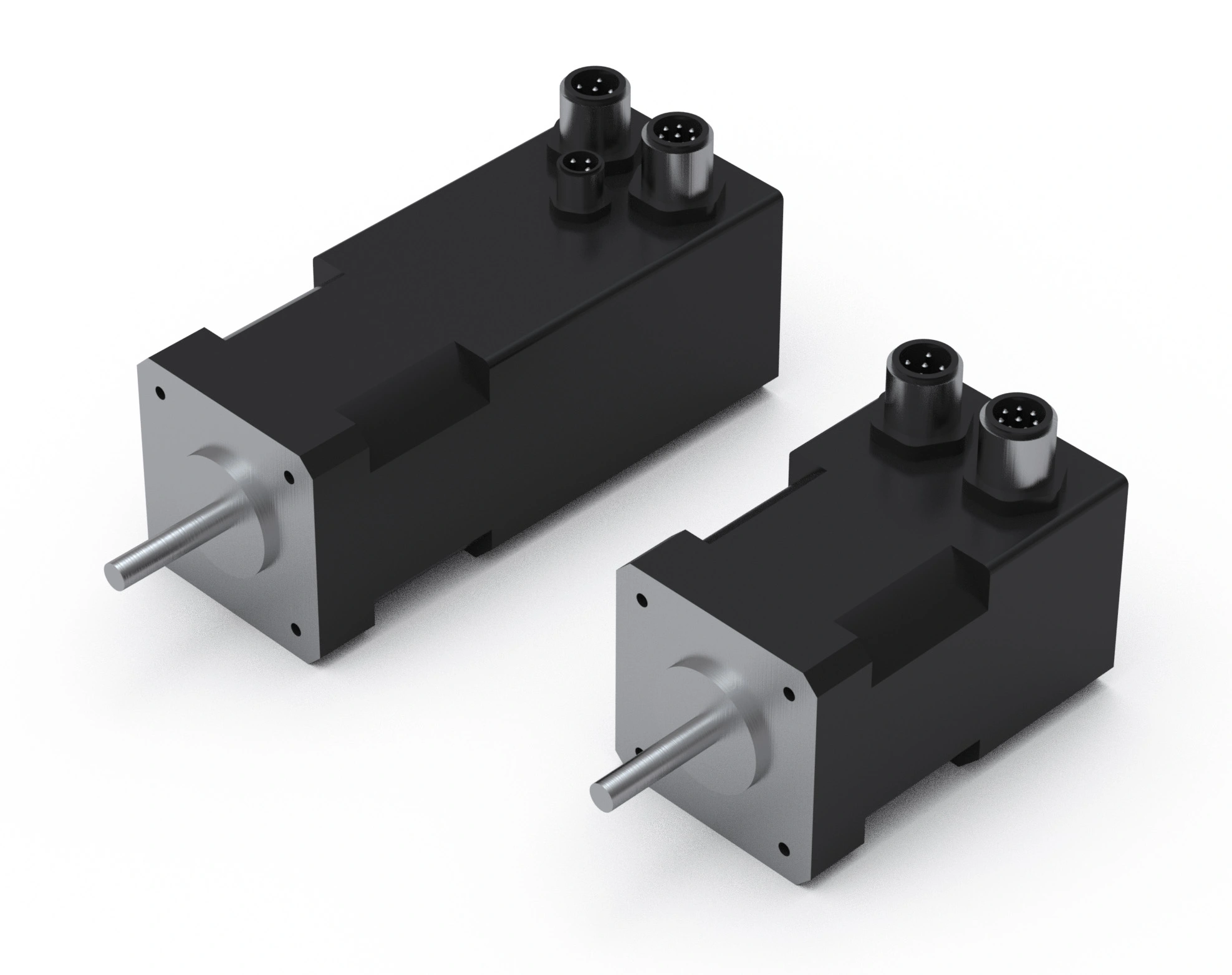

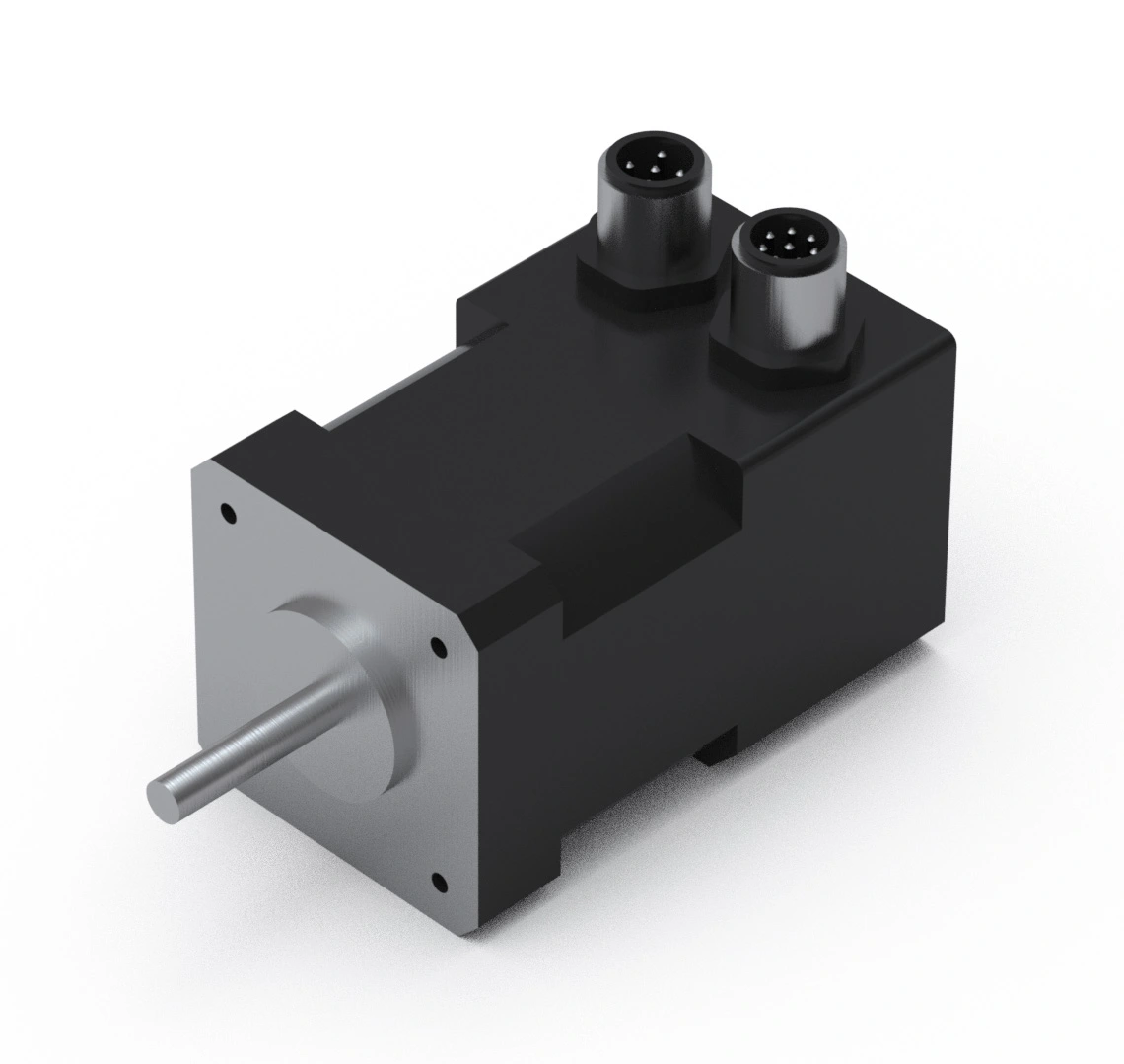

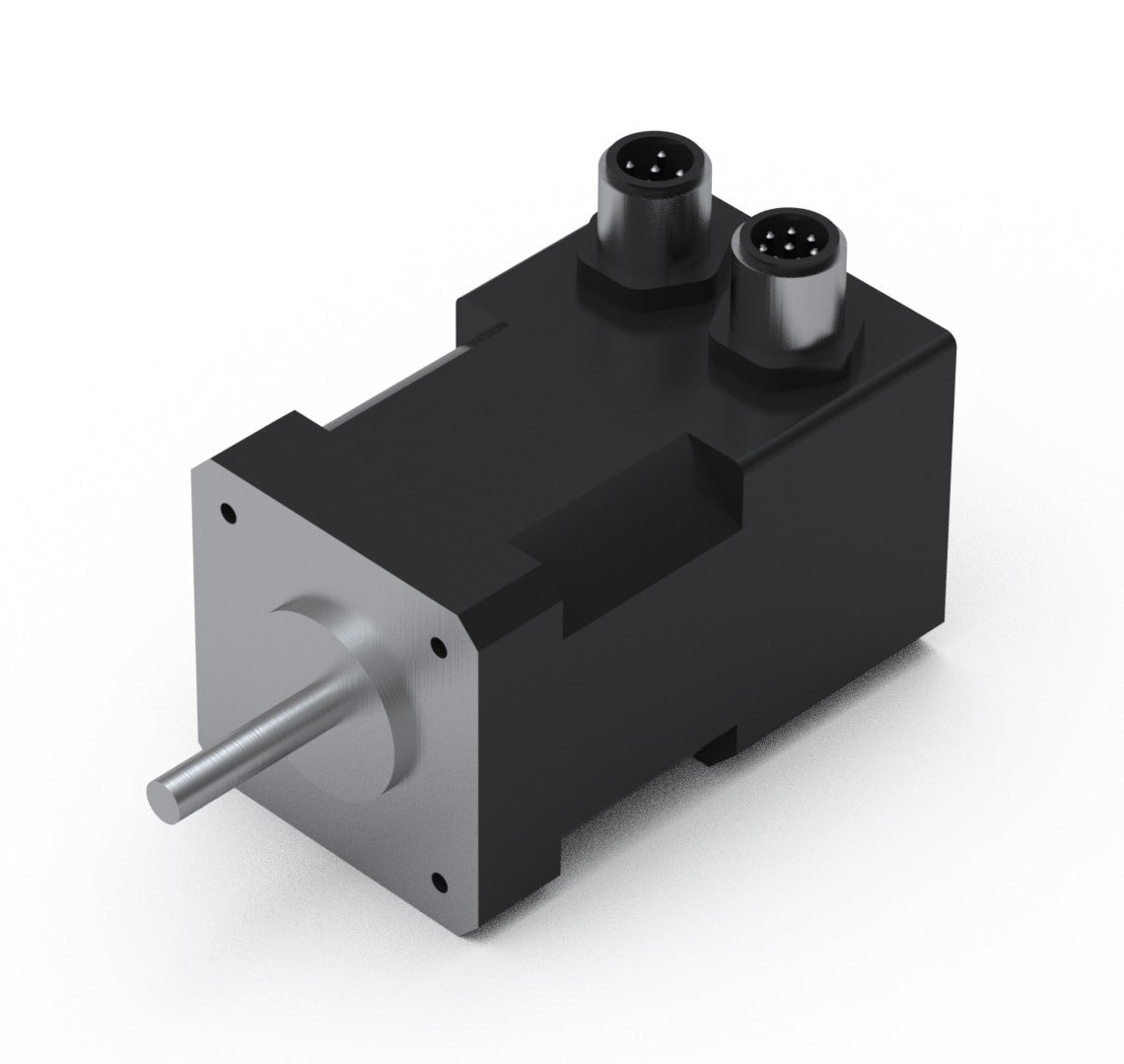

Motor

For Mini Linear Units MGBS & MGTB and MCE & MSCE Mini Electric Cylinders & Sliders.

See documentation below for more information.

Dimensions in mm.

Product Information

Ambient Temperature (°C): –10 ~ +50
Ambient Humidity: Max. 85 % (non-condensing)
Protection Class: IP65
Duty Cycle: 100 %
下載PDF檔 code.product.loadingpdf
+ 加入 PDF 目錄
Configure CAD Download CAD
Select columns
CAD Compare Get quote
Get quote 2 MGBS/MGTB 32 & 45, MCE/MSCE 32 & 45 Stepper 42 Without 3.15 1.8 0.082 0.5 1.8 ± 5 % 1.75 ± 15 % 3.3 ± 20 % 23 0.44 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 8
Get quote 2 MGBS/MGTB 32 & 45, MCE/MSCE 32 & 45 Stepper 42 With 3.15 1.8 0.095 0.5 (motor); 0.4 (brake) 1.8 ± 5 % 1.75 ± 15 % 3.3 ± 20 % 23 0.57 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 (encoder) ; 24 (+6/–10 %) (brake) 8
Get quote 2 MGBS/MGTB 45 & 60, MCE/MSCE 45 Stepper 56 Without 2.4 4.2 0.480 1.87 1.8 ± 5 % 0.58 ± 15 % 1.9 ± 20 % 32.5 1.14 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 10
Get quote 2 MGBS/MGTB 45 & 60, MCE/MSCE 45 Stepper 56 With 2.4 4.2 0.501 1.87 (motor) ; 1.0 (brake) 1.8 ± 5 % 0.58 ± 15 % 1.9 ± 20 % 32.5 1.33 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 (encoder) ; 24 (+6/–10 %) (brake) 10

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Select columns
CAD Compare Get quote

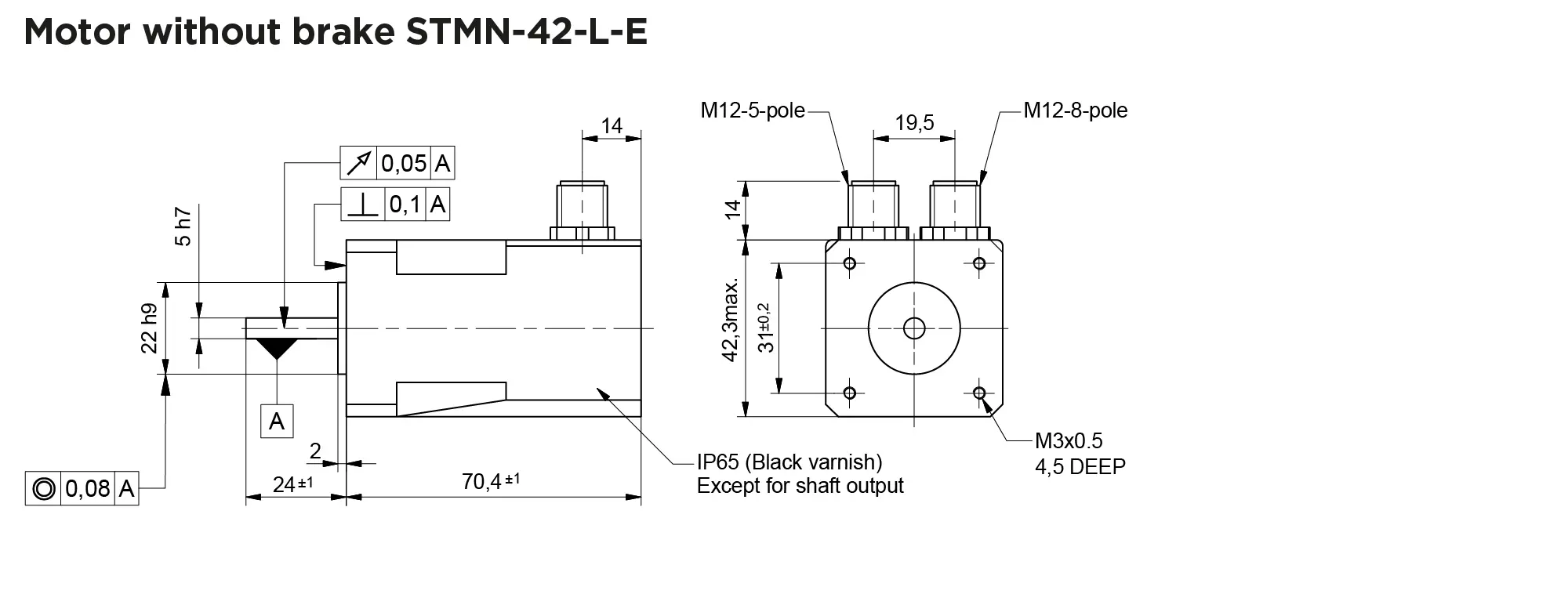

Get quote M12 5-pole M12 8-pole - 14 14 19.5 - - 70.4 42.3

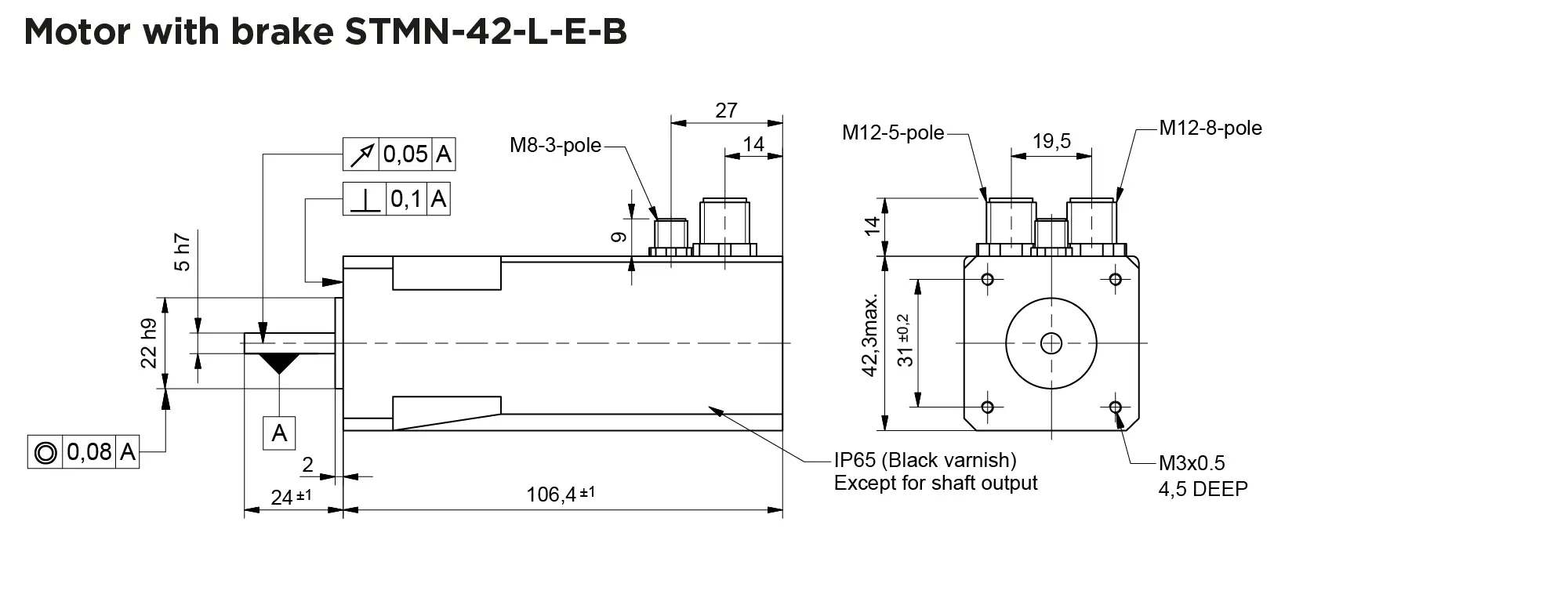

Get quote M12 5-pole M12 8-pole M8 3-pole 14 14 19.5 9 27 106.4 42.3

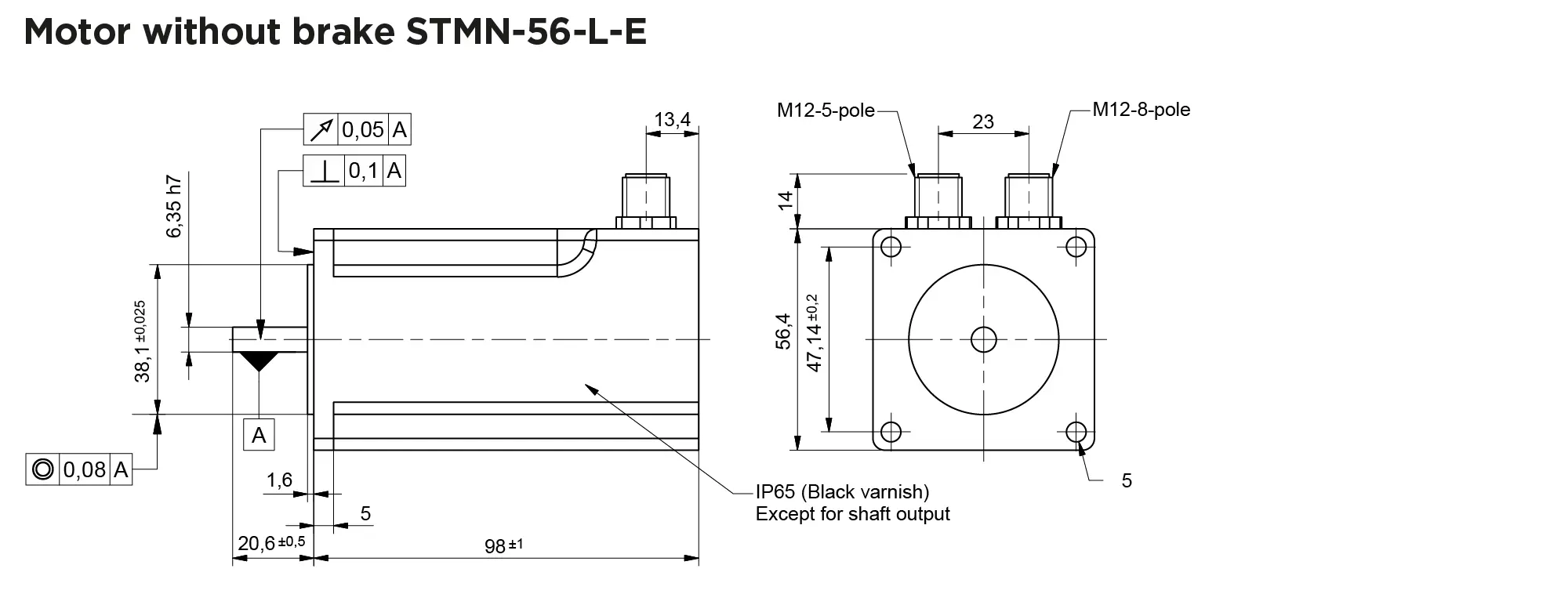

Get quote M12 5-pole M12 8-pole - 14 13.4 23 - - 98 56.4

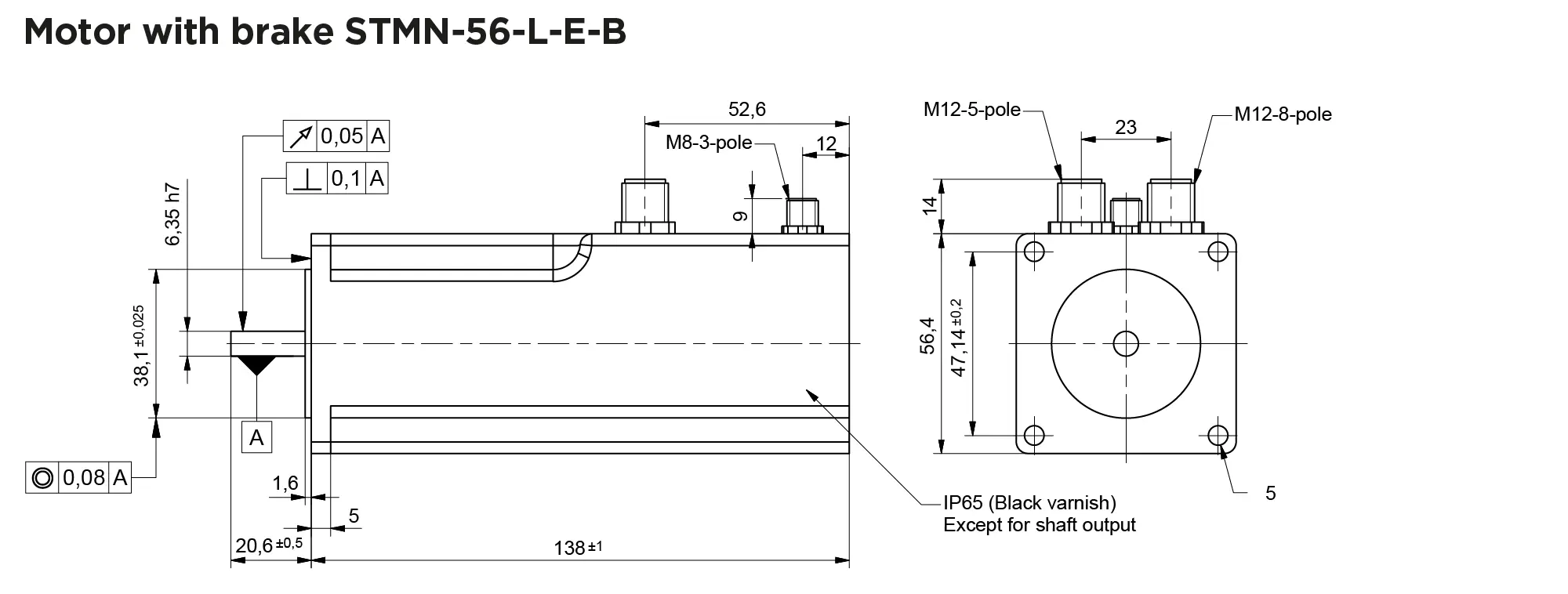

Get quote M12 5-pole M12 8-pole M8 3-pole 14 52.4 23 9 12 138 56.4
