220 (Right) & 230 (Left) Lock in / Lock out - 100% Extension
Telescopic aluminium ball bearing slide with latching system

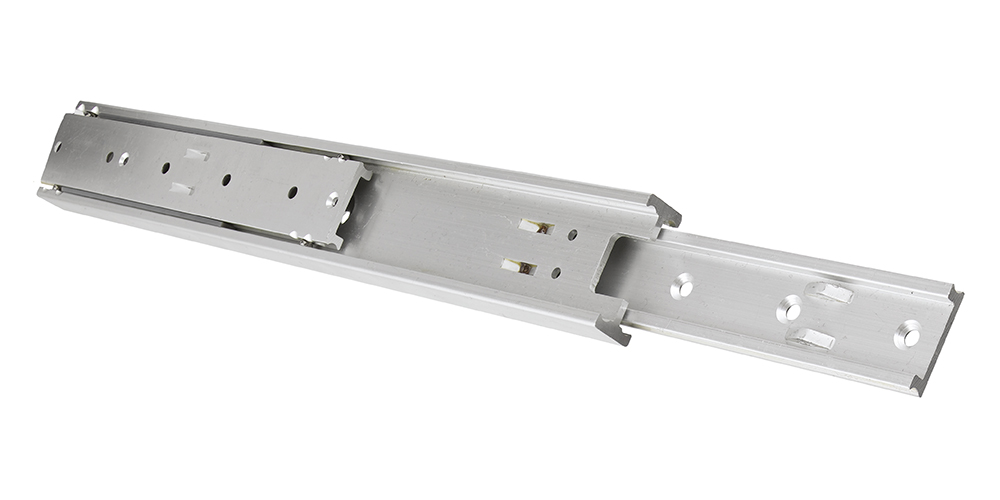

210 Non Lock - 100% Extension
Note 1: 15 mm dia. holes in centre beam allow easy access to fixing holes. M5 countersunk head screws to BS4183 are recommended for fixing.
Note 2: Elongated holes should be provided in either the framework or chassis to give adjustment if it is necessary for the panel to fit tight against the framework.
All dimensions in mm.
System Load Capacity value refers to a pair of rails.
Note 2: Elongated holes should be provided in either the framework or chassis to give adjustment if it is necessary for the panel to fit tight against the framework.
All dimensions in mm.
System Load Capacity value refers to a pair of rails.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
Product Information
| Designation | Select all | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | Number of Fixing Holes | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
1 | 300 | 330 | 550 | 6 |
|
||
|
|
1 | 350 | 380 | 620 | 7 |
|
||
|
|
1 | 400 | 430 | 710 | 8 |
|
||
|
|
1 | 450 | 480 | 780 | 9 |
|
||
|
|
1 | 500 | 530 | 840 | 10 |
|
||
|
|
1 | 550 | 580 | 880 | 11 |
|
||
|
|
1 | 600 | 630 | 900 | 12 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
