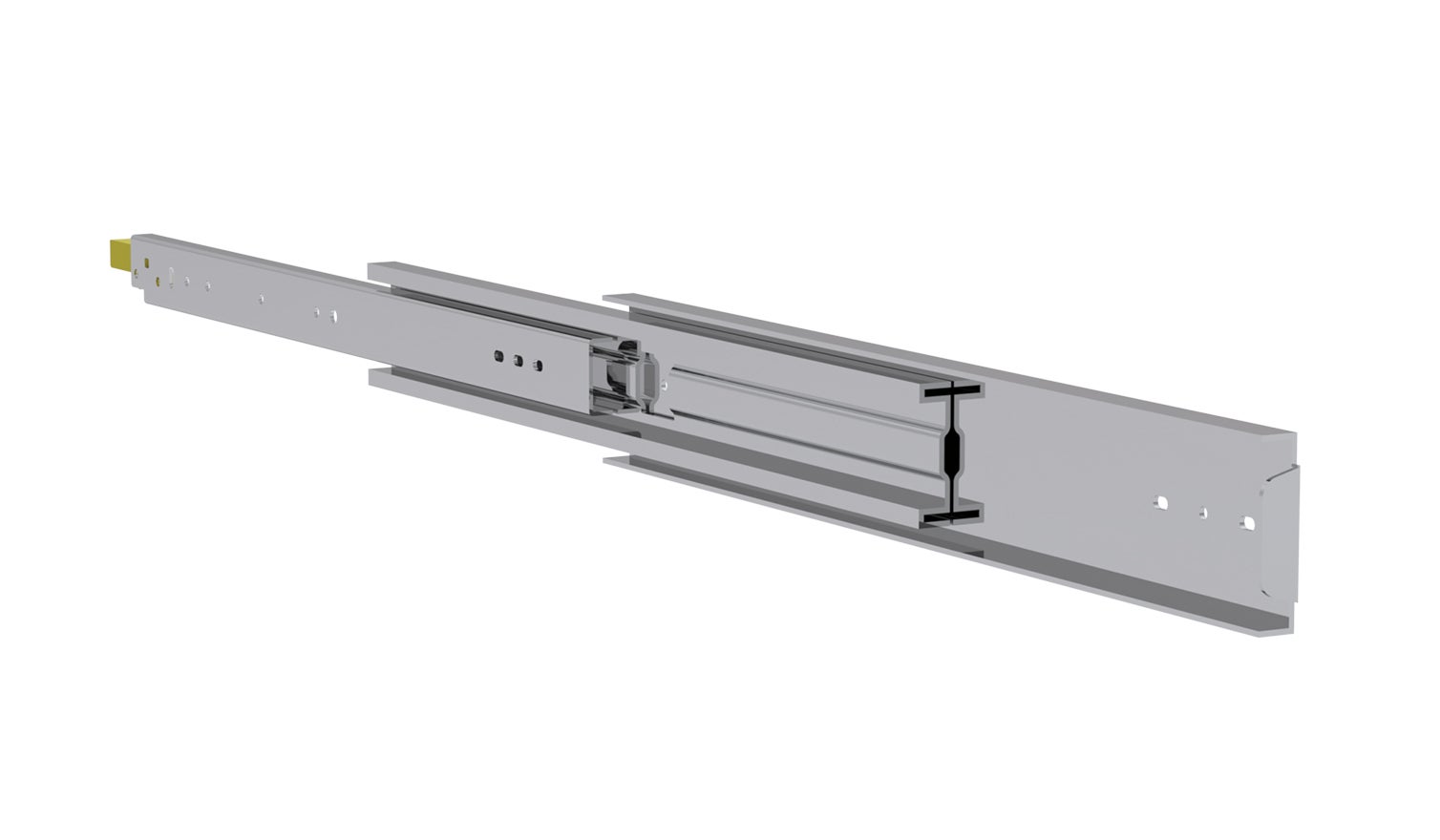

3080 - R Lock in / Lock out - 100% Extension
Telescopic steel 3 beam slide with integrated locking system, 100% extension, high loads

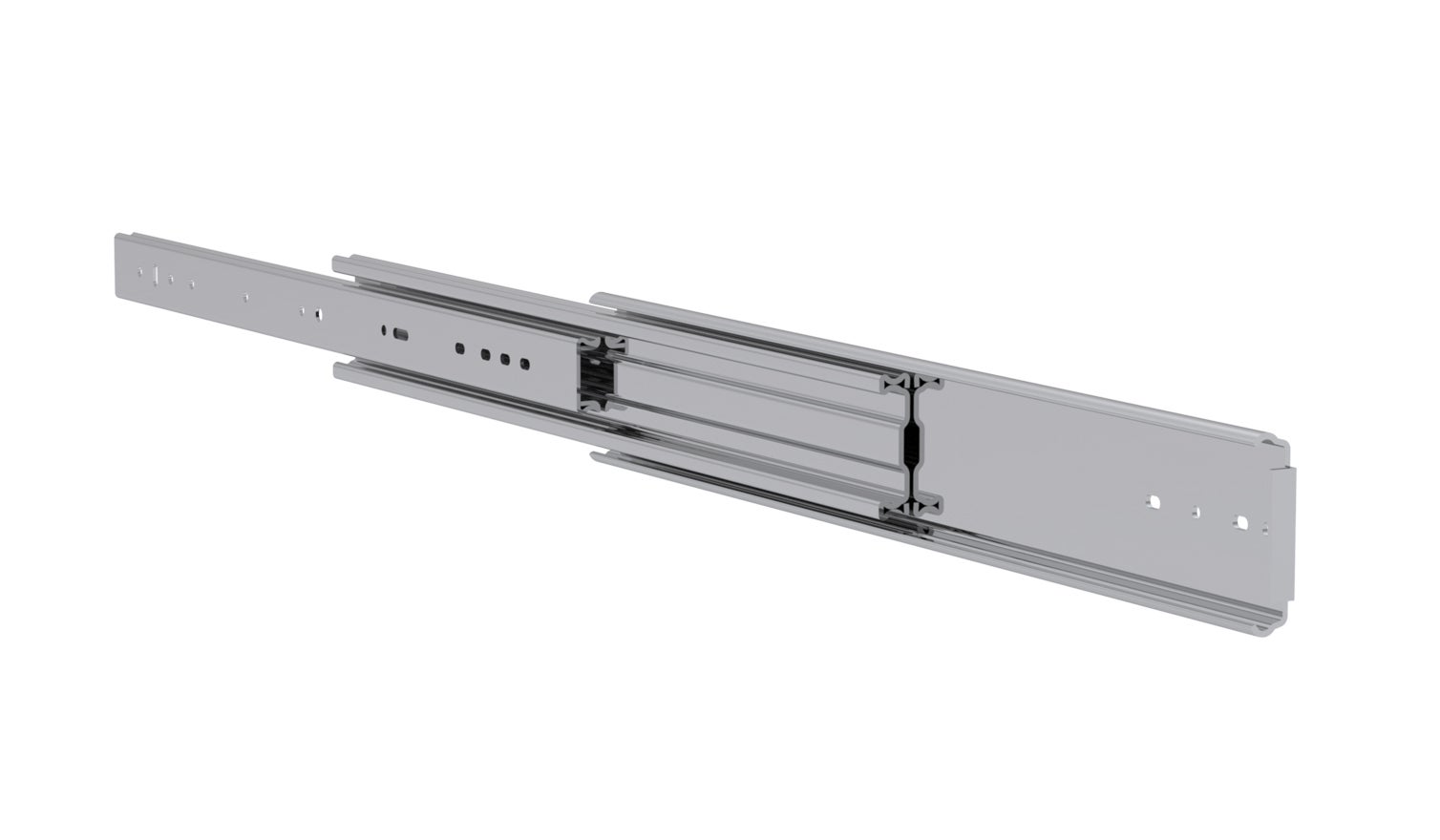

3080 - 100% Extension
3080 can be combined with the lockable telescopic rail 3080 - R Lock in / Lock out..
Intermediate stroke lengths are available on request. Minimum order quantities apply, and delivery times may be longer. Contact us for more information.
All dimensions in mm. System Load Capacity value refers to a pair of rails.
Intermediate stroke lengths are available on request. Minimum order quantities apply, and delivery times may be longer. Contact us for more information.
All dimensions in mm. System Load Capacity value refers to a pair of rails.
Product Information
Material: Cold-drawn steel profile, zinc plated
Extension: 100%
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | Weight/pc (kg) |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 304.8 | 304.8 | 1780 | 1.5 | |||
|
|
|
1 | 406.4 | 406.4 | 1780 | 2.02 | |||
|
|
|
1 | 508 | 508 | 1780 | 2.54 | |||
|
|
|
1 | 609.6 | 609.6 | 1690 | 3.04 | |||
|
|
|
1 | 711.2 | 711.2 | 1600 | 3.65 | |||
|
|
|
1 | 812.8 | 812.8 | 1510 | 4.15 | |||
|
|
|
1 | 914.4 | 914.4 | 1420 | 4.68 | |||
|
|
|
1 | 1016 | 1016 | 1330 | 5.2 | |||
|
|
|
1 | 1117.6 | 1117.6 | 1240 | 5.73 | |||
|
|
|
1 | 1219.2 | 1219.2 | 1150 | 6.25 | |||
|
|
|
1 | 1320.8 | 1320.8 | 1060 | 6.85 | |||
|
|
|
1 | 1422.4 | 1422.4 | 1020 | 7.3 | |||
|
|
|
1 | 1524 | 1524 | 890 | 7.8 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | D1 | E | F | G | H | I | J | M | N | P | Q | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
- | - | - | - | - | - | - | 154 | 179.4 | 198.4 | 217.4 | - | - | - | 203.2 | 260.4 | 279.4 | |||
|
|
|
127 | - | - | - | - | - | - | 255.6 | 281 | 299.9 | 319 | - | - | - | 304.8 | 361.9 | 381 | |||
|
|
|
127 | 190.5 | - | - | - | - | 296.9 | 357.2 | 382.6 | 401.6 | 420.6 | - | - | - | 406.4 | 463.6 | 482.6 | |||
|
|
|
127 | 190.5 | - | - | - | - | 398.5 | 458.8 | 484.2 | 503.2 | 522.2 | - | - | - | 508 | 565.2 | 584.2 | |||
|
|
|
127 | 190.5 | - | - | - | - | 500.1 | 560.4 | 585.8 | 604.8 | 623.8 | - | - | - | 609.6 | 666.8 | 685.8 | |||
|
|
|
127 | 190.5 | 368.3 | - | - | - | 601.7 | 662 | 687.4 | 706.4 | 725.4 | 234.9 | 393.7 | 552.5 | 711.2 | 768.4 | 787.4 | |||
|
|
|
127 | 190.5 | 368.3 | 520.7 | - | - | 703.3 | 763.6 | 789 | 807.9 | 827 | 234.9 | 444.5 | 654.1 | 812.8 | 870 | 889 | |||
|
|
|
127 | 190.5 | 368.3 | 622.3 | - | - | 804.9 | 865.2 | 890.6 | 909.6 | 928.6 | 234.9 | 495.3 | 755.7 | 914.4 | 971.6 | 990.8 | |||
|
|
|
127 | 190.5 | 368.3 | 723.9 | - | 825.5 | 906.5 | 966.8 | 992.2 | 1011.2 | 1030.2 | 234.9 | 546.1 | 857.3 | 1016 | 1073.2 | 1092.2 | |||
|
|
|
127 | 190.5 | 368.3 | 723.9 | 763.7 | 825.5 | 1004.7 | 1068.4 | 1093.8 | 1112.8 | 1131.8 | 234.9 | 406.8 | 958.8 | 1117.6 | 1174.8 | 1193.8 | |||
|
|
|
127 | 190.5 | 368.3 | 774.7 | - | 825.5 | 1109.7 | 1170 | 1195.4 | 1214.4 | 1233.4 | 234.9 | 596.9 | 958.8 | 1219.2 | 1276.4 | 1295.4 | |||
|
|
|
127 | 190.5 | 368.3 | 774.7 | - | 825.5 | 1211.3 | 1271.6 | 1297 | 1316 | 1335 | 234.9 | 596.9 | 958.8 | 1320.8 | 1378 | 1397 | |||
|
|
|
127 | 190.5 | 368.3 | 622.3 | 774.7 | 825.5 | 1309.5 | 1373.2 | 1398.6 | 1417.6 | 1436.6 | 234.9 | 495.3 | 1014.8 | 1422.4 | 1479.6 | 1498.6 |
