410 - 100% Extension

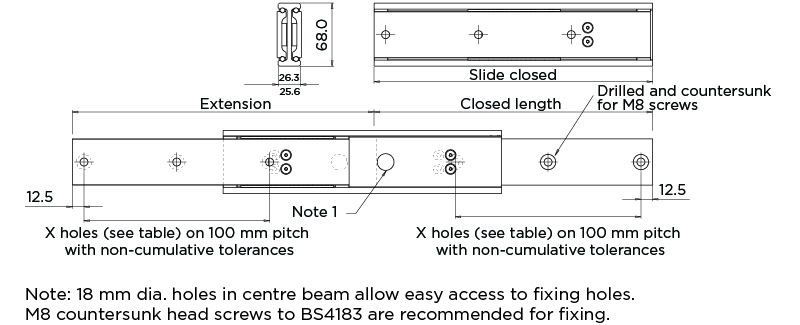

Note: 18 mm dia. holes in centre beam allow easy access to fixing holes. M8 countersunk head screws to BS4183 are recommended for fixing.
All dimensions in mm.
* Available on request
All dimensions in mm.
* Available on request
| Designation | Closed Length | Extension Length | Load / Pair | Number of Fixing Holes |
|---|---|---|---|---|
|
|
300.00 | 325.00 | 2900 N | 3.00 |
|
|
350.00 | 375.00 | 3000 N | 4.00 |
|
|
400.00 | 425.00 | 3100 N | 4.00 |
|
|
450.00 | 475.00 | 3200 N | 5.00 |
|
|
500.00 | 525.00 | 3300 N | 5.00 |
|
|
550.00 | 575.00 | 3400 N | 6.00 |
|
|
600.00 | 625.00 | 3400 N | 6.00 |
|
|
650.00 | 675.00 | 3300 N | 7.00 |
|
|
700.00 | 725.00 | 3200 N | 7.00 |
|
|
750.00 | 775.00 | 3100 N | 8.00 |
|
|
800.00 | 825.00 | 3000 N | 8.00 |
|
|
850.00 | 875.00 | 3000 N | 9.00 |
|
|
900.00 | 925.00 | 2800 N | 9.00 |
|
|
950.00 | 975.00 | 2700 N | 10.00 |
|
|
1,000.00 | 1,025.00 | 2500 N | 10.00 |
