RSKR

STOCK ITEM
Single Nut, Cylindrical with Thread
Match with Screw shaft: SR.

Tolerance D: h10

Standard nuts are without any seals or scrapers. Other types on request.

All other dimensions in mm.
Download PDF
Technical Drawing
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
1 2109 N 2345 N
尺寸對照
詢價
1 6327 N 6798 N
尺寸對照
詢價
1 10291 N 11223 N
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all d0 x Lead A B L D
8 x 2,5 M15 x 1 7.50 26 17.50
尺寸對照
詢價
12 x 4 M20 x 1 10 34 25.50
尺寸對照
詢價
16 x 5 M26 x 1,5 12 42 32.50
尺寸對照
詢價
Designation Select all Ball diameter Turns x circuits
1.20 1 x 2,5
尺寸對照
詢價
2.38 1 x 3,5
尺寸對照
詢價
3.18 1 x 3,5
尺寸對照
詢價
  • STOCK ITEM
    Lock nut for ball screw
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM

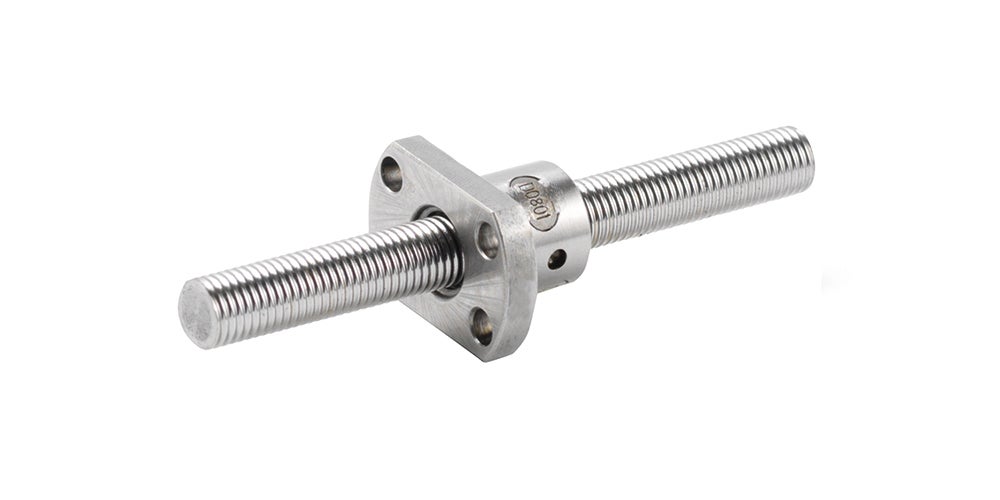

    Ball nut, miniature, with flange for right lead (SCR) screw
