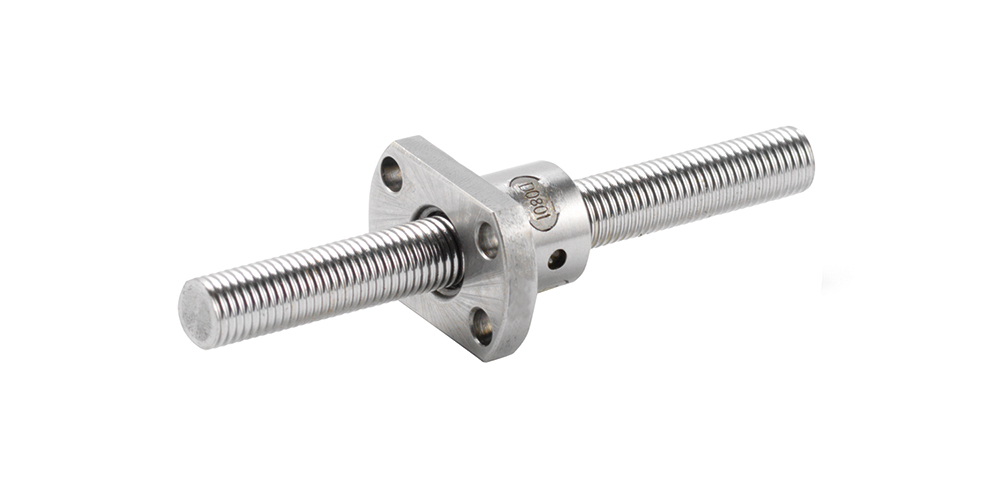

SFKR

STOCK ITEM
Match with Screw shaft: SCR.
Standard nuts are with scrapers. Other types on request.

All other dimensions in mm
Download PDF
Technical Drawing
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
2 1110 N 2240 N
尺寸對照
詢價
1 1610 N 4030 N
尺寸對照
詢價
1 2430 N 5690 N
尺寸對照
詢價
1 3340 N 9060 N
尺寸對照
詢價
1 3540 N 10530 N
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all d0 x Lead A B L D H
6 x 1 24 3.50 15 12 16
尺寸對照
詢價
8 x 1 27 4 16 14 18
尺寸對照
詢價
10 x 2 35 5 28 18 22
尺寸對照
詢價
12 x 2 37 5 28 20 24
尺寸對照
詢價
14 x 2 40 6 23 21 26
尺寸對照
詢價
Technical Drawing
Designation Select all X W
3.40 18
尺寸對照
詢價
3.40 21
尺寸對照
詢價
4.50 27
尺寸對照
詢價
4.50 29
尺寸對照
詢價
5.50 31
尺寸對照
詢價
Designation Select all Ball diameter Turns x circuits
0.80 1 x 3
尺寸對照
詢價
0.80 1 x 4
尺寸對照
詢價
1.20 1 x 3
尺寸對照
詢價
1.20 1 x 4
尺寸對照
詢價
1.20 1 x 4
尺寸對照
詢價
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM

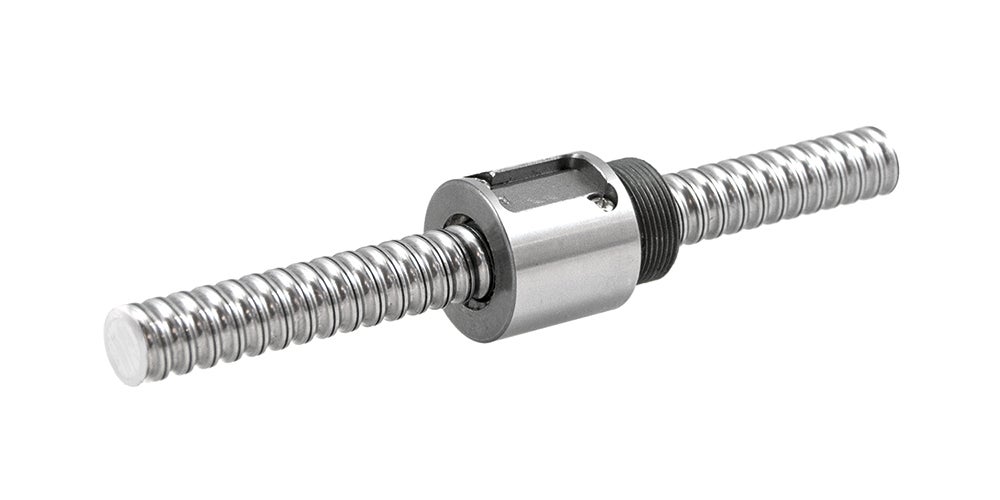

    Ball nut, miniature, cylindrical with thread for right lead (SR) screw
