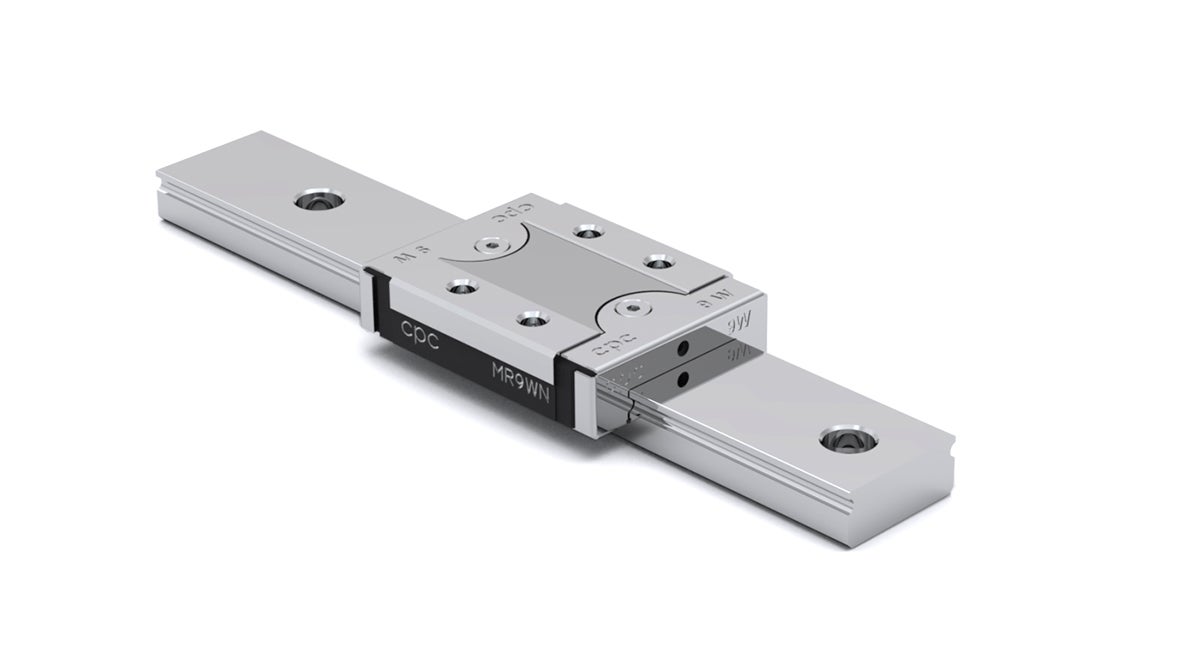

MR-W ZUE Series
Wide block with reinforcement plate and integrated lubrication
Wide MR-W Rail
Tapped from above.
This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.
Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload
Accuracy
N: Normal (Rollco standard)
H: High
P: Precision
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.
Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload
Accuracy
N: Normal (Rollco standard)
H: High
P: Precision
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
Product Information

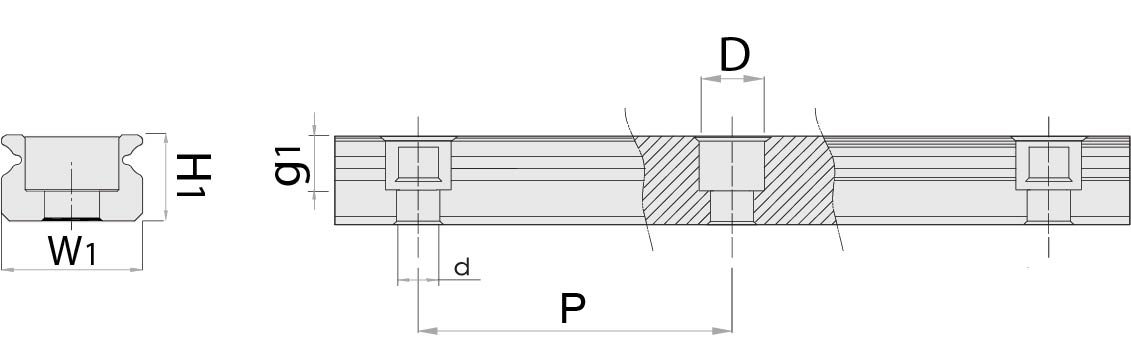

| Designation | Select all | Lead Time * | H1 | W1 | Hole Pitch (P) | D x d x g1 | Weight Rail (g/m) | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 2.6 | 4 | 10 | 2.8 x 1.8 x 1.0 | 69 |
|
||
|
|
2 | 2.7 | 6 | 15 | 4 x 2.4 x 1.5 | 105 |
|
||
|
|
1 | 4 | 10 | 20 | 5.5 x 3 x 1.6 | 280 |
|
||
|
|
1 | 5.2 | 14 | 30 | 6 x 3.5 x 3.5 | 516 |
|
||
|
|
1 | 7.3 | 18 | 30 | 6 x 3.5 x 4.5 | 940 |
|
||
|
|
1 | 8.5 | 24 | 40 | 8 x 4.5 x 4.5 | 1472 |
|
||
|
|
1 | 9.5 | 42 | 40 | 8 x 4.5 x 4.5 | 2818 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-

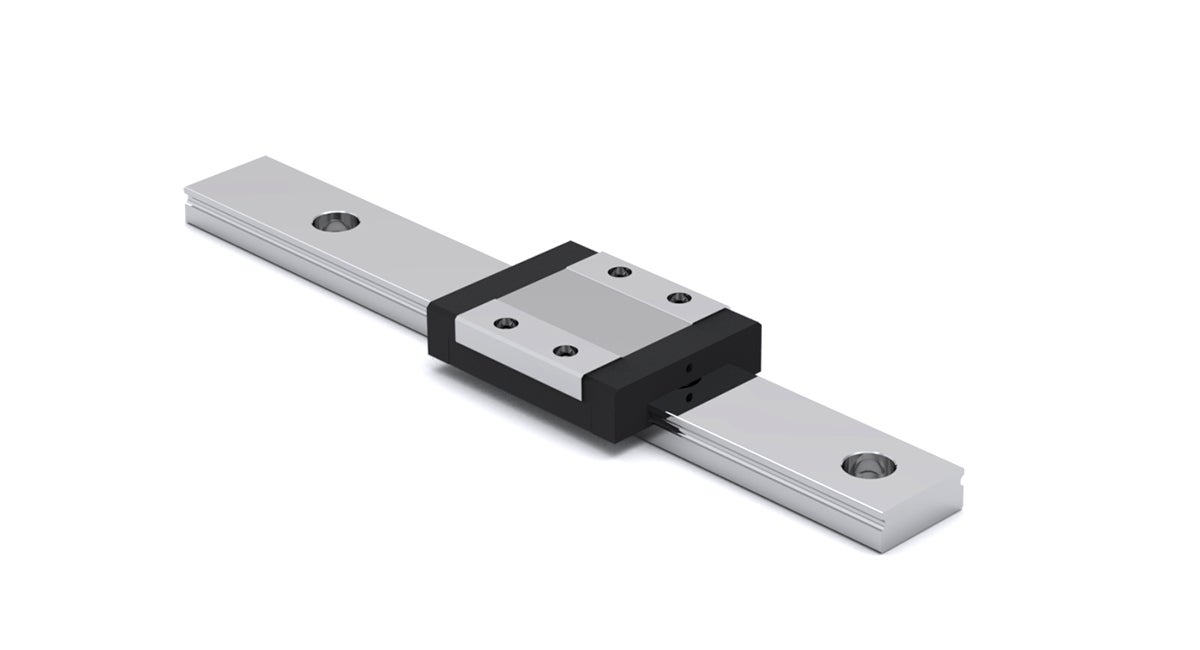

MR-W SS Series
