Wide MRU-W Rail

Tapped from bottom.

Dimensions in mm.

Product Information

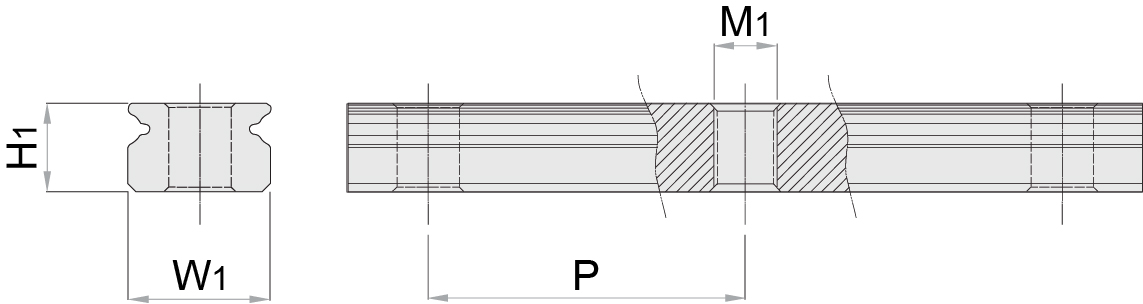

Technical Drawing
Designation Lead Time * H1 W1 Hole Pitch (P) M1 Weight Rail
2 2.60 4 10 - 69 g/m 詢價
2 2.70 6 15 M3x0,5 105 g/m 詢價
2 4 10 20 M3x0,5 280 g/m 詢價
2 5.20 14 30 M4x0,7 516 g/m 詢價
1 7.30 18 30 M4x0,7 940 g/m 詢價
1 8.50 24 40 M5x0,8 1472 g/m 詢價
1 9.50 42 40 M5x0,8 2818 g/m 詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
