DF Seal High Dust Proof

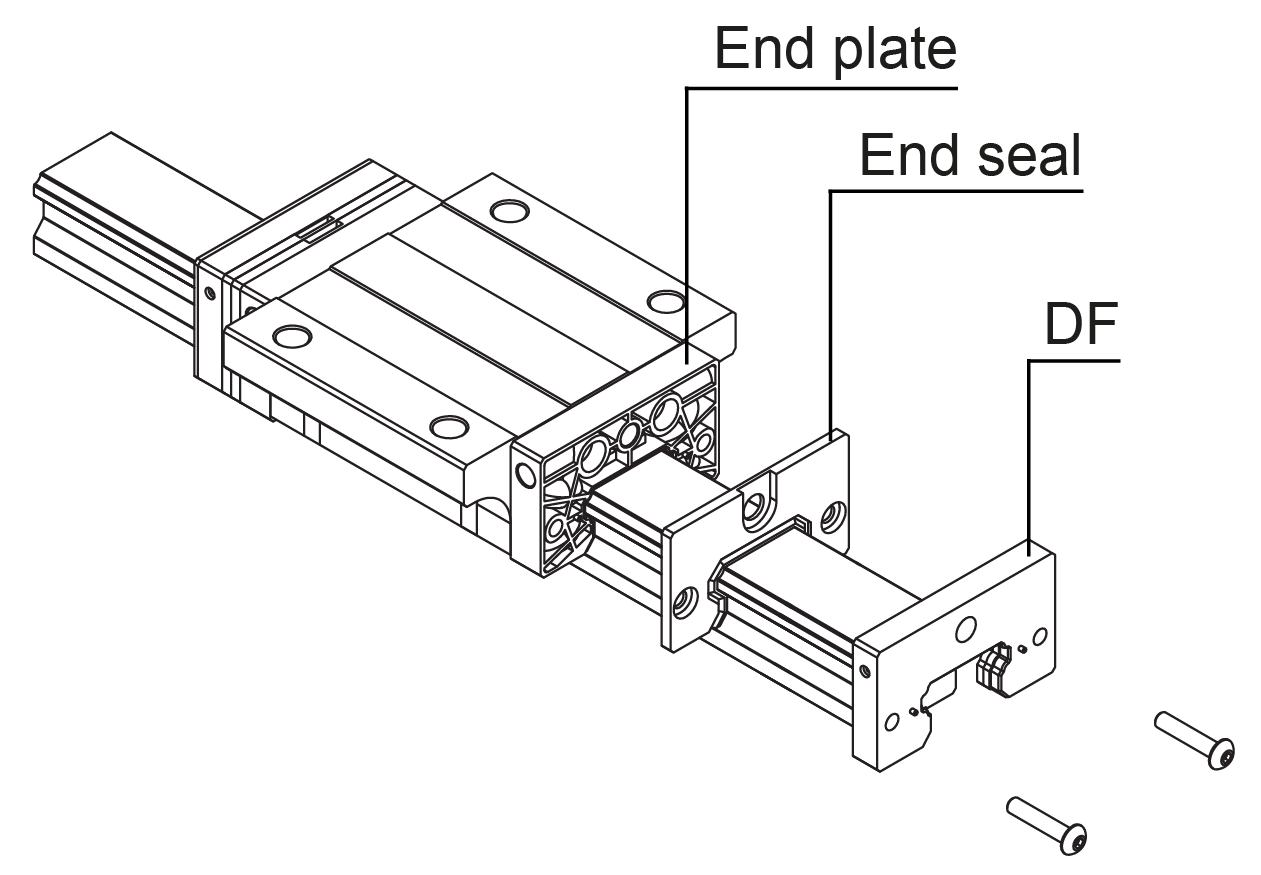

To protect the linear rail system from fine foreign matter, the high dust-proof DF seal can be used.

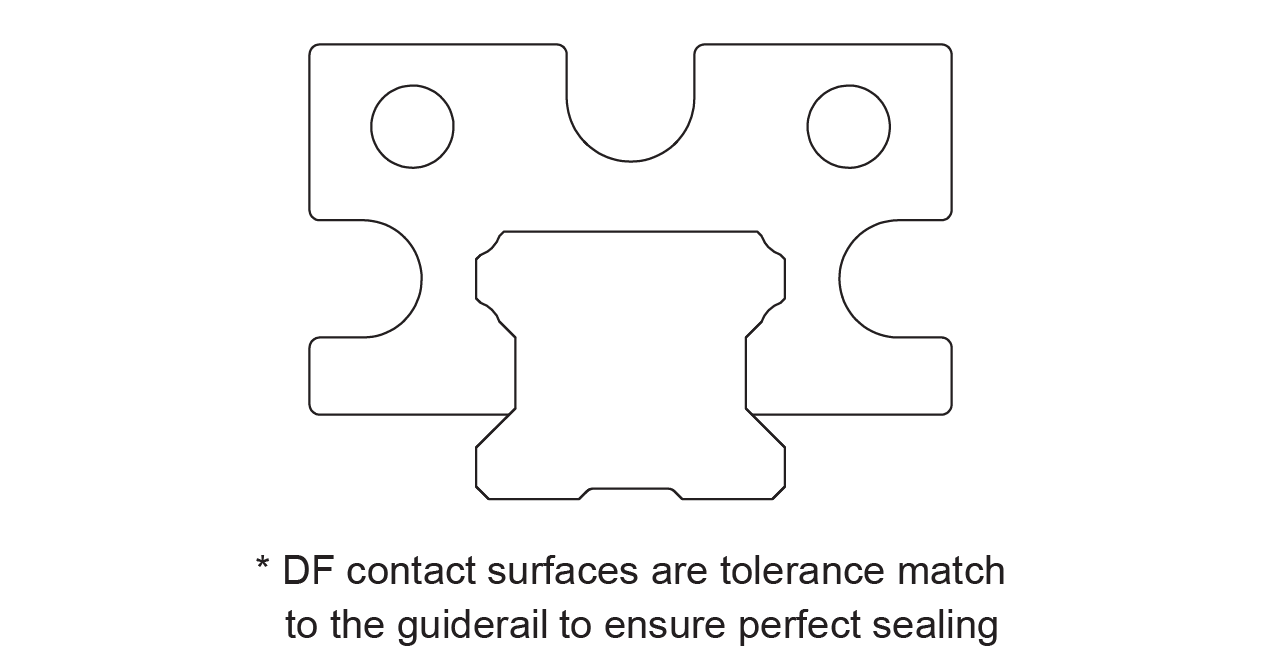

A high density felt in the DF unit contact the entire rail profile section, leaving no gaps for dust and debris to enter the block.
For DF to be the most effective, it is recommended to either combine it with bottom mounted rails SBI-B or using
the option ST Stainless Dustproof Tape.
Dimensions in mm.
Read more
A high density felt in the DF unit contact the entire rail profile section, leaving no gaps for dust and debris to enter the block.
For DF to be the most effective, it is recommended to either combine it with bottom mounted rails SBI-B or using
the option ST Stainless Dustproof Tape.
Dimensions in mm.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | Block Type | W | t | H | D |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL, FV, SV | 33.4 | 7 | 20.2 | 4 | ||
|
|
|
1 | FL, FLL, SL, SLL | 43.4 | 7 | 24.6 | 6.5 | ||
|
|
|
1 | CL, CLL, FV, SV | 43.4 | 7 | 22.6 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 47 | 7 | 29.7 | 6.5 | ||
|
|
|
2 | CL, CLL, FV, SV | 47 | 7 | 26.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 59 | 8 | 34.2 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 69 | 8 | 39.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 85 | 8 | 49.7 | 10.5 | ||
|
|
|
2 | FL, FLL, HL, HLL, SL, SLL | 98 | 9 | 56 | 10.5 | ||
|
|
|
2 | FL, FLL, SL, SLL | 123 | 9 | 69 | 10.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
