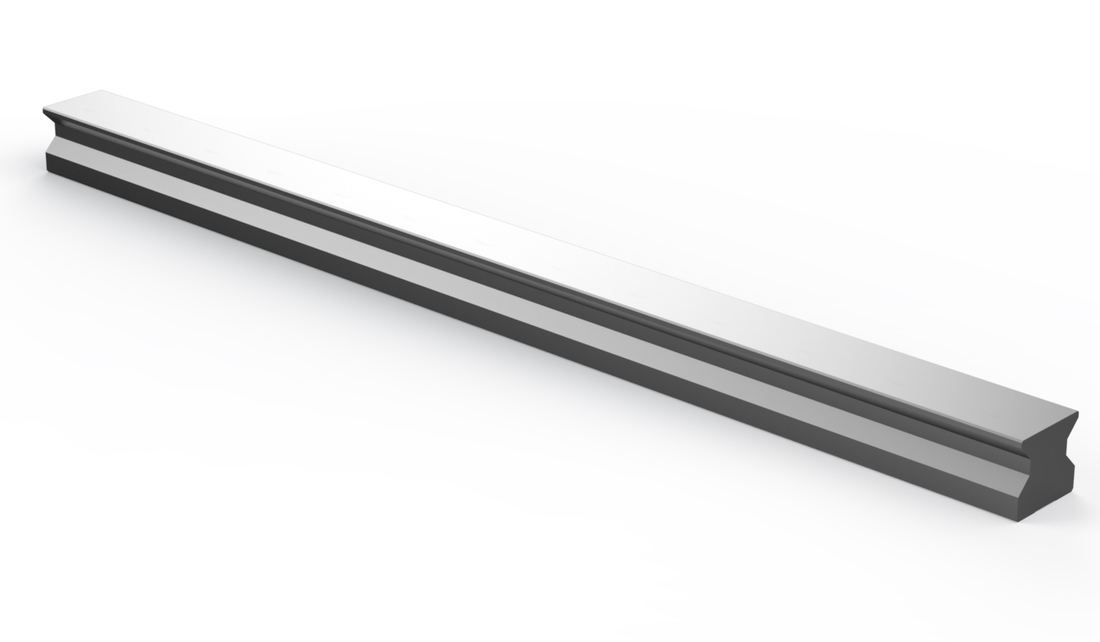

Bottom Mounting Rail RMG-B

Rails with holes threaded from the bottom and induction hardened raceways.

Very high load capacity, stiffness and precision.

Dimensions in mm. (According to the DIN 645/I standards.)

Product Information

Linear_Roller_Guide_Technical_Information.pdf

Linear_Roller_Guide_Order_Codes.pdf

下載PDF檔 code.product.loadingpdf

+ 加入 PDF 目錄

3D模擬圖 / 詢價 Download CAD / 詢價

Designation	Get quote	Lead Time *	Weight (kg/m)
RMG55-B	Request quote	2	15.2
RMG25-B	Request quote	2	3.4
RMG65-B	Request quote	2	22.5
RMG35-B	Request quote	2	6.5
RMG45-B	Request quote	2	10.7

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	Get quote	H1	W1	d x g1	Hole Pitch (P)
RMG55-B	Request quote	47.8	53	M14 x 22	60
RMG25-B	Request quote	24.35	23	M6 x 12	30
RMG65-B	Request quote	55	63	M16 x 25	75
RMG35-B	Request quote	32	34	M8 x 15	40
RMG45-B	Request quote	39.85	45	M12 x 19	52.5
