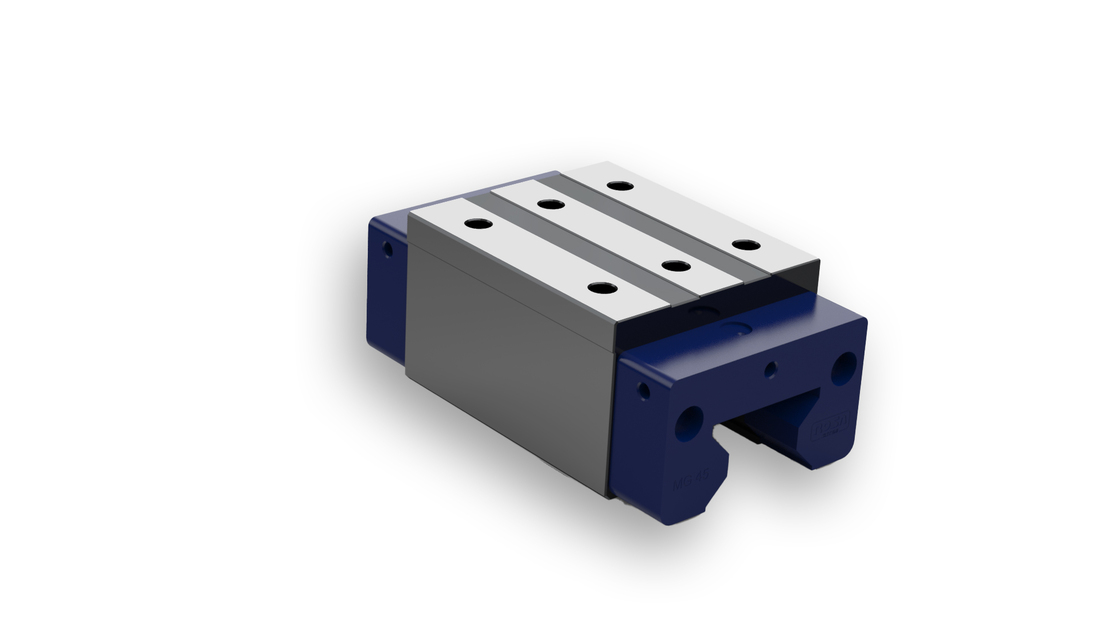

Narrow Block Type SC

STOCK ITEM
The Rollco Roller Guides are highly developed solutions for the high-tech industry.

The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
下載PDF檔 code.product.loadingpdf
+ 加入 PDF 目錄

Product Information

Linear_Roller_Guide_Technical_Information.pdf
Linear_Roller_Guide_Order_Codes.pdf
Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) CAD Compare
/storage/C5102B880B45CA602D98D41C39426F848E91DA95EC2624D0E0AAE0CFF7DC1EDF/363198ba7c2a4c5f87a1f4e6c585dae9/stp/media/1165083e5d2845ce97899d0c6ca3819a/CAD_RMG25SC_NarrowBlockTypeSC_Rollco.stp 1 28700 57600 863 570 570 431 285 285
Get quote
/storage/F304AC26A93B217D97194897C27843489BB3B07286F1B11CCC71C41F007C776D/5e8509da7297446f9391d92becf654e8/stp/media/4b1ab99dd7544f948af6c4b70302ee35/CAD_RMG35SC_NarrowBlockTypeSC_Rollco.stp 1 53300 99000 2192 1235 1235 1179 674 674
Get quote
/storage/8477AE342F17336555F058D9FB6C8B55EE68A9AE4D8A1313DD6BC91713FFFCA8/5b09260b15a3416f98b5b06f5c46f013/stp/media/1f9767a65f434734a95f5fd0d9df757f/CAD_RMG45SC_NarrowBlockTypeSC_Rollco.stp 1 95000 184000 5070 2979 2979 2617 1538 1538
Get quote
/storage/1057933A60E12A87A8BB4EED4BD90F852D8D078C9497D3BBF825FD02D21F4121/e81e216770e84edba4e4659ea0870cae/stp/media/75b6a772aad446269218fc747cd1bfb0/CAD_RMG55SC_NarrowBlockTypeSC_Rollco.stp 2 132600 256000 8707 4981 4981 4503 2576 2576
Get quote
/storage/6D522268D2D59F0D152A54595FD10422E26C3CAA3BA6B51CD9EEE313E138EE98/a5fb37dd860048bf9450e2dd348e580a/stp/media/7fb7fc3d4e9447fa8454486d81ada13c/CAD_RMG65SC_NarrowBlockTypeSC_Rollco.stp 2 212000 414000 15780 10140 10140 8100 5210 5210
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2 CAD Compare
/storage/C5102B880B45CA602D98D41C39426F848E91DA95EC2624D0E0AAE0CFF7DC1EDF/363198ba7c2a4c5f87a1f4e6c585dae9/stp/media/1165083e5d2845ce97899d0c6ca3819a/CAD_RMG25SC_NarrowBlockTypeSC_Rollco.stp 40 48 90.2 12.5
Get quote
/storage/F304AC26A93B217D97194897C27843489BB3B07286F1B11CCC71C41F007C776D/5e8509da7297446f9391d92becf654e8/stp/media/4b1ab99dd7544f948af6c4b70302ee35/CAD_RMG35SC_NarrowBlockTypeSC_Rollco.stp 55 70 119.3 18
Get quote
/storage/8477AE342F17336555F058D9FB6C8B55EE68A9AE4D8A1313DD6BC91713FFFCA8/5b09260b15a3416f98b5b06f5c46f013/stp/media/1f9767a65f434734a95f5fd0d9df757f/CAD_RMG45SC_NarrowBlockTypeSC_Rollco.stp 70 86 147.3 20.5
Get quote
/storage/1057933A60E12A87A8BB4EED4BD90F852D8D078C9497D3BBF825FD02D21F4121/e81e216770e84edba4e4659ea0870cae/stp/media/75b6a772aad446269218fc747cd1bfb0/CAD_RMG55SC_NarrowBlockTypeSC_Rollco.stp 80 100 173 23.5
Get quote
/storage/6D522268D2D59F0D152A54595FD10422E26C3CAA3BA6B51CD9EEE313E138EE98/a5fb37dd860048bf9450e2dd348e580a/stp/media/7fb7fc3d4e9447fa8454486d81ada13c/CAD_RMG65SC_NarrowBlockTypeSC_Rollco.stp 90 126 221.8 31.5
Get quote
Designation Select all P2 P1 CAD Compare
/storage/C5102B880B45CA602D98D41C39426F848E91DA95EC2624D0E0AAE0CFF7DC1EDF/363198ba7c2a4c5f87a1f4e6c585dae9/stp/media/1165083e5d2845ce97899d0c6ca3819a/CAD_RMG25SC_NarrowBlockTypeSC_Rollco.stp 35 35
Get quote
/storage/F304AC26A93B217D97194897C27843489BB3B07286F1B11CCC71C41F007C776D/5e8509da7297446f9391d92becf654e8/stp/media/4b1ab99dd7544f948af6c4b70302ee35/CAD_RMG35SC_NarrowBlockTypeSC_Rollco.stp 50 50
Get quote
/storage/8477AE342F17336555F058D9FB6C8B55EE68A9AE4D8A1313DD6BC91713FFFCA8/5b09260b15a3416f98b5b06f5c46f013/stp/media/1f9767a65f434734a95f5fd0d9df757f/CAD_RMG45SC_NarrowBlockTypeSC_Rollco.stp 60 60
Get quote
/storage/1057933A60E12A87A8BB4EED4BD90F852D8D078C9497D3BBF825FD02D21F4121/e81e216770e84edba4e4659ea0870cae/stp/media/75b6a772aad446269218fc747cd1bfb0/CAD_RMG55SC_NarrowBlockTypeSC_Rollco.stp 75 75
Get quote
/storage/6D522268D2D59F0D152A54595FD10422E26C3CAA3BA6B51CD9EEE313E138EE98/a5fb37dd860048bf9450e2dd348e580a/stp/media/7fb7fc3d4e9447fa8454486d81ada13c/CAD_RMG65SC_NarrowBlockTypeSC_Rollco.stp 76 70
Get quote
Designation Select all W1 H1 P D x d x g1 Hole Pitch (P) CAD Compare
/storage/C5102B880B45CA602D98D41C39426F848E91DA95EC2624D0E0AAE0CFF7DC1EDF/363198ba7c2a4c5f87a1f4e6c585dae9/stp/media/1165083e5d2845ce97899d0c6ca3819a/CAD_RMG25SC_NarrowBlockTypeSC_Rollco.stp 23 24.5 - 11 x 7 x 11.5 30
Get quote
/storage/F304AC26A93B217D97194897C27843489BB3B07286F1B11CCC71C41F007C776D/5e8509da7297446f9391d92becf654e8/stp/media/4b1ab99dd7544f948af6c4b70302ee35/CAD_RMG35SC_NarrowBlockTypeSC_Rollco.stp 34 32 40 15 x 9 x 17 -
Get quote
/storage/8477AE342F17336555F058D9FB6C8B55EE68A9AE4D8A1313DD6BC91713FFFCA8/5b09260b15a3416f98b5b06f5c46f013/stp/media/1f9767a65f434734a95f5fd0d9df757f/CAD_RMG45SC_NarrowBlockTypeSC_Rollco.stp 45 40 52.5 20 x 14 x 19 -
Get quote
/storage/1057933A60E12A87A8BB4EED4BD90F852D8D078C9497D3BBF825FD02D21F4121/e81e216770e84edba4e4659ea0870cae/stp/media/75b6a772aad446269218fc747cd1bfb0/CAD_RMG55SC_NarrowBlockTypeSC_Rollco.stp 53 48 60 24 x 16 x 22 -
Get quote
/storage/6D522268D2D59F0D152A54595FD10422E26C3CAA3BA6B51CD9EEE313E138EE98/a5fb37dd860048bf9450e2dd348e580a/stp/media/7fb7fc3d4e9447fa8454486d81ada13c/CAD_RMG65SC_NarrowBlockTypeSC_Rollco.stp 63 55 75 26 x 18 x 26 -
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 S1 S4 T H1 Q CAD Compare
/storage/C5102B880B45CA602D98D41C39426F848E91DA95EC2624D0E0AAE0CFF7DC1EDF/363198ba7c2a4c5f87a1f4e6c585dae9/stp/media/1165083e5d2845ce97899d0c6ca3819a/CAD_RMG25SC_NarrowBlockTypeSC_Rollco.stp 90.2 48 62 33.5 12.5 M6 19 9 24.5 9.5
Get quote
/storage/F304AC26A93B217D97194897C27843489BB3B07286F1B11CCC71C41F007C776D/5e8509da7297446f9391d92becf654e8/stp/media/4b1ab99dd7544f948af6c4b70302ee35/CAD_RMG35SC_NarrowBlockTypeSC_Rollco.stp 119.3 70 80 48 18 M8 21.5 12 32 14.9
Get quote
/storage/8477AE342F17336555F058D9FB6C8B55EE68A9AE4D8A1313DD6BC91713FFFCA8/5b09260b15a3416f98b5b06f5c46f013/stp/media/1f9767a65f434734a95f5fd0d9df757f/CAD_RMG45SC_NarrowBlockTypeSC_Rollco.stp 147.3 86 101.3 60 20.5 M10 27.6 18 40 18
Get quote
/storage/1057933A60E12A87A8BB4EED4BD90F852D8D078C9497D3BBF825FD02D21F4121/e81e216770e84edba4e4659ea0870cae/stp/media/75b6a772aad446269218fc747cd1bfb0/CAD_RMG55SC_NarrowBlockTypeSC_Rollco.stp 173 100 120 67 23.5 M12 31.5 19 48 19
Get quote
/storage/6D522268D2D59F0D152A54595FD10422E26C3CAA3BA6B51CD9EEE313E138EE98/a5fb37dd860048bf9450e2dd348e580a/stp/media/7fb7fc3d4e9447fa8454486d81ada13c/CAD_RMG65SC_NarrowBlockTypeSC_Rollco.stp 221.8 126 159.8 78 31.5 M16 49 22 55 15
