Linear Unit RHL80

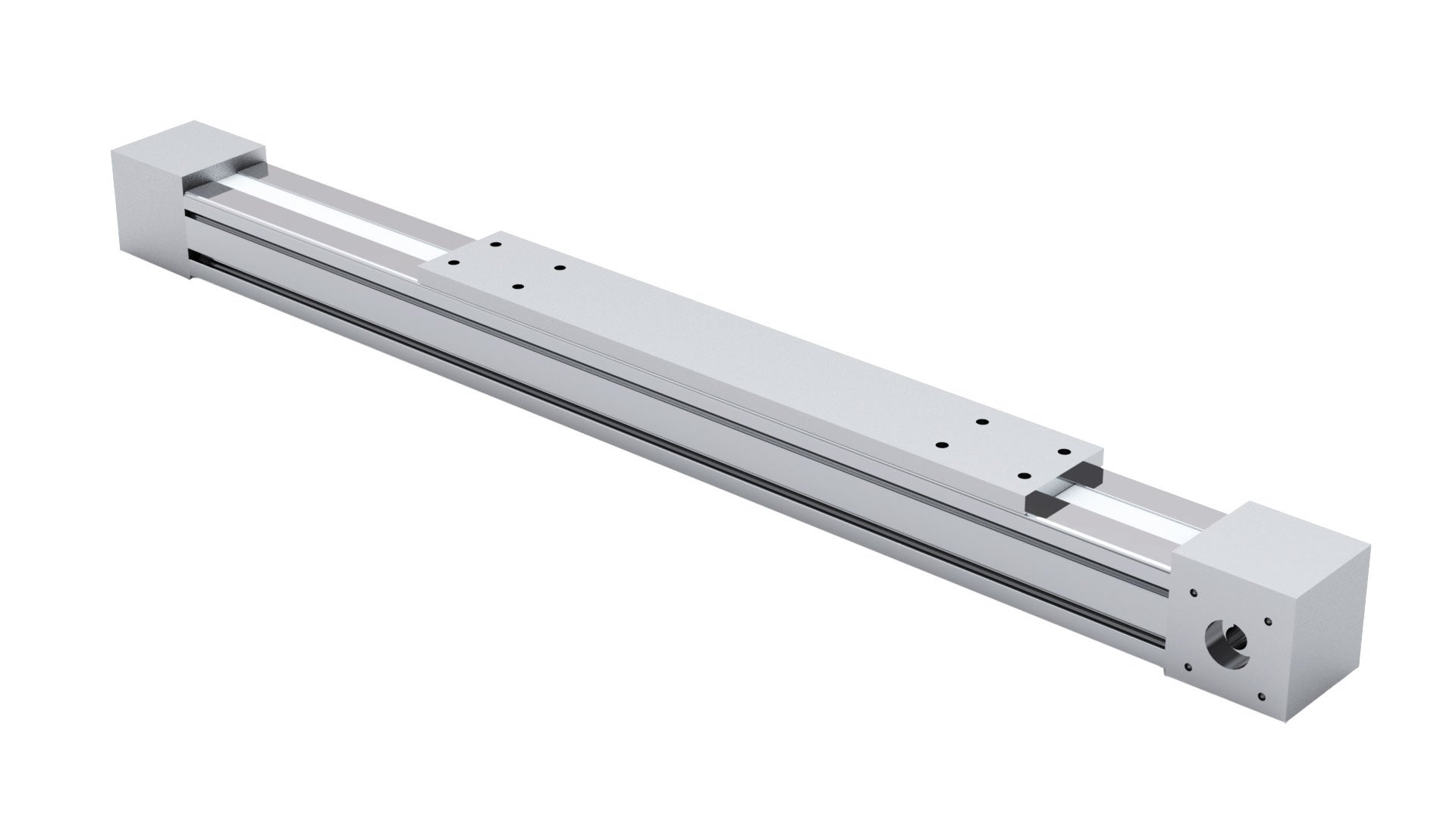

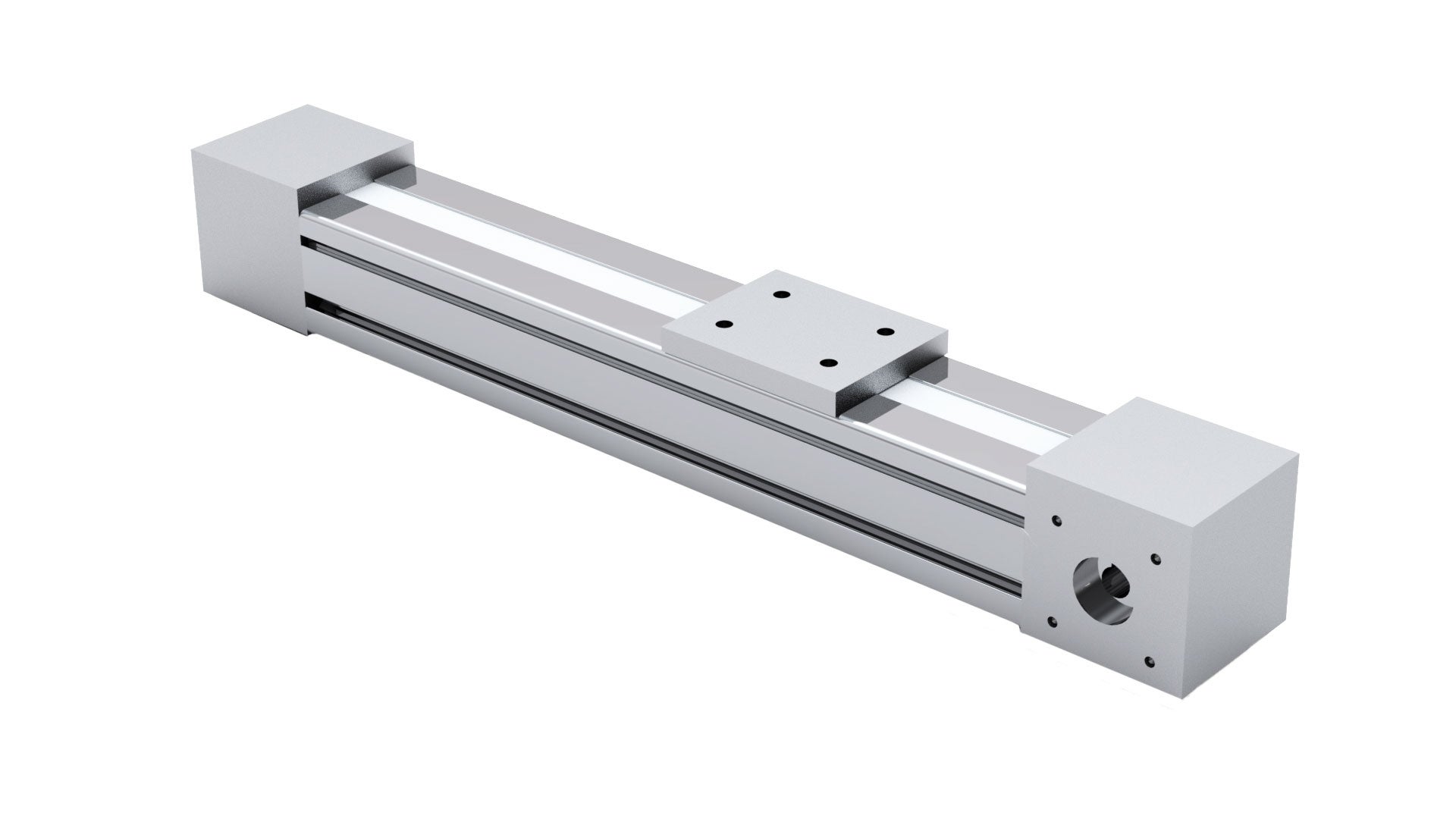

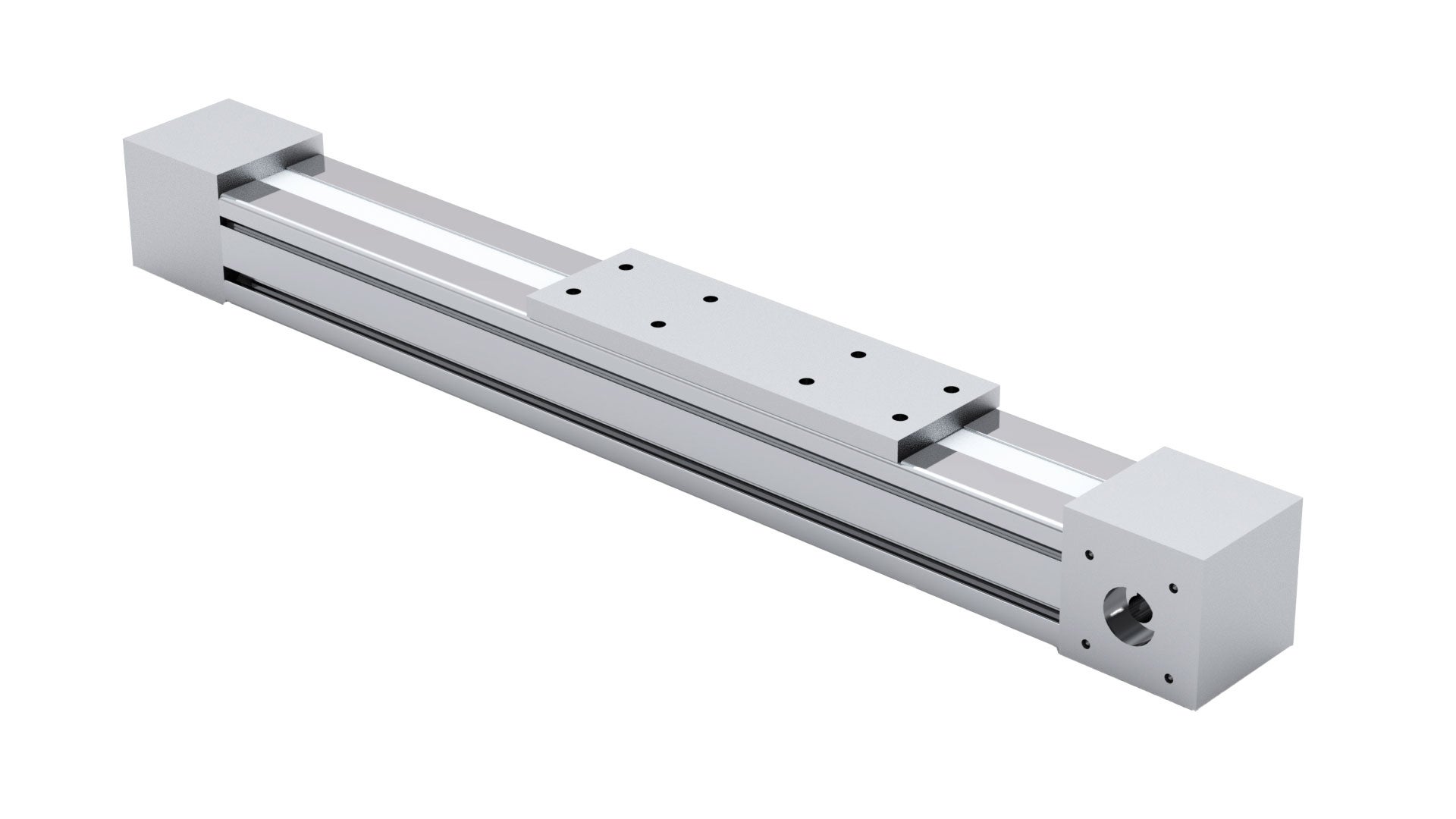

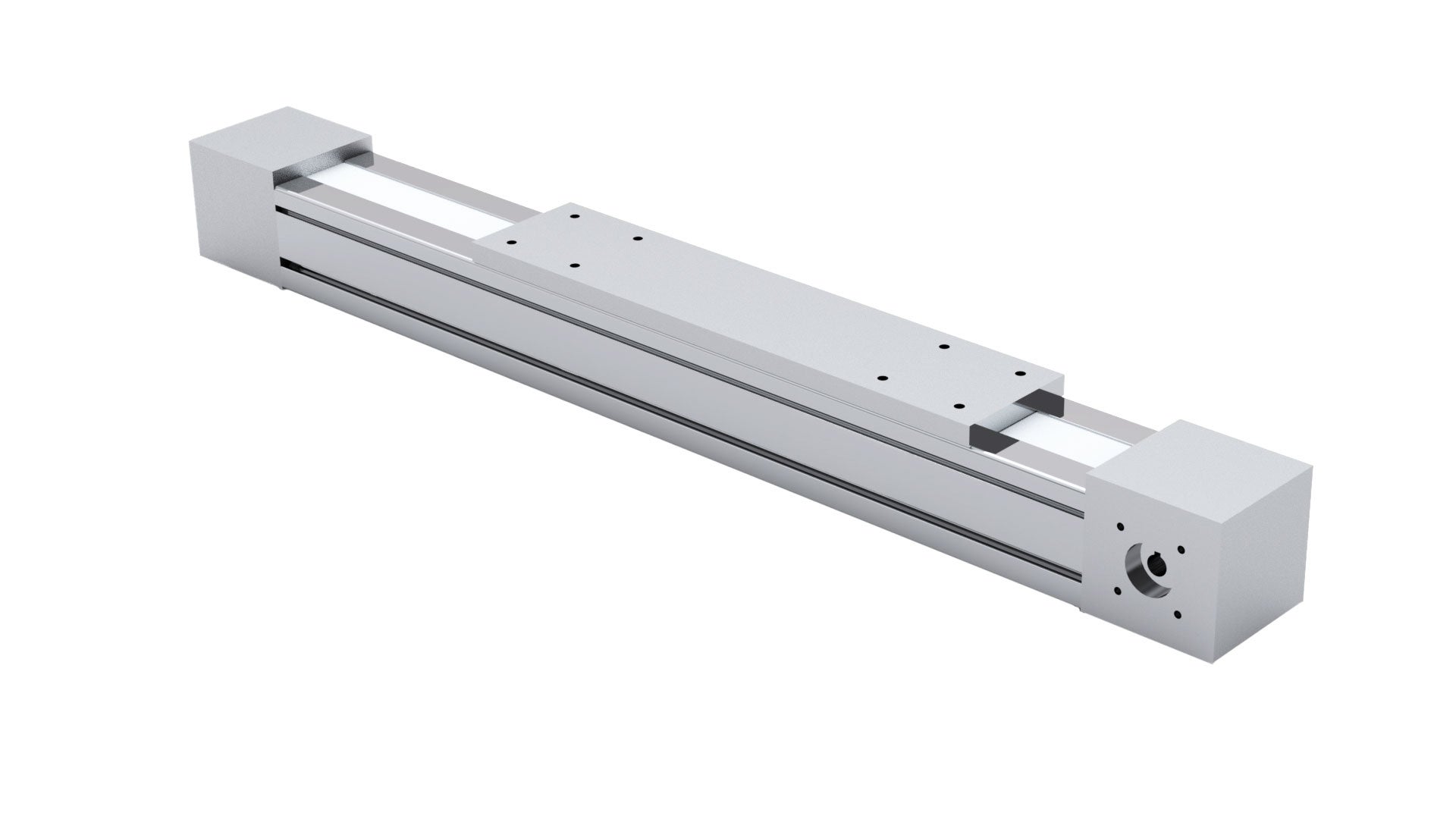

RHL is a complete linear unit with rail guide and toothed belt. The unit is delivered ready to mount and thereby saves both design and assembly time.
Linear Unit RHL is available in two sizes, RHL80 and RHL110. The units are based on aluminium profile and equipped with monorail, belt and pulleys. The stroke length is selectable per millimetre from zero up to 10 metres.

Rollco cut and assemble everything in our own workshop, which enables very short delivery times.

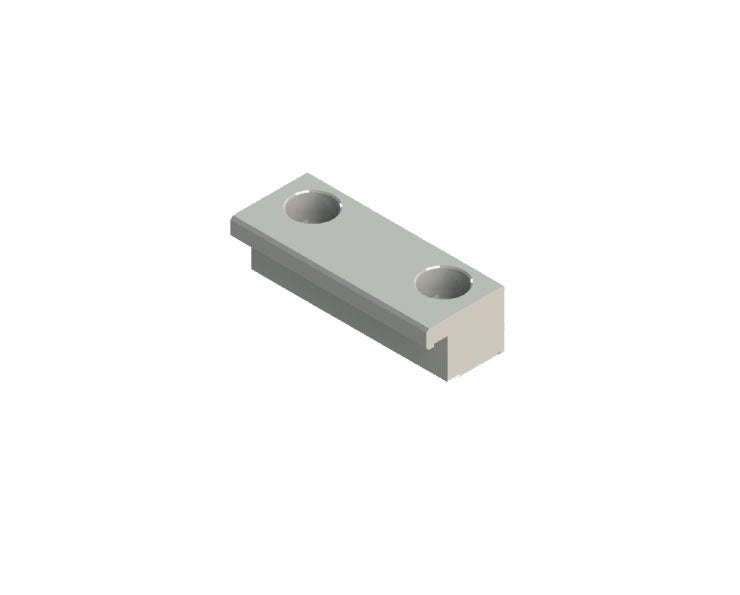

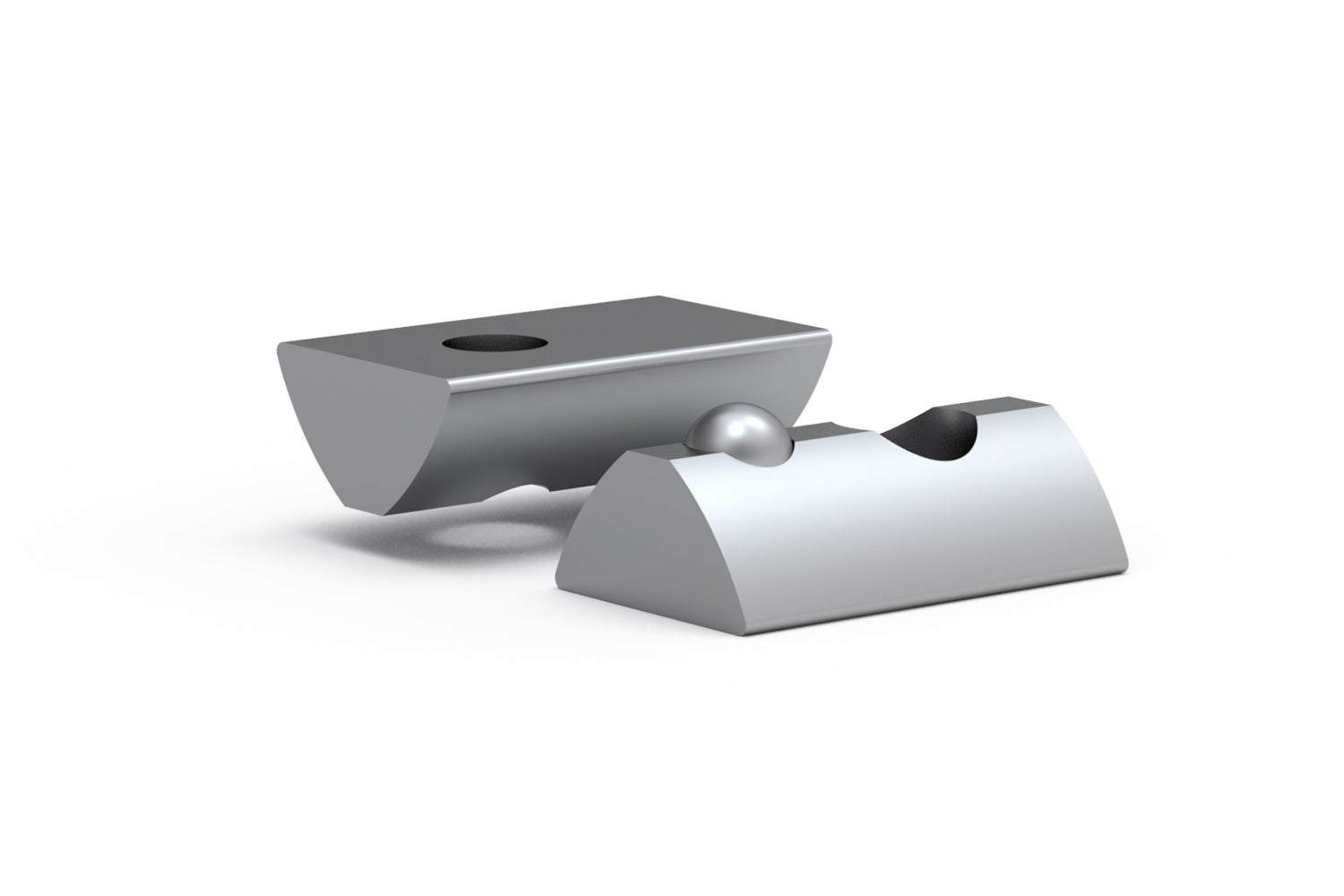

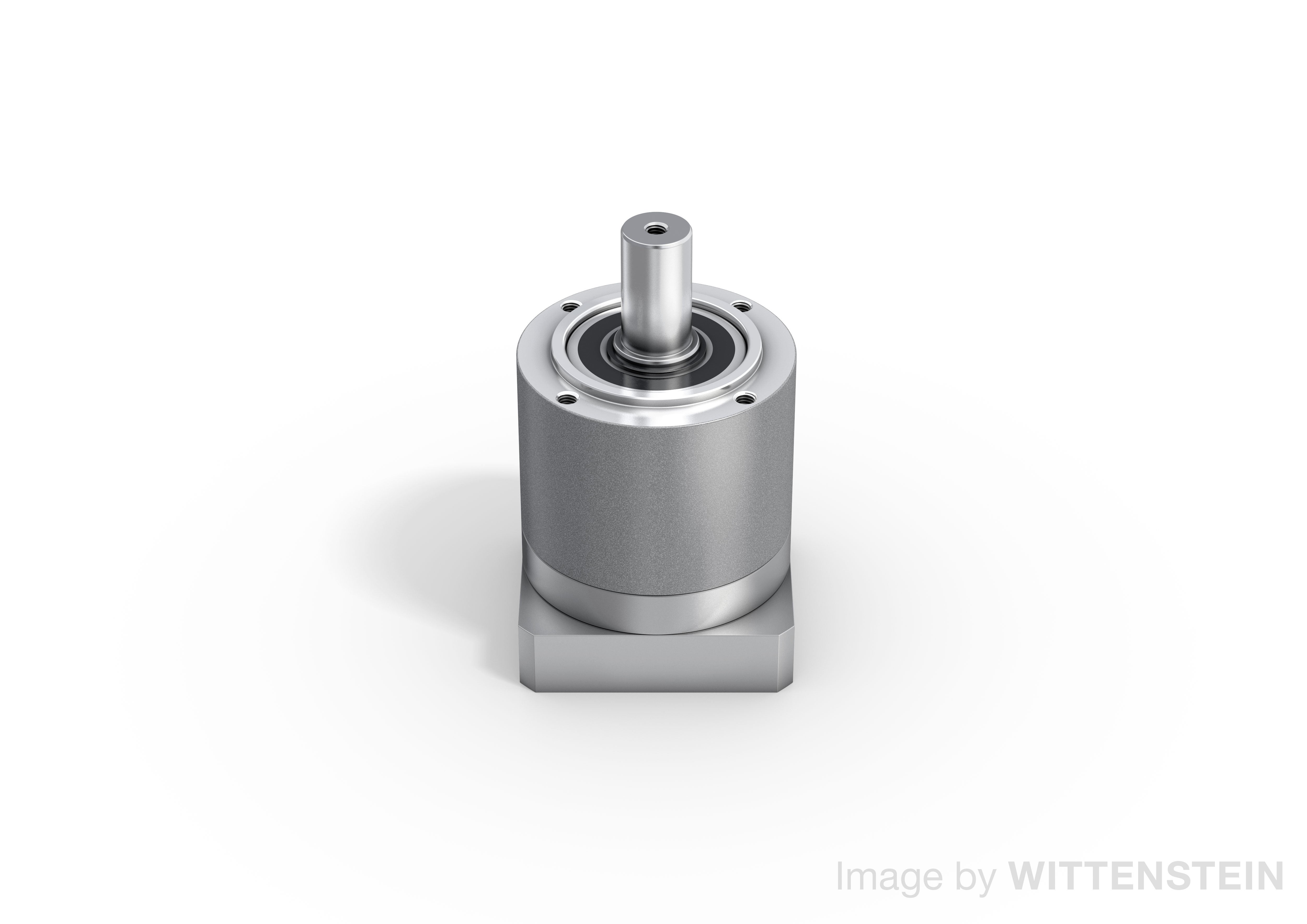

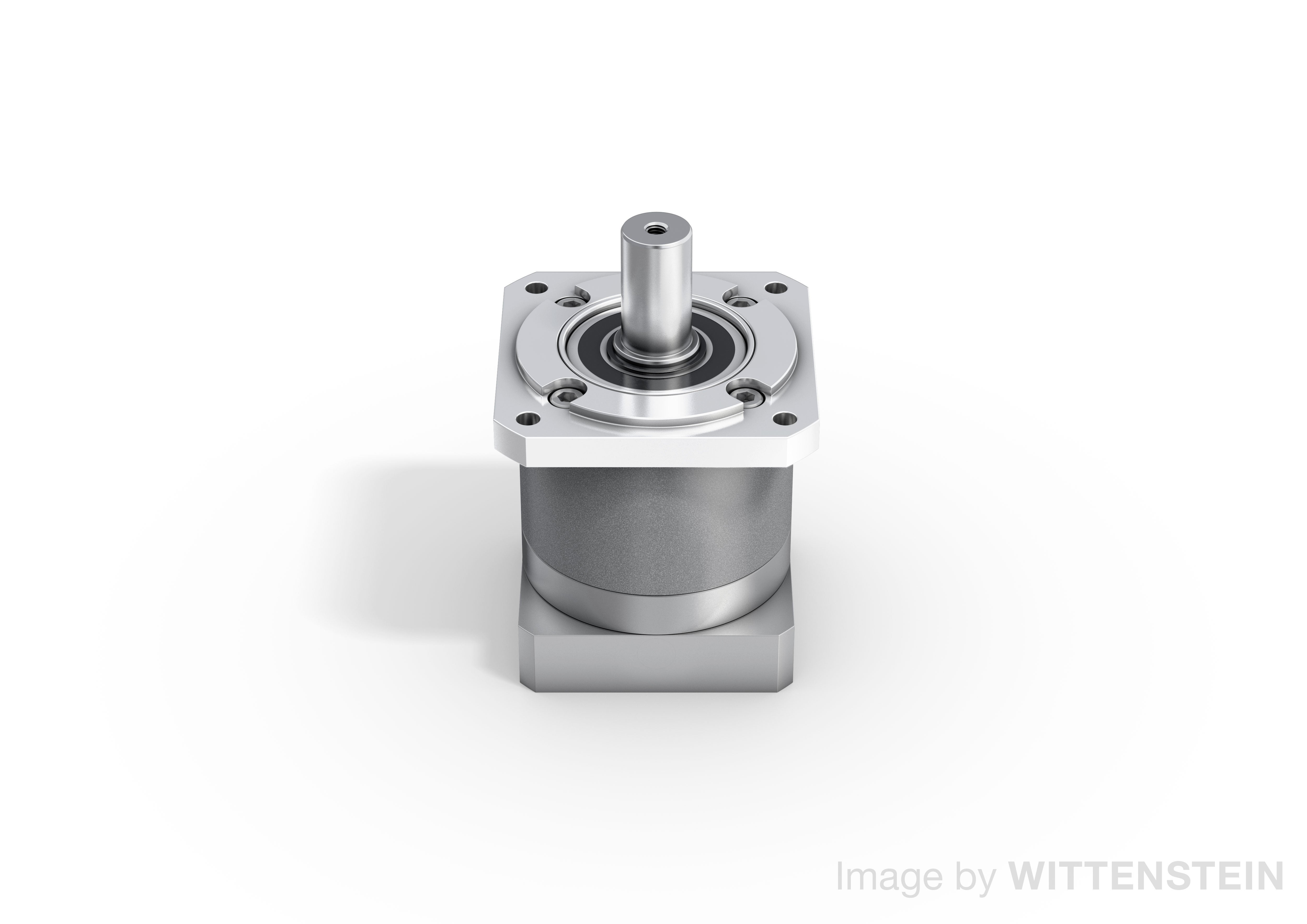

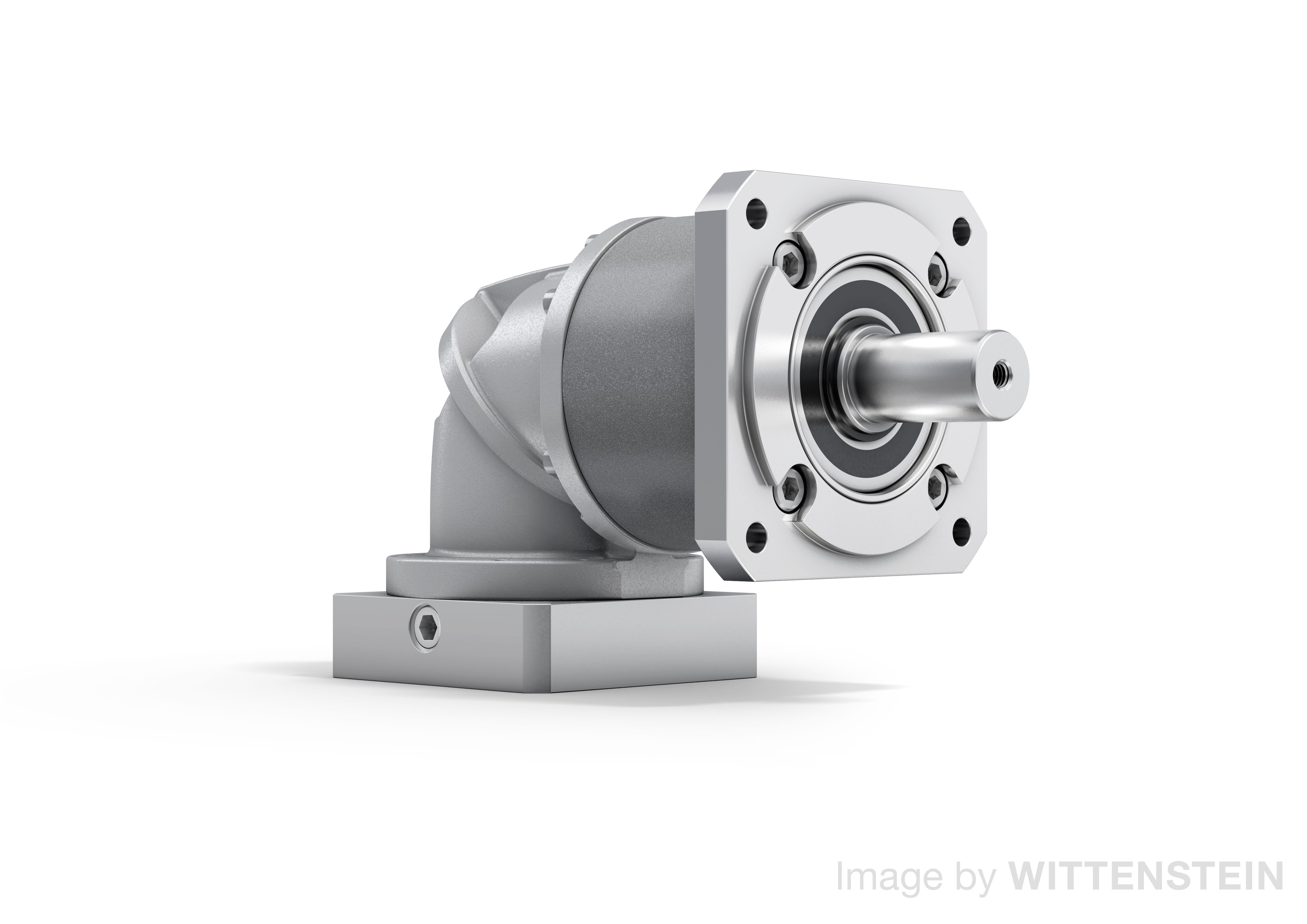

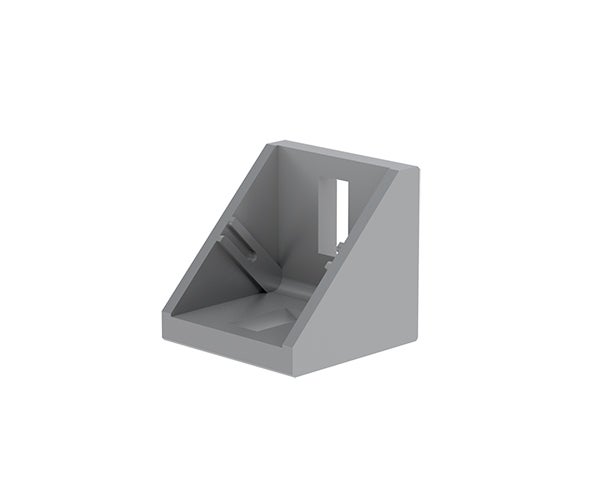

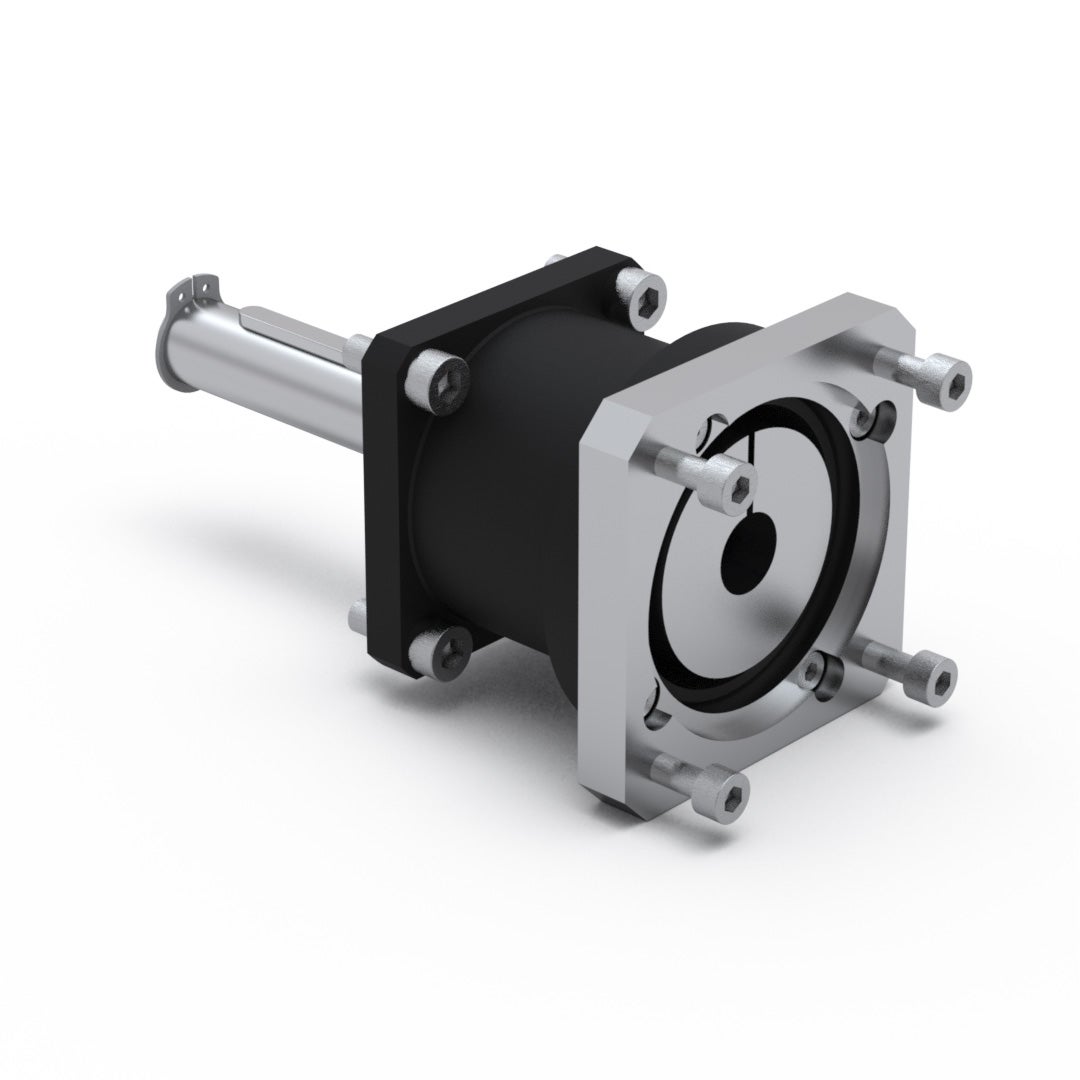

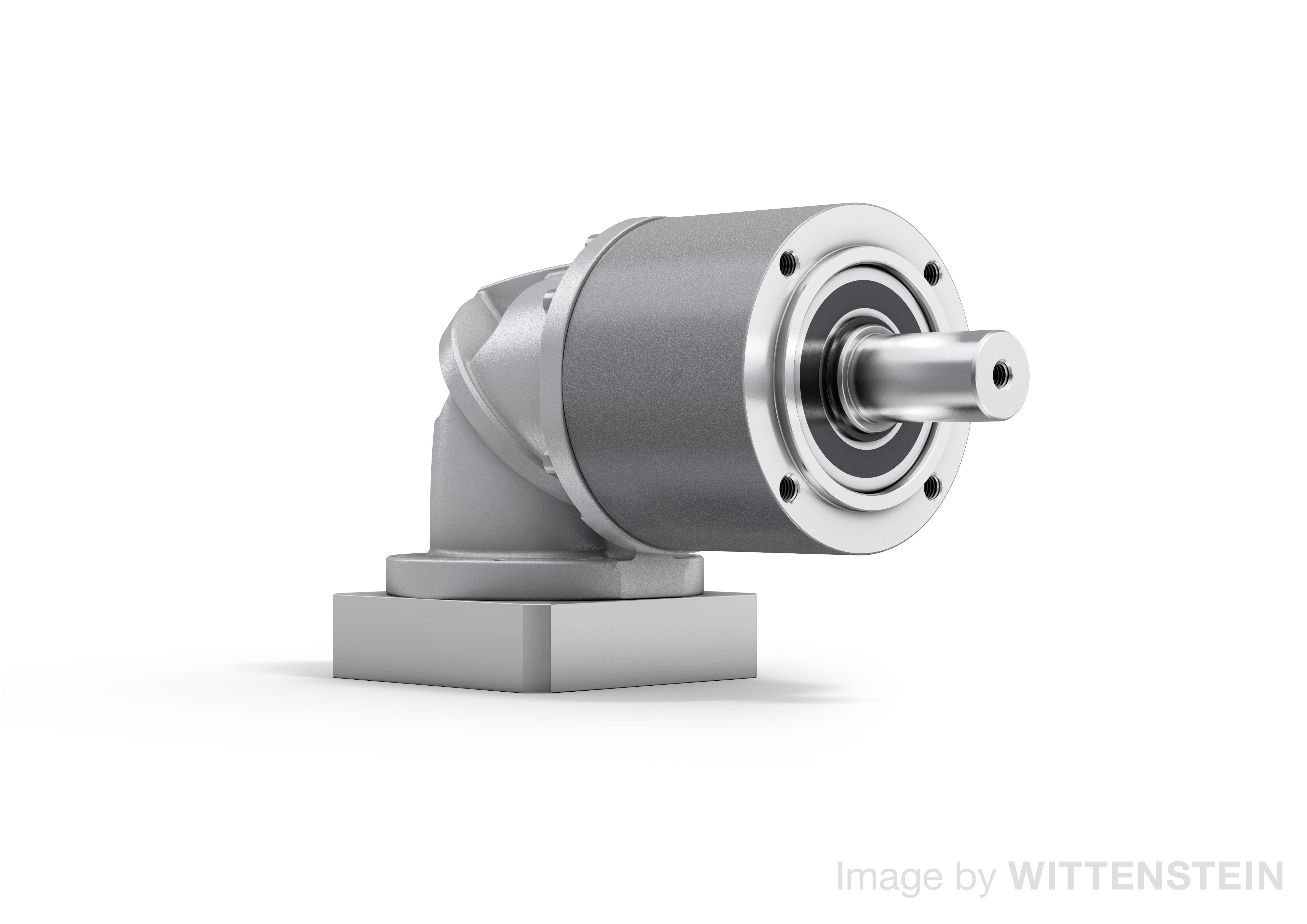

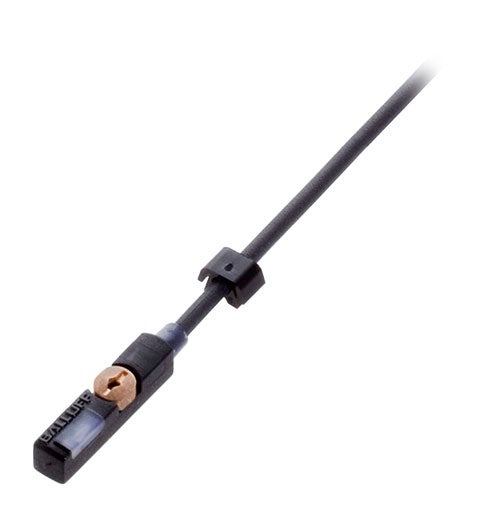

There are various accessories such as T-slots, angles and mounting plates in stock. We can also manufacture motor flanges and make other adjustments according to customer specifications.

Product characteristics:
Compact unit
Compatible with structural systems
Possible to use in X-Y-Z systems
Customized versions available upon request

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Lead Time * Mass of Linear Unit incl. slider - 0 mm stroke Mass of slider Add. mass of complete Unit for each +100 mm stroke Permissible load Fa Permissible load Fr Permissible moment Mx Permissible moment My Permissible moment Mz Slider length
2 5,2 kg 0,8 kg 0,8 kg 1000 N 500 N 50 Nm 50 Nm 50 Nm 100 詢價
2 7,4 kg 1,7 kg 0,8 kg 2000 N 1000 N 100 Nm 200 Nm 200 Nm 250 詢價
2 10,1 kg 2,6 kg 0,8 kg 2000 N 1000 N 100 Nm 450 Nm 450 Nm 500 詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

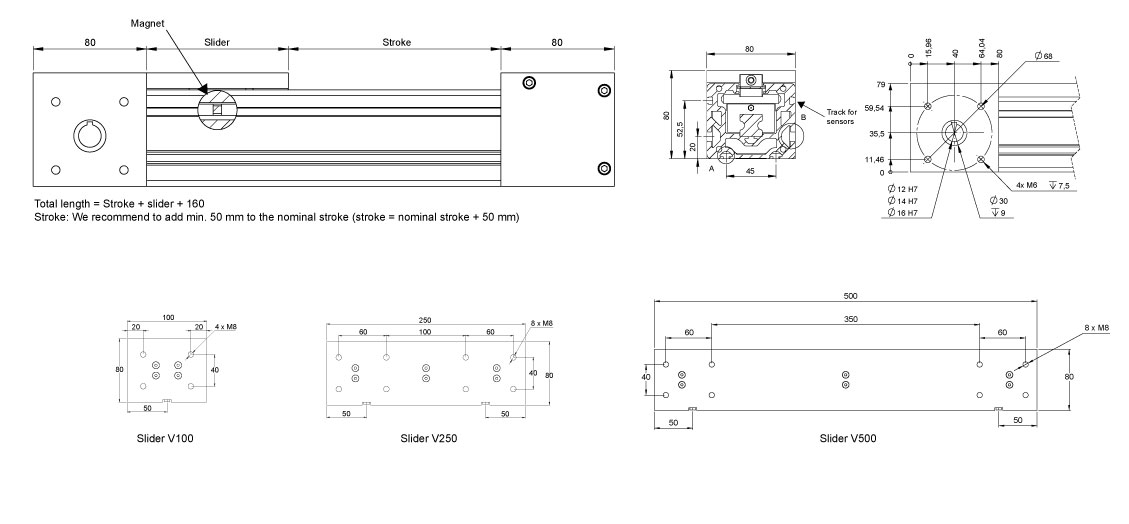

Technical Drawing
Designation Max. Speed Max. drive torque Belt type Belt width Pulley radius Tooth pitch Max traction load Belt breaking strength No load torque
2,5 m/s 17 Nm AT 5 25 28.65 5 600 N 6370 N 1 Nm 詢價
2,5 m/s 17 Nm AT 5 25 28.65 5 600 N 6370 N 1 Nm 詢價
2,5 m/s 17 Nm AT 5 25 28.65 5 600 N 6370 N 1 Nm 詢價
