MS - Mechanical Switch

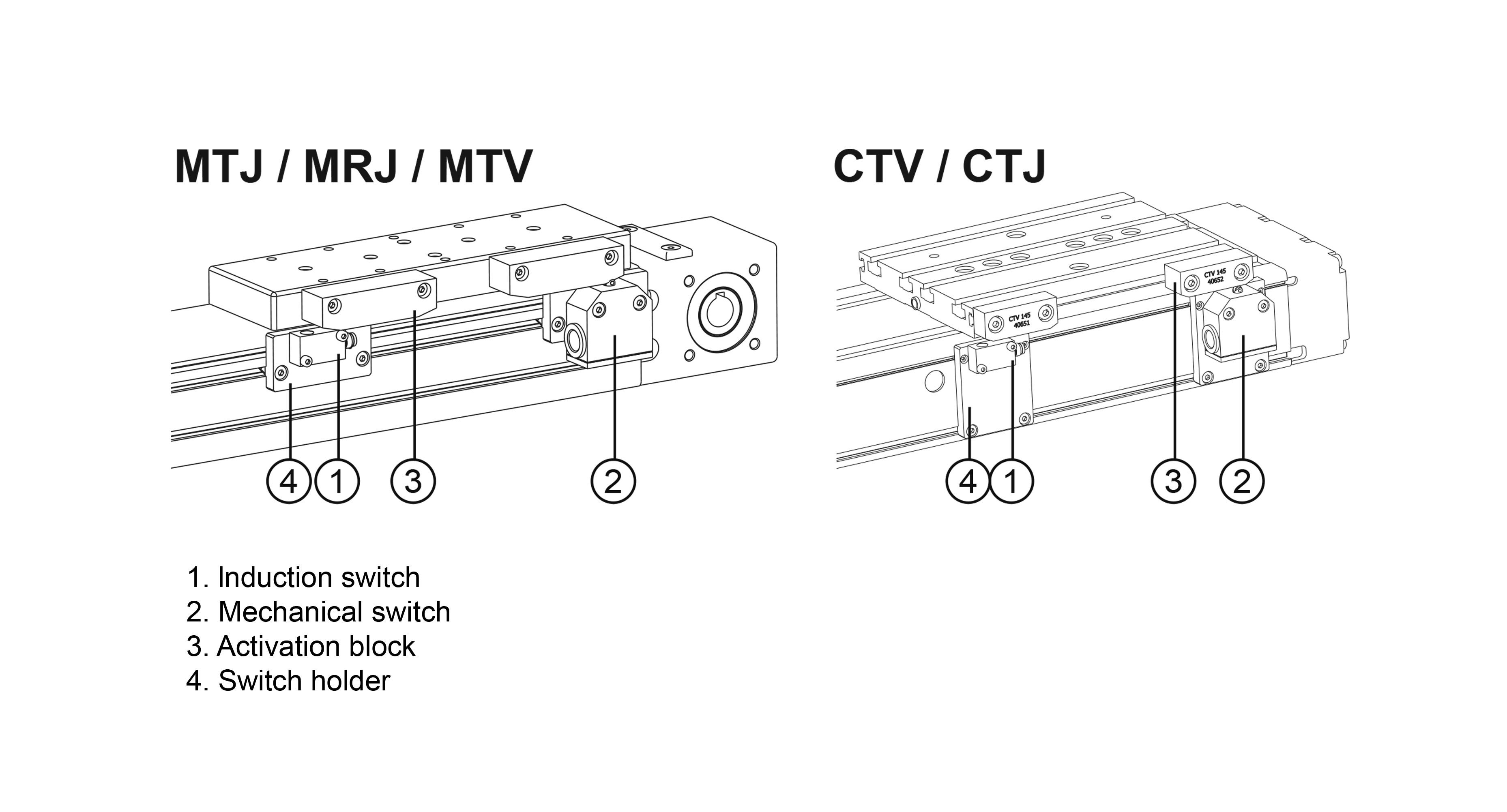

Mounting and using the induction and mechanical switch, can be done only if the CTV and CTJ series linear units are delivered with connection plates.
Contact Rollco for CAD-files.

Dimensions in mm.
Download PDF

Product Information

Protection class IEC 60529: IP67
Ambient temperature: -5°C ... +80°C
Operating point accuracy: ± 0.05 mm
Approach speed max.: 45 m/min
Approach speed min.: 0,01 m/min
Switching contact: 1 changeover
Switching principle: Snap-action
Rated voltage: 250 V AC
: 10 mA
Switching voltage: 24 V DC
Cable entry: M12 x 1,5

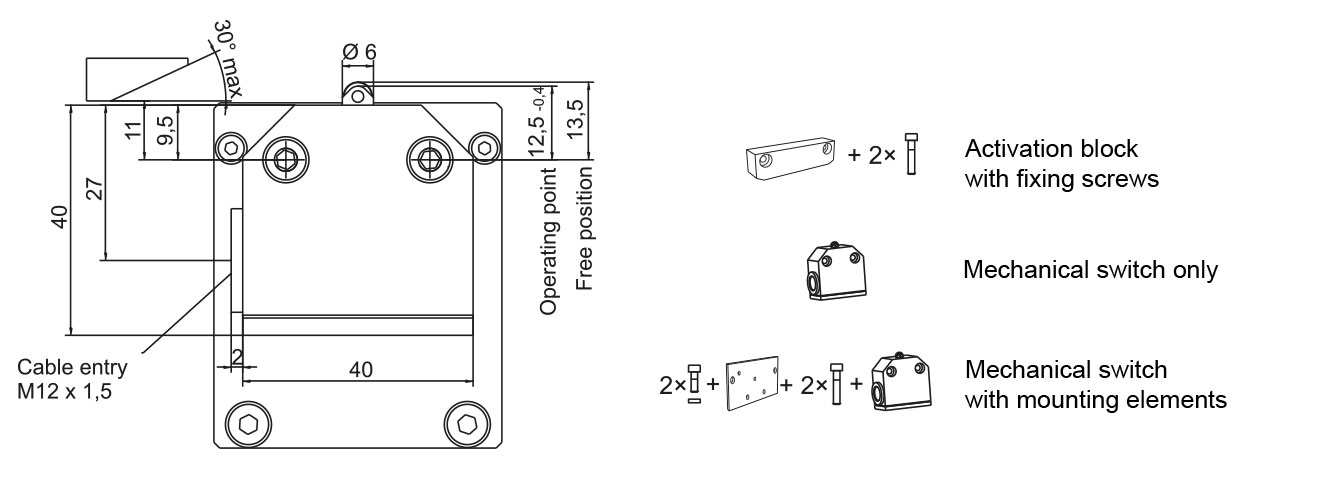

Technical Drawing
Designation Select all Lead Time * Compatible with
2 MTJ/MRJ 40
尺寸對照
詢價
2 MTJZ 40
尺寸對照
詢價
2 MTJ/MRJ/MTV 65 MTJZ 65/80
尺寸對照
詢價
2 MTJ/MRJ/MTV 80
尺寸對照
詢價
2 MTJ/MRJ/MTV 110
尺寸對照
詢價
2 MTJZ 110
尺寸對照
詢價
2 MTJ ECO 40
尺寸對照
詢價
2 CTV/CTJ 90
尺寸對照
詢價
2 CTV/CTJ 110
尺寸對照
詢價
2 CTV/CTJ 145/200
尺寸對照
詢價
2 All models
尺寸對照
詢價
2 MTJ/MRJ 40 MTJZ 40
尺寸對照
詢價
2 MTJ/MRJ/MTV 65 MTJZ 65/80
尺寸對照
詢價
2 MTJ/MRJ/MTV 80
尺寸對照
詢價
2 MTJ/MRJ/MTV 110
尺寸對照
詢價
2 MTJZ 110
尺寸對照
詢價
2 MTJ ECO 40
尺寸對照
詢價
2 CTV/CTJ 90
尺寸對照
詢價
2 CTV/CTJ 110
尺寸對照
詢價
2 CTV/CTJ 145
尺寸對照
詢價
2 CTV/CTJ 200
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
