W
Hardened precision steel shaft, Ø 5-80 mm.
SBE

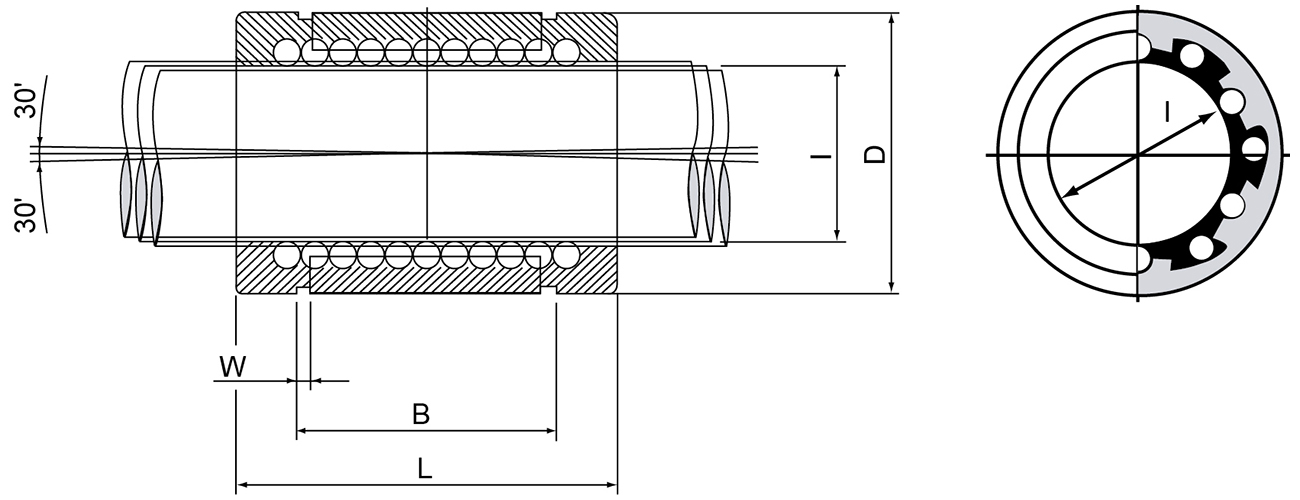

Dimensions in mm.
Other types available on request.
Read more
Other types available on request.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity (N) | Static Load Capacity (N) | Number Of Ball Rows | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 1530 | 1280 | 5 | ||||
|
|
|
1 | 2630 | 1700 | 6 | ||||
|
|
|
1 | 3880 | 2810 | 6 | ||||
|
|
|
1 | 4810 | 2860 | 6 | ||||
|
|
|
1 | 6630 | 5840 | 6 | ||||
|
|
|
1 | 11690 | 8100 | 6 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | I | D | L | W | B | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
16 | 26 | 36 | 1.3 | 24.6 | ||||
|
|
|
20 | 32 | 45 | 1.6 | 31.2 | ||||
|
|
|
25 | 40 | 58 | 1.85 | 43.7 | ||||
|
|
|
30 | 47 | 68 | 1.85 | 51.7 | ||||
|
|
|
40 | 62 | 80 | 2.15 | 60.3 | ||||
|
|
|
50 | 75 | 100 | 2.65 | 77.3 |
