Rail
Standard zinc plated steel or Stainless Steel C-rail
Rollers for Plate Version
CONCENTRIC ROLLER
RSBLN: Standard bearing steel
RXBLN: Stainless bearing steel (AISI-440C)
ECCENTRIC ROLLER
RSBLA: Standard bearing steel
RXBLA: Stainless bearing steel (AISI-440C)
Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your needs. Please contact Rollco for more information.
Read more
RSBLN: Standard bearing steel
RXBLN: Stainless bearing steel (AISI-440C)
ECCENTRIC ROLLER
RSBLA: Standard bearing steel
RXBLA: Stainless bearing steel (AISI-440C)
Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your needs. Please contact Rollco for more information.
Product Information
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.02 | ||||
|
|
|
1 | 0.068 | ||||
|
|
|
1 | 0.068 | ||||
|
|
|
1 | 0.068 | ||||
|
|
|
1 | 0.068 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

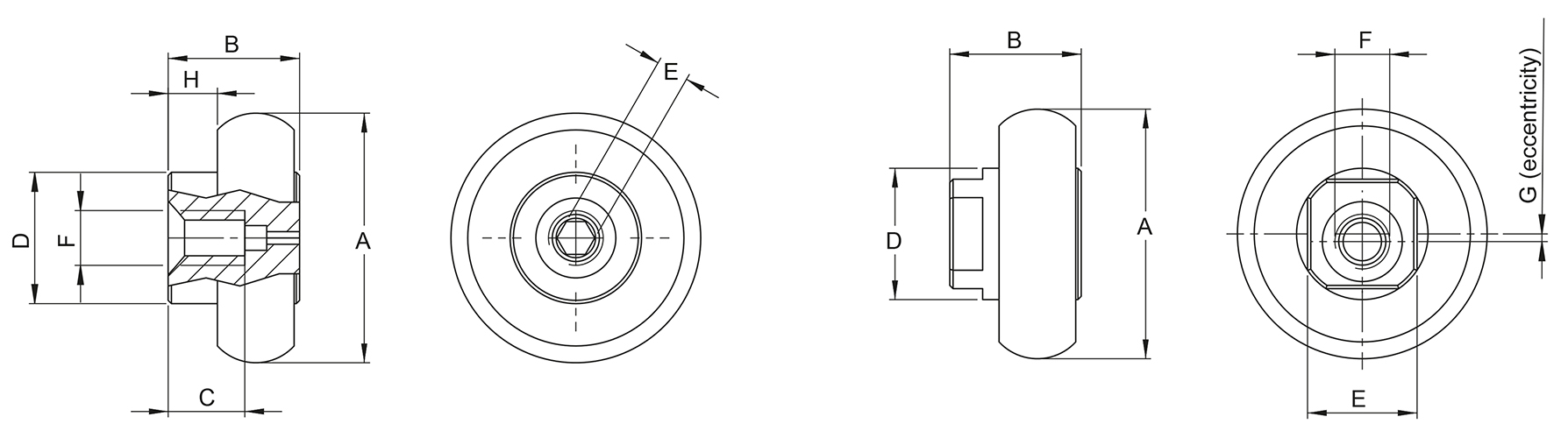

| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
14 +0/-0.04 | 8.2 | 6 | 8 | 2 | M4 | - | 4 | ||||
|
|
|
14 +0/-0.04 | 8.2 | 6 | 8 | 2 | M4 | - | 4 | ||||
|
|
|
14 +0/-0.04 | 8.2 | 6 | 8 | 6 | M4 | 0.5 | 4 | ||||
|
|
|
14 +0/-0.04 | 8.2 | 6 | 8 | 6 | M4 | 0.5 | 4 | ||||
|
|
|
22.8 +0/-0.05 | 12 | 7 | 12 | 3 | M5 | - | 4.5 | ||||
|
|
|
22.8 +0/-0.05 | 12 | 7 | 12 | 3 | M5 | - | 4.5 | ||||
|
|
|
22.8 +0/-0.05 | 12 | 7 | 12 | 10 | M5 | 0.7 | 4.5 | ||||
|
|
|
22.8 +0/-0.05 | 12 | 7 | 12 | 10 | M5 | 0.7 | 4.5 | ||||
|
|
|
35.6 +0/-0.06 | 17.3 | 12 | 16 | 3 | M6 | - | 6 | ||||
|
|
|
35.6 +0/-0.06 | 17.3 | 12 | 16 | 3 | M6 | - | 6 | ||||
|
|
|
35.6 +0/-0.06 | 17.3 | 12 | 16 | 13 | M6 | 0.8 | 6 | ||||
|
|
|
35.6 +0/-0.06 | 17.3 | 12 | 16 | 13 | M6 | 0.8 | 6 |
-
-
Slider Plate Version
Standard zinc plated steel or stainless steel slider for C-rail, plate version
