Rail

SBTE: Standard zinc plated steel
SXTE: Stainless Steel

Special lengths are available upon request. Please contact Rollco for more information.
Designation Lead Time * Material Weight Remark
1 Stainless steel 0,47 kg/m Fixing screws C20-M4x8
1 Stainless steel 0,9 kg/m Fixing screws C30-M5x10
1 Standard zinc plated steel 2,29 kg/m Fixing screws C45-M8x16
1 Stainless steel 2,29 kg/m Fixing screws C45-M8x16

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

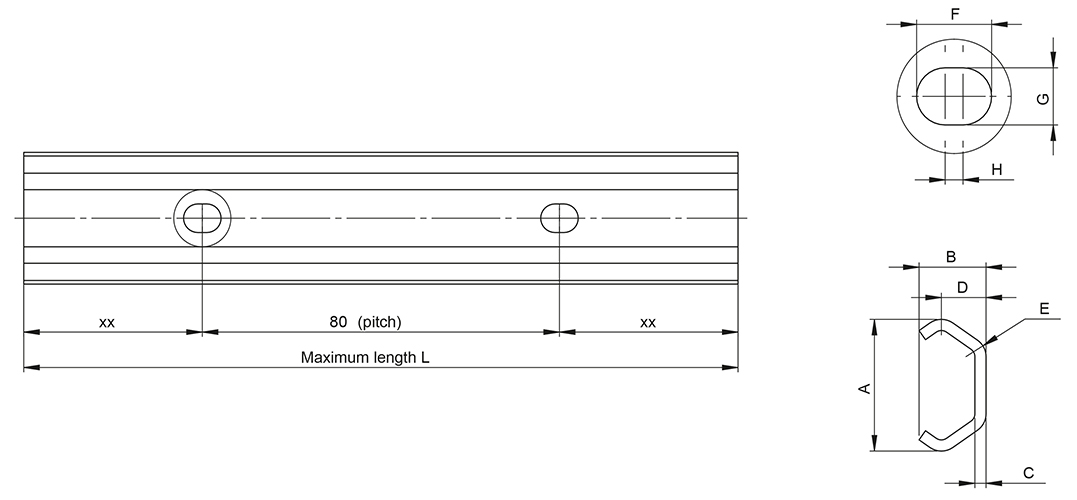

Technical Drawing
Designation A B C D E F G H L
19.20 10 2 7 3 7 5 2 4000
29.50 15 2.50 10 4.50 8.40 6.40 2 4000
45.70 24.50 4 15.50 6 11 9 2 6080
45.70 24.50 4 15.50 6 11 9 2 6080
