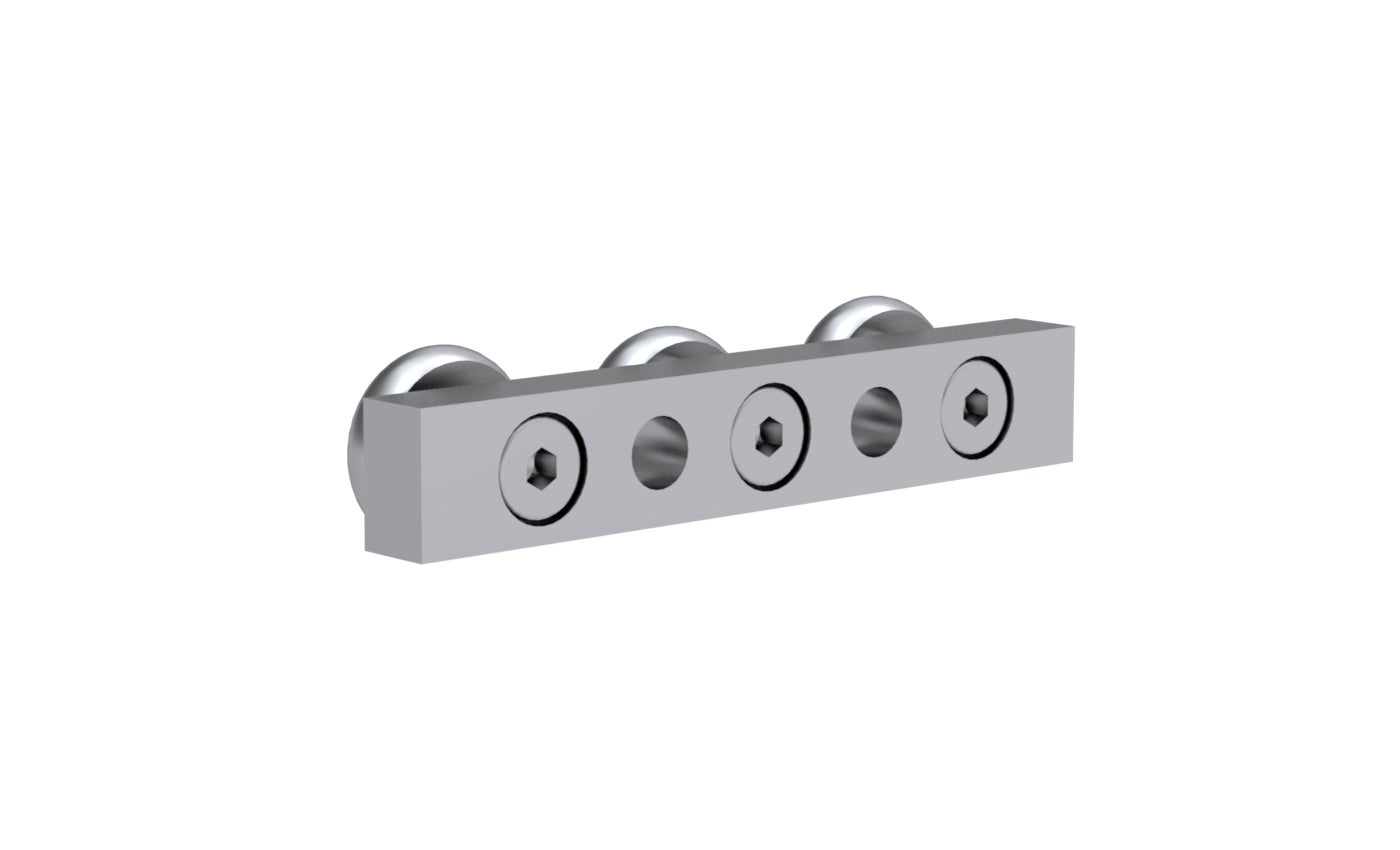

Slider Solid Version

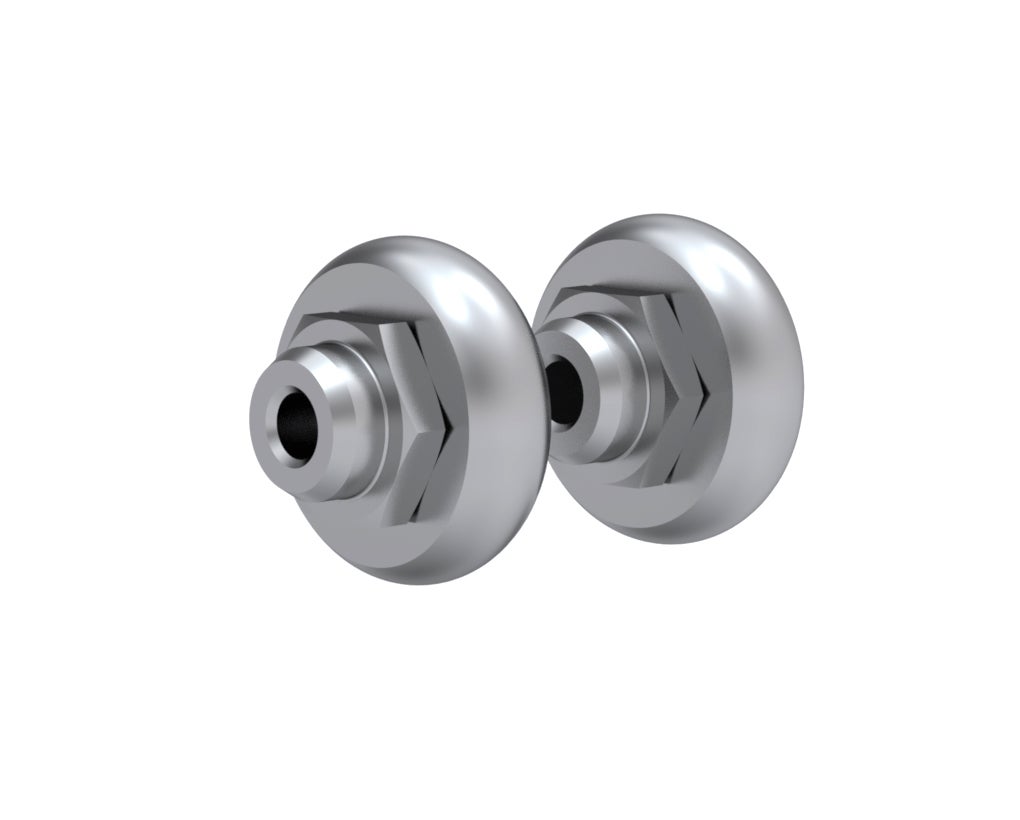

LSBE: Stainless steel body and standard steel rollers
LXBE: Stainless steel body and rollers

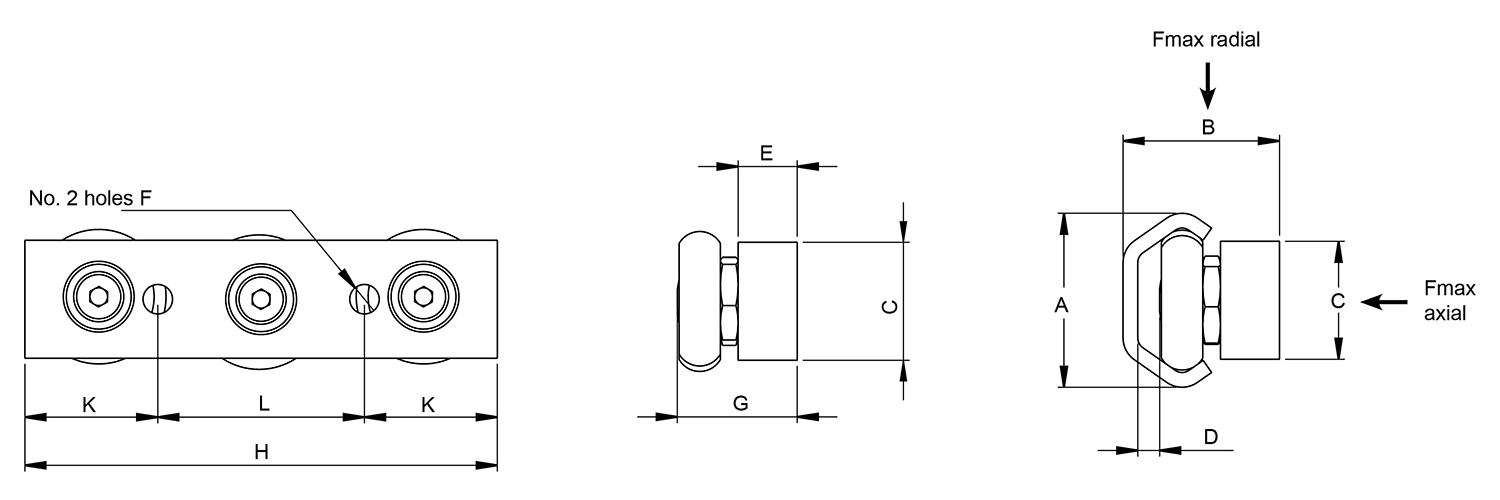

Technical Drawing
Designation Lead Time * Weight Max. Permissible Axial Load Fmax Max. Permissible Radial Load Fmax
1 0,04 kg 170 N 300 N
1 0,17 kg 400 N 800 N
1 0,6 kg 860 N 1600 N
1 0,04 kg 170 N 300 N
1 0,17 kg 400 N 800 N
1 0,6 kg 860 N 1600 N

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation A B C D E F G H K L
19.20 17.80 10 2.65 6 M5 13.15 60 20 20
29.50 26.50 20 3.70 10 M6 20.30 80 22.50 35
45.70 41 30 5.10 15 M8 31.90 120 32.50 55
19.20 17.80 10 2.65 6 M5 13.15 60 20 20
29.50 26.50 20 3.70 10 M6 20.30 80 22.50 35
45.70 41 30 5.10 15 M8 31.90 120 32.50 55
