Rollers for Solid Version

CONCENTRIC ROLLER
RSBN: Standard bearing steel
RXBN: Stainless steel

ECCENTRIC ROLLER
RSBA: standard bearing steel
RXBA: Stainless bearing steel

Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your need. Please contact Rollco for more information.

A, B and D = with rail
Designation Lead Time * Weight
1 0,006 kg
1 0.006 kg
1 0.006 kg
1 0.006 kg
1 0.022 kg
1 0.022 kg
1 0.022 kg
1 0.022 kg
1 0.07 kg
1 0.07 kg
1 0.07 kg
1 0.07 kg

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

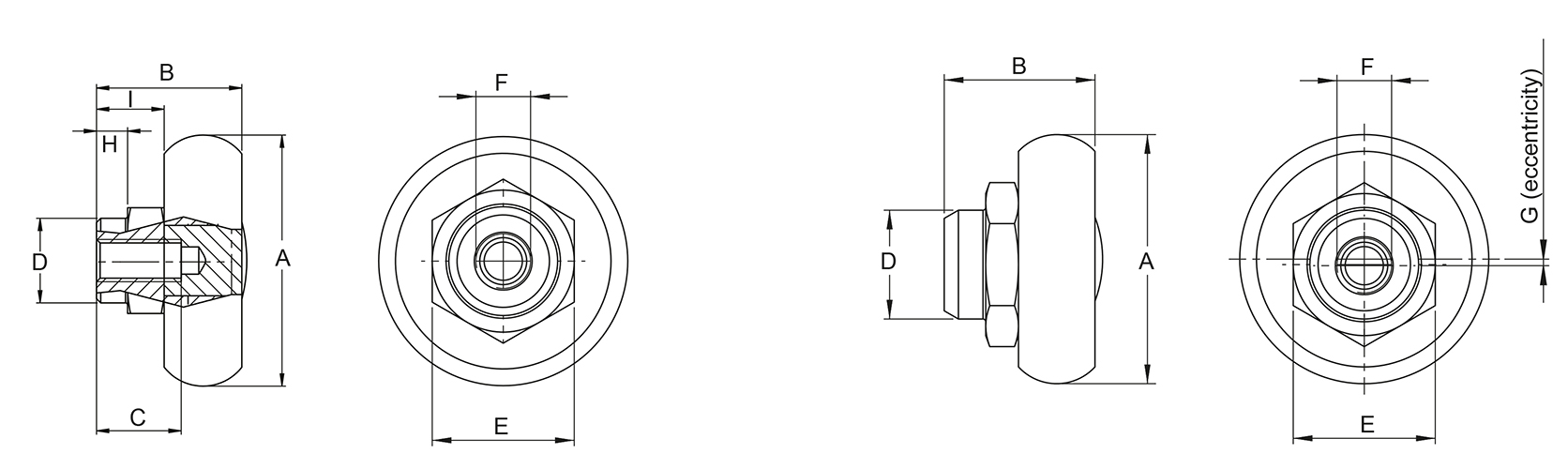

Technical Drawing
Designation A B C D E F G H I
14 8.70 6 6 8 M4 - 1.80 4.70
14 8.70 6 6 8 M4 - 1.80 4.70
14 8.70 6 6 8 M4 0.50 1.80 4.70
14 8.70 6 6 8 M4 0.50 1.80 4.70
22.80 13.80 7 10 13 M5 - 3.80 6.80
22.80 13.80 7 10 13 M5 - 3.80 6.80
22.80 13.80 7 10 13 M5 0.60 3.80 6.80
22.80 13.80 7 10 13 M6 0.60 3.80 6.80
35.60 20.60 12 12 15 M6 - 4.50 9.60
35.60 20.60 12 12 15 M6 - 4.50 9.60
35.60 20.60 12 12 15 M6 0.80 4.50 9.60
35.60 20.60 12 12 15 M6 0.80 4.50 9.60
