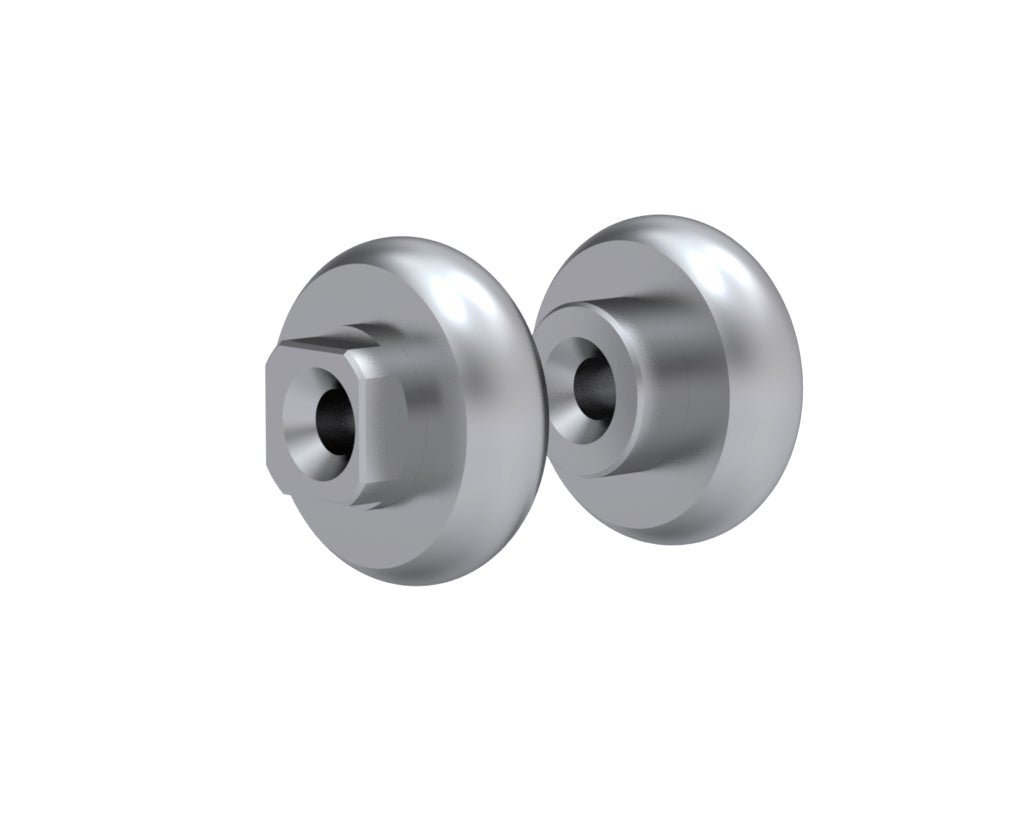

Slider Plate Version
LSWL: Stainless steel body with wipers and standard steel rollers
LXWL: Stainless steel body with wipers and stainless steel rollers
A, B and D = with rail
LXWL: Stainless steel body with wipers and stainless steel rollers
A, B and D = with rail
| Designation | Lead Time * | Weight | Max. Permissible Axial Load Fmax | Max. Permissible Radial Load Fmax |
|---|---|---|---|---|
|
|
1 | 0,05 kg | 170 N | 300 N |
|
|
1 | 0,11 kg | 400 N | 800 N |
|
|
1 | 0,40 kg | 860 N | 1600 N |
|
|
1 | 0,05 kg | 170 N | 300 N |
|
|
1 | 0,11 kg | 400 N | 800 N |
|
|
1 | 0,40 kg | 860 N | 1600 N |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

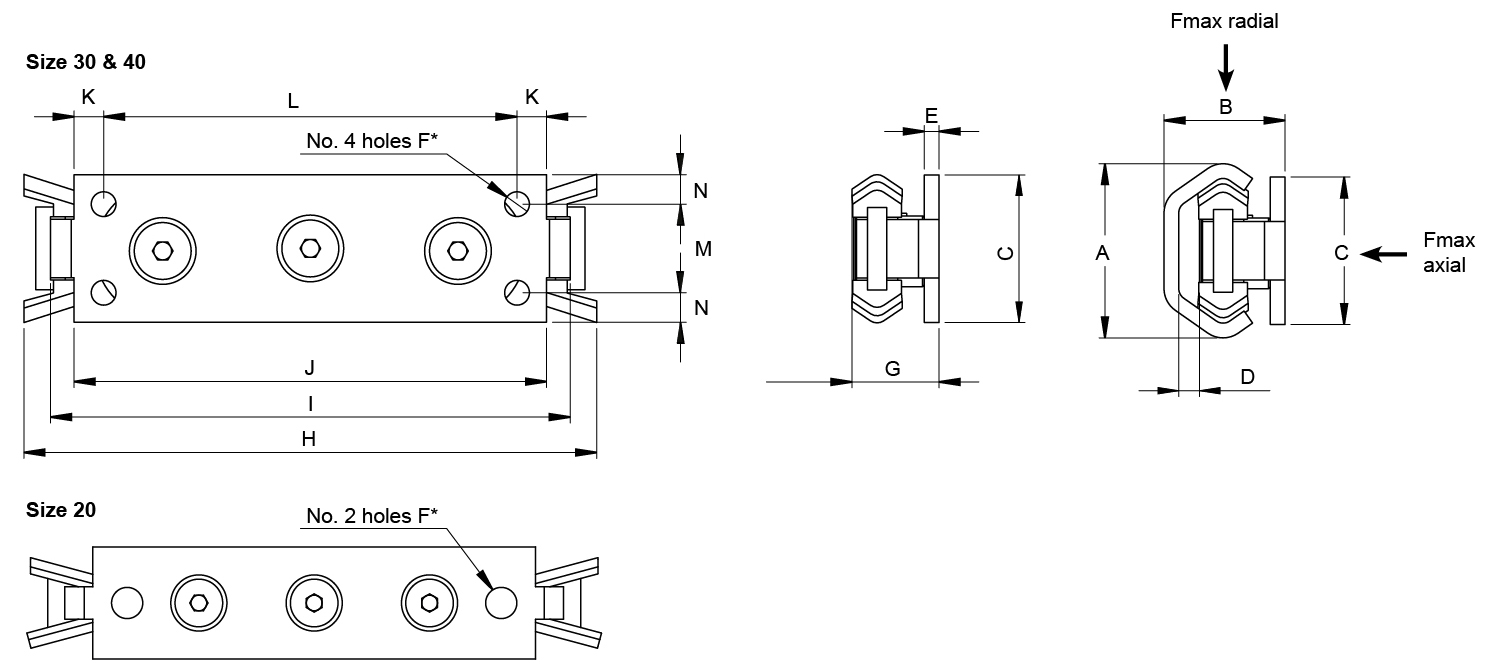

| Designation | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
19.20 | 16 | 18 | 2.50 | 3 | M5 | 11.50 | 91 | 80 | 71 | 5.50 | 60 | - | 9 |
|
|
29.50 | 20.50 | 25 | 3.50 | 2.50 | M5 | 14.50 | 97 | 88 | 80 | 5.00 | 70 | 15 | 5 |
|
|
45.70 | 31.00 | 40 | 5.00 | 4.00 | M6 | 22 | 160 | 150 | 135 | 7.50 | 120 | 23 | 8.50 |
|
|
19.20 | 16.00 | 18 | 2.50 | 3.00 | M5 | 11.50 | 91 | 80 | 71 | 5.50 | 60 | - | 9 |
|
|
29.50 | 20.50 | 25 | 4.00 | 2.50 | M5 | 14.50 | 97 | 88 | 80 | 5.00 | 70 | 15 | 5 |
|
|
45.70 | 31.00 | 40 | 5.00 | 4.00 | M6 | 22 | 160 | 150 | 135 | 7.50 | 120 | 23 | 8.50 |
