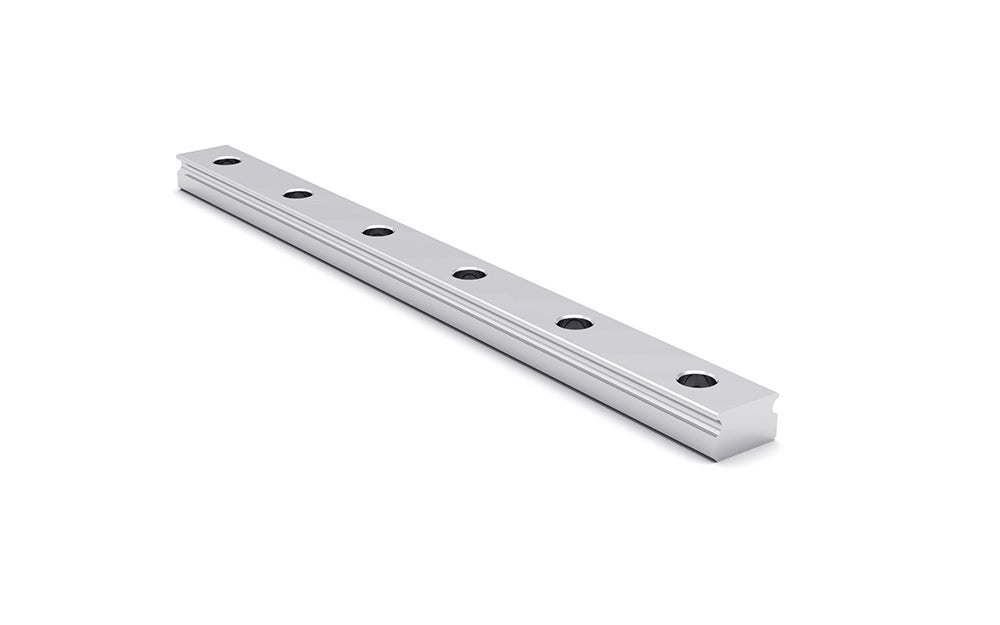

MR-M ZUE Series

Standard Narrow Rail Type
End seal, bottom seal, reinforcement plate, lubrication storage.

Dimensions in mm

Product Information

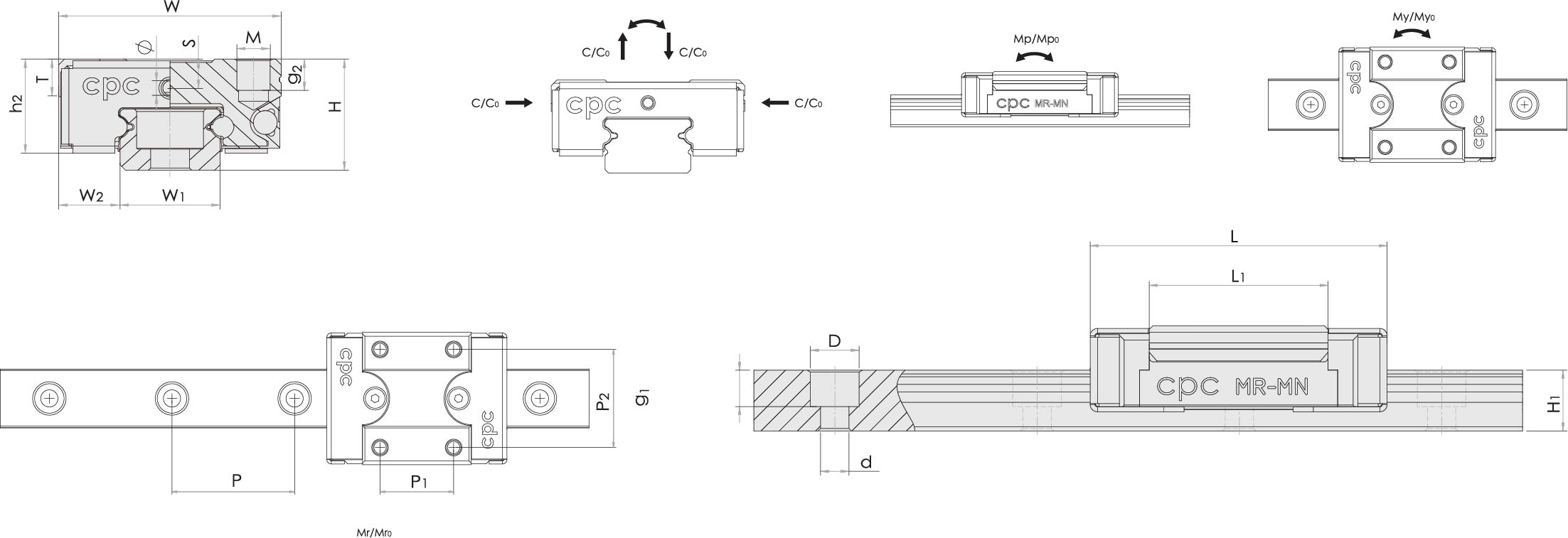

Technical Drawing
Designation Lead Time * System Height (H) System Width (W) Block Length (L) Hole Pitch (P) D x d x g1 H1 W1 P1 P2 Mxg2
1 6 12 16.60 15 3,5x2,4x1 3.50 5 - 8 M2x1,5 詢價
1 6 12 20.20 15 3,5x2,4x1 3.50 5 7 - M2,6x2,0 詢價
1 10 20 31.60 20 6x3,5x3,5 5.50 9 10 15 M3x3,0 詢價
1 10 20 41.90 20 6x3,5x3,5 5.50 9 16 15 M3x3,0 詢價
1 13 27 36.80 25 6x3,5x4,5 7.50 12 15 20 M3x3,5 詢價
1 13 27 49 25 6x3,5x4,5 7.50 12 20 20 M3x3,5 詢價
1 16 32 44.60 40 6x3,5x4,5 9.50 15 20 25 M3x5,5 詢價
1 16 32 61.60 40 6x3,5x4,5 9.50 15 25 25 M3x5,5 詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation H1 h2 L1 Mxg2 S T W1 W2 ø
3.50 5 10 M2x1,5 1.30 2 5 3.50 0.70 詢價
3.50 5 13.50 M2,6x2,0 1.30 2 5 3.50 0.70 詢價
5.50 8.50 20.50 M3x3,0 2.20 3.30 9 5.50 1.30 詢價
5.50 8.50 30.80 M3x3,0 2.20 3.30 9 5.50 1.30 詢價
7.50 10.90 22 M3x3,5 3.20 4.30 12 7.50 1.30 詢價
7.50 10.90 34 M3x3,5 3.20 4.30 12 7.50 1.30 詢價
9.50 13.10 27 M3x5,5 3.30 4.30 15 8.50 1.80 詢價
9.50 13.10 44 M3x5,5 3.30 4.30 15 8.50 1.80 詢價
Additional Drawing 1

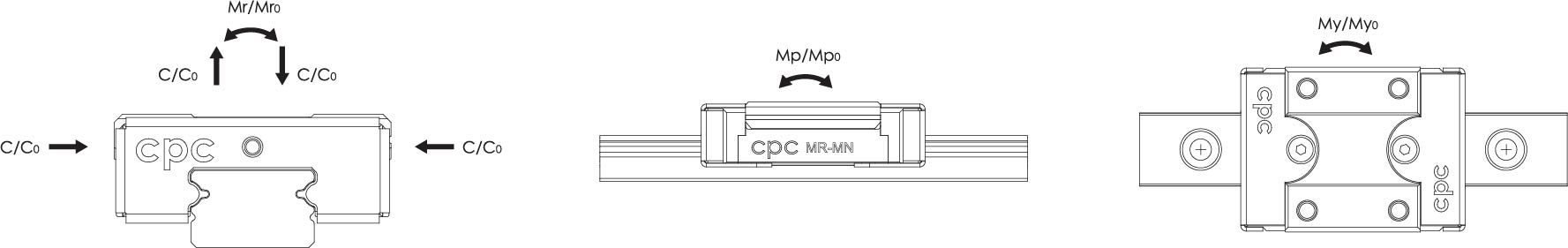

Designation Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
335 N 550 N 1,7 Nm 1 Nm 1 Nm 3,5 g 詢價
470 N 900 N 2,4 Nm 2,1 Nm 2,1 Nm 4 g 詢價
1570 N 2495 N 11,7 Nm 6,4 Nm 6,4 Nm 18 g 詢價
2135 N 3880 N 18,2 Nm 12,4 Nm 12,4 Nm 28 g 詢價
2308 N 3465 N 21,5 Nm 12,9 Nm 12,9 Nm 34 g 詢價
3240 N 5630 N 34,9 Nm 30,2 Nm 30,2 Nm 51 g 詢價
3810 N 5590 N 43,6 Nm 27 Nm 27 Nm 61 g 詢價
5350 N 9080 N 70 Nm 63,3 Nm 63,3 Nm 90 g 詢價
