SBI-HL /-HLS /-CL /-CLS

STOCK ITEM

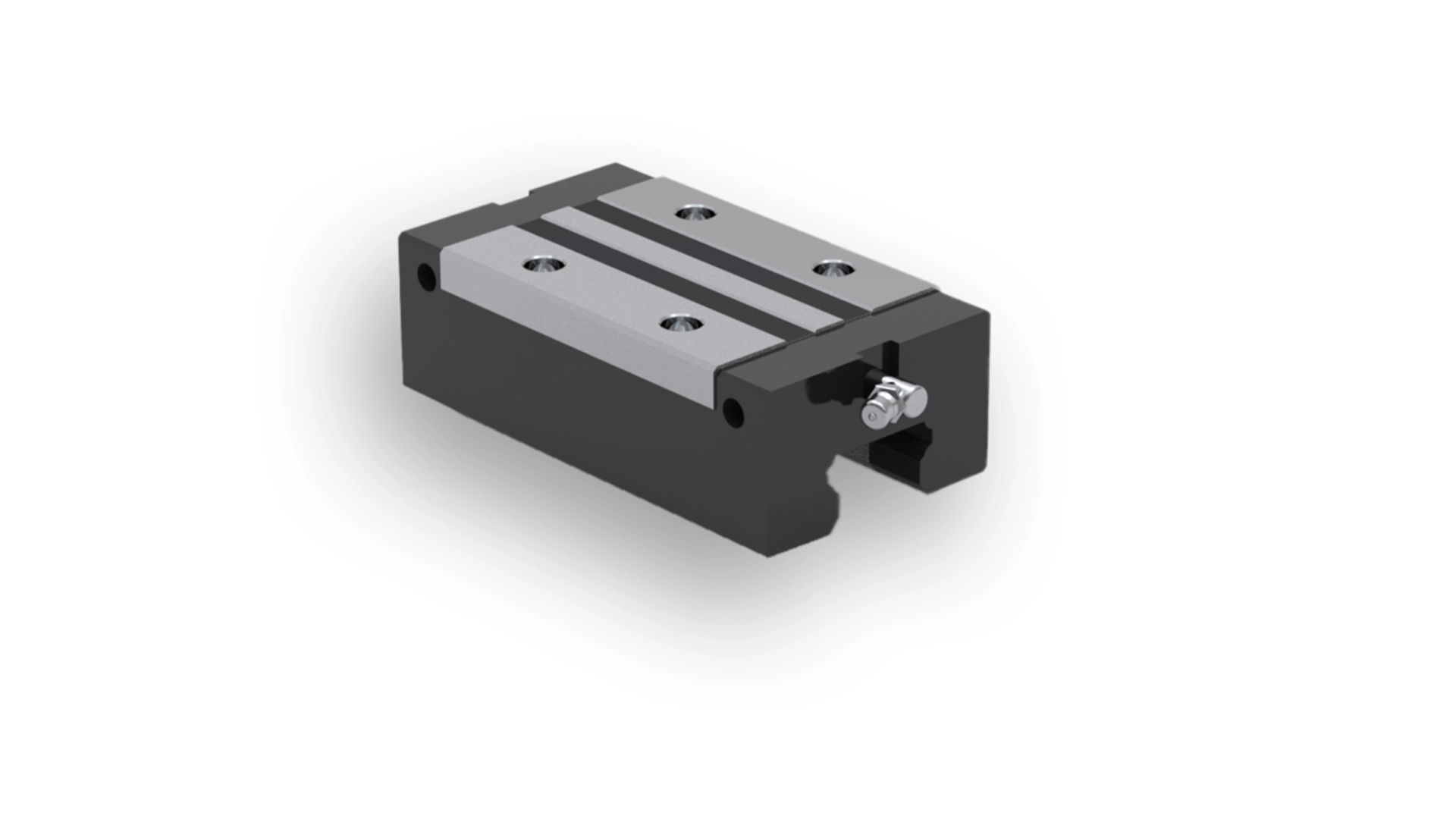

Low height block without flange. Side-nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Read more
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (g) Weight Rail (g/m)
Get quote 1 14100 24100 160 170 170 94 99 99 190 1300
Get quote 1 12300 18300 130 80 80 87 54 54 150 1300
Get quote 1 22200 38200 360 330 330 209 192 192 390 2200
Get quote 1 19100 27000 270 150 150 191 106 106 230 2200
Get quote 1 31500 52100 560 560 560 339 339 339 660 3000
Get quote 1 31500 52100 560 560 560 339 339 339 690 3000
Get quote 1 42800 65400 850 770 770 556 504 504 1040 4250
Get quote 1 59500 89100 1420 1280 1280 948 855 855 1560 6020
Get quote 1 79200 116300 2480 1900 1900 1689 1294 1294 2800 9770
Get quote 2 127300 181800 4810 2970 2970 3368 2080 2080 4420 13720

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

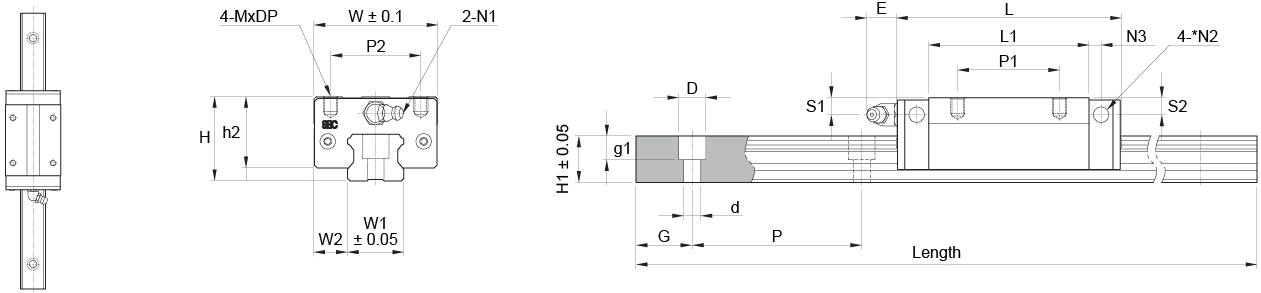

Designation Select all CAD Compare Get quote L H W W1 W2 L1 H1 h2 S1 S2 D x d x g1 Hole Pitch (P) MxDP N1 N2 N3 P1 P2 E G P Length
Get quote 63.8 24 34 15 9.5 45.2 13 21 4.5 3.8 7.5 x 4.5 x 5.5 60 M4x4 M4x0.7 Ø 3.5 3.8 26 26 5.5 20 60 3000
Get quote 56.8 24 34 15 9.5 38.2 13 21 4.5 3.8 7.5 x 4.5 x 5.5 60 M4x4 M4x0.7 Ø 3.5 3.8 26 26 5.5 20 60 3000
Get quote 78.8 28 44 20 12 56.8 16.5 23.4 4.8 4 9.5 x 6 x 8.5 60 M5x5 M6x0.75 Ø 3.5 5 32 32 12 20 60 4000
Get quote 65.2 28 42 20 11 43.2 16.5 23.4 4.8 4.3 9.5 x 6 x 8.5 60 M5x5 M6x0.75 Ø 3.5 5 32 32 12 20 60 4000
Get quote 92 33 48 23 12.5 70 20 27.5 5.4 5.4 11 x 7 x 9 60 M6x6 M6x0.75 Ø 3.5 5 35 35 12 20 60 4000
Get quote 92 36 48 23 12.5 70 20 30.5 6 5 11 x 7 x 9 60 M6x6 M6x0.75 Ø 3.5 5.5 35 35 12 20 60 4000
Get quote 107.6 42 60 28 16 79.6 23 35 8.5 7.8 14 x 9 x 12 80 M8x8 M6x0.75 Ø 5.7 5 40 40 12 20 80 4000
Get quote 124.6 48 70 34 18 94.6 26 40.5 8 8 14 x 9 x 12 80 M8x8 M6x0.75 Ø 5.7 6 50 50 12 20 80 4000
Get quote 142 60 86 45 20.5 108 32 51 10.5 9.3 20 x 14 x 17 105 M10x10 PT1/8 Ø 5.7 6.5 60 60 13.5 22.5 105 4000
Get quote 172.4 70 100 53 23.5 131 38 58 12 12 23 x 16 x 20 120 M12x12 PT1/8 Ø 8.7 8 75 75 13 30 120 4000
