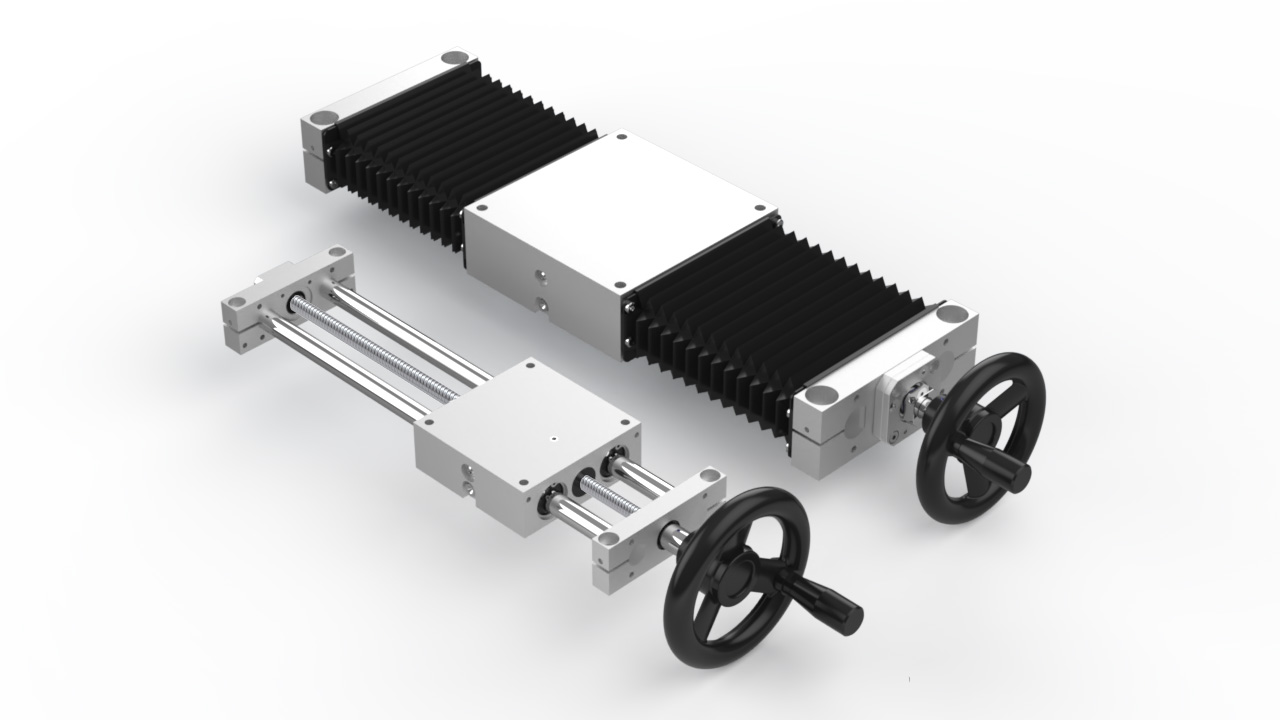

Linear Unit QME- standard version

LOCALLY PRODUCED
By using Linear Unit QME from Rollco you save both time and money. The units are designed to fulfil the need of an easy to mount unit for medium precision requirements. The units are ready to mount linear tables guided with linear ball bearings on hardened shafts and driven by ball- or lead-screw. There is a wide variety of executions available for quick delivery from our workshop.

Selectable standard options are:
• Bellows
• Hand wheel
• Screw locking
• Mechanical position counter
• Left+Right drive units
• Magnetic end position switches

For higher level of corrosion resistance, low/high temperature versions, other screw-leads or
types, customized machining of the drive- and mounting-interfaces, contact Rollco.

Characteristics
• Linear ball bearings used for lowest friction and minimal and persistent play.
• Low backlash ball screw, optional with reduced backlash or backlash eliminated by light preload.
• Customized mounting flange for motor and/or customized end-machining of the screw shaft available.
• Corrosion resistant version as option.

Max Ltot: QME12: 1000 mm, QME20: 1500 mm, QME30: 2000 mm
Dimensions of Drive ends refer to Standard version drawing.
All dimensions in mm. Drive ends
Download PDF

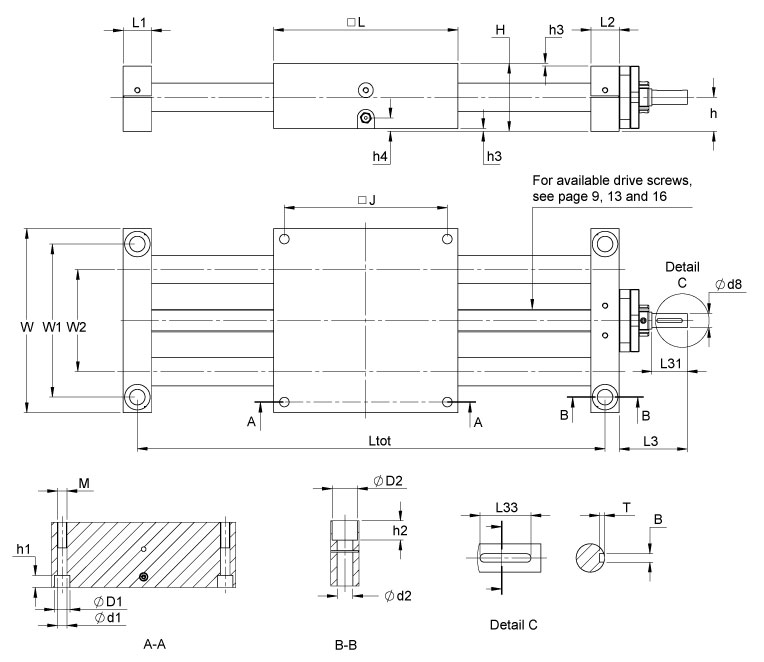

Technical Drawing
Designation Select all Lead Time * J L L1 L2 h H2 W W1 W2 M Ltot d1 D1 h1 d2 D2 h2 h3 h4
2 73 85 12 14 15 8.50 85 73 45 M6 x 12 stroke+98 5.20 5.20 5.50 5.50 5.50 8.50 1.50 7.50
尺寸對照
詢價
2 73 85 12 14 15 - 85 73 45 M6 x 12 stroke+98 - 5.20 - - 5.50 8.50 1.50 7.50
尺寸對照
詢價
2 115 130 20 20 24 13.50 130 108 72 M8 x 18 stroke+150 6.80 6.80 8.50 11 11 13.50 2 7.50
尺寸對照
詢價
2 115 130 20 20 24 - 130 108 72 M8 x 18 stroke+150 - 6.80 - - 11 13.50 2 7.50
尺寸對照
詢價
2 184 200 22 22 36 14 200 178 130 M8 x 18 stroke+222 6.80 6.80 8.50 13 13 14 2 15
尺寸對照
詢價
2 184 200 22 22 36 - 200 178 130 M8 x 18 stroke+222 - 6.80 - - 13 14 2 15
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Designation Select all L3 L31 d8 B (P9 )x L33 x T Drive end W x
23 8 4 (h7) no keyway 53
尺寸對照
詢價
23 8 4 (h7) no keyway 53
尺寸對照
詢價
48 25 10 (h7) 3 x 21 x 1,8 61
尺寸對照
詢價
48 25 10 (h7) 3 x 21 x 1,8 61
尺寸對照
詢價
80 45 16 (h7) 5 x 36 x 3 68
尺寸對照
詢價
80 45 16 (h7) 5 x 36 x 3 68
尺寸對照
詢價

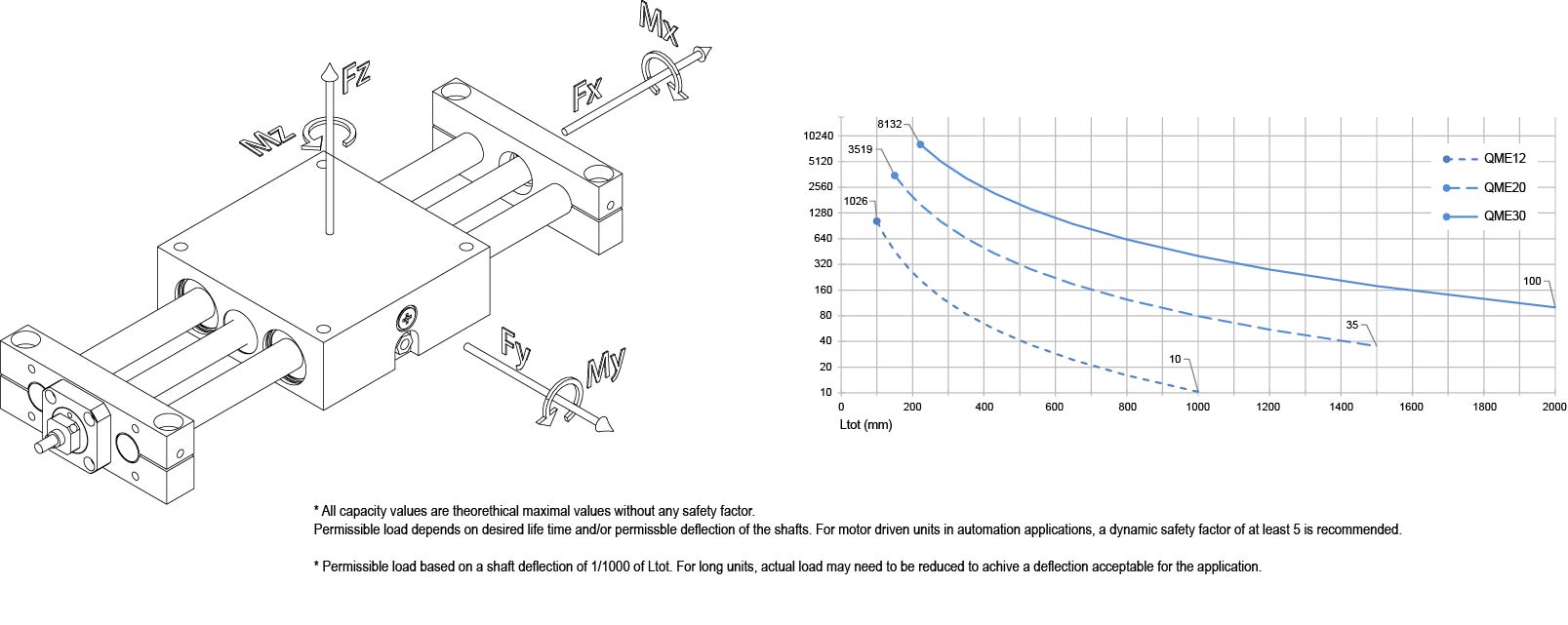

Additional Drawing 1
Designation Select all Static load capacity Fz Dynamic load capacity Fz Static load capacity Fy Dynamic load capacity Fy Static load capacity Mx Dynamic load capacity Mx Static load capacity My Dynamic load capacity My Static load capacity Mz Dynamic load capacity Mz
3160 N 2080 N 3160 Nm 2080 Nm 71 Nm 47 Nm 74 Nm 47 Nm 74 Nm 49 Nm
尺寸對照
詢價
3160 N 2080 N 3160 Nm 2080 Nm 71 Nm 47 Nm 74 Nm 47 Nm 74 Nm 49 Nm
尺寸對照
詢價
5600 N 3520 N 5600 Nm 3520 Nm 202 Nm 127 Nm 216 Nm 127 Nm 216 Nm 136 Nm
尺寸對照
詢價
5600 N 3520 N 5600 Nm 3520 Nm 202 Nm 127 Nm 216 Nm 127 Nm 216 Nm 136 Nm
尺寸對照
詢價
11200 N 6400 N 11200 Nm 6400 Nm 728 Nm 416 Nm 678 Nm 416 Nm 678 Nm 387 Nm
尺寸對照
詢價
11200 N 6400 N 11200 Nm 6400 Nm 728 Nm 416 Nm 678 Nm 416 Nm 678 Nm 387 Nm
尺寸對照
詢價
Additional Drawing 2
Designation Select all Screw Type Dynamic Capacity Ca Permissible Fx
SR082,5 2030 N 1400 N
尺寸對照
詢價
TR1203 n/a 1400 N
尺寸對照
詢價
SR1605 7100 N 2500 N
尺寸對照
詢價
TR1604 n/a 2500 N
尺寸對照
詢價
SR/SL3205 / SR3210 / SR3220 9500 N 3200 N
尺寸對照
詢價
TR3006 n/a 3200 N
尺寸對照
詢價
