Hand wheel with locking device- WL

Locking device are available for all sizes. We recommend locking device for all hand driven units with ball screw to avoid back driving.
Locking device is always included if position indicator is selected (option WIL).

Dimensions in mm.
Download PDF

Product Information

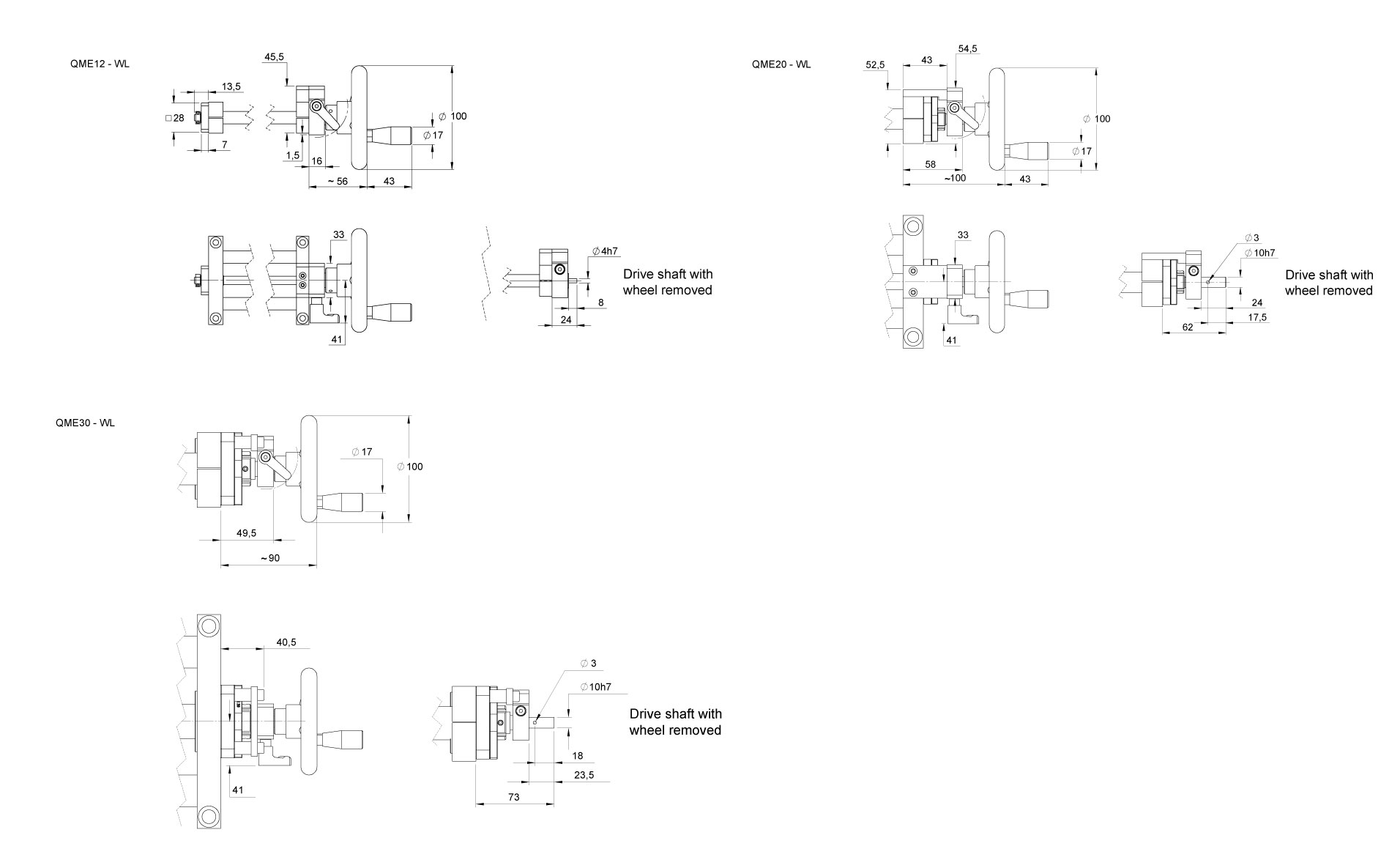

Technical Drawing
Designation Select all Lead Time * Compatible with
2 QME12
尺寸對照
詢價
2 QME20
尺寸對照
詢價
2 QME30
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
