Fixing System

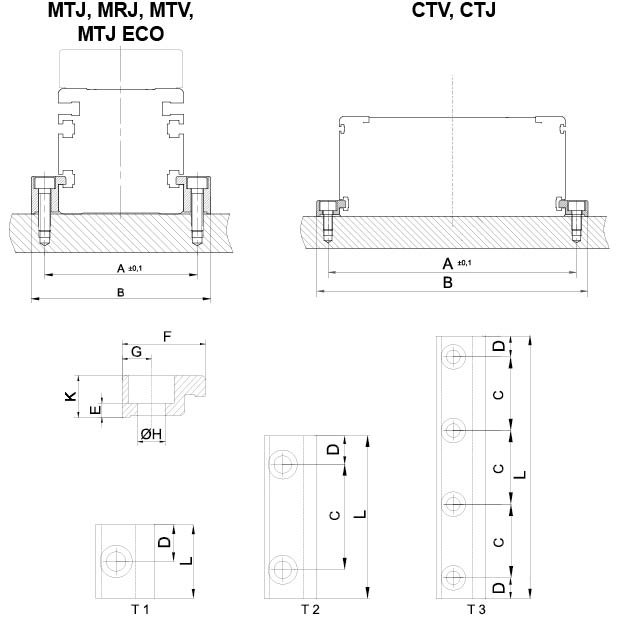

The linear units are mounted by using fixtures which are placed in the slot on the side of the profile.
Linear unit must be mounted by the aluminium profile.

Recommended number of clamping fixtures:
For T1 is recommended 6 pcs. per meter on each side.
For T2 is recommended 3 pcs. per meter on each side .
For T3 is recommended 3 pcs. per meter on each side.

Contact Rollco for CAD-files.

Dimensions in mm.

Product Information

Designation Select all Lead Time * Compatible with Type A B C D E F G H K L Screw Type Countersink for Weight (kg)
/storage/03553FDE04FA0D9DA4347E1EC41D8BBBC735E1C2F3FDDAFF9F6294227357424A/4c6fe2bf490643bbb1cd322e3ff3c7e0/stp/media/797ef9077e454d4ea3b3f737f814da7e/CAD_FixingSystem-37139_FixingSystem_Rollco.stp 1 MTJ, MRJ 40 T2 50 64.40 40 7.50 2.50 15 7.20 Ø 5.5 8 55 M5 DIN 912 0.01
Get quote
/storage/B7ACC58B8EB2933DC2348F32208A2431D7C9A419A13959F0511BFD3F6B57BC31/f42db73b7b1c486b822968c337401278/stp/media/80b5df912e77450ab51c567b761d4cc9/CAD_FixingSystem-37129_FixingSystem_Rollco.stp 1 MTJ, MRJ, MTV 65 T2 78 93 40 10 11.50 20 7.50 Ø 6.5 20 60 M6 DIN 912 0.05
Get quote
/storage/B7ACC58B8EB2933DC2348F32208A2431D7C9A419A13959F0511BFD3F6B57BC31/f42db73b7b1c486b822968c337401278/stp/media/80b5df912e77450ab51c567b761d4cc9/CAD_FixingSystem-37129_FixingSystem_Rollco.stp 2 MTJ, MRJ, MTV 80 T2 93 108 40 10 11.50 20 7.50 Ø 6.5 20 60 M6 DIN 912 0.05
Get quote
/storage/E6DEE8CB6D92232F0644E61B82D8B15D5F234BCB8EE5FE143E5F5307DF628669/6a222ab4bdc64f098116d9d97fc96fa7/stp/media/de2902daebdb44eb832a03c28c1ba27c/CAD_FixingSystem-44375_FixingSystem_Rollco.stp 2 MTJ, MRJ, MTV 110 T2 130 150 40 10 18 30 10 Ø 8.5 27 60 M8 DIN 912 0.08
Get quote
/storage/66F3365A12E553AC40DE622D636FF62E725BF988B6D8A1685374EB8F93F68F5F/9cd0aac74bf44dafbe0f6f94f5a76330/stp/media/f4c7ecd58181498882d5cd6e329b8d06/CAD_FixingSystem-40728_FixingSystem_Rollco.stp 2 MTJ ECO 40 T2 52 66 40 7.50 14.50 20 7 Ø 5.5 20 55 M5 DIN 912 0.04
Get quote
/storage/A673728F604EB4DBEF6F6B75328C69D1A08661FBCAE6A5BE6097D1DDFA389F7F/a2ba2ae210e948cbabe253196cf2083c/stp/media/1be0c19379eb49fcb4fff99bf7e833a1/CAD_FixingSystem-46994_FixingSystem_Rollco.stp 1 CTV, CTJ 90 T1 102 112 / 12.50 4.50 15 5 Ø 4.5 9 25 M4 DIN 912 0.01
Get quote
/storage/8FF532FBFB9A116E88371136DBC34CA26516AE2BD4BFBAA1B8CB143778C30CB6/ce5d6aef2f924d65993b363fa9d34859/stp/media/dd15aa10af01451db9395dfedbf3b55a/CAD_FixingSystem-48636_FixingSystem_Rollco.stp 1 CTV, CTJ 90 T2 102 112 40 11 4.50 15 5 Ø 4.5 9 62 M4 DIN 912 0.02
Get quote
/storage/CA111E7464F516DDEEC9163F48BDF010F5A26BEDEC0375EA66CC781A4A1D1638/6833d684386741d7a5b39e8ae9293cd9/stp/media/9c6ee57b059d4bb98eb568bb05965255/CAD_FixingSystem-47163_FixingSystem_Rollco.stp 2 CTV, CTJ 90 T3 102 112 20 8.50 4.50 15 5 Ø 4.5 9 77 M4 DIN 912 0.03
Get quote
/storage/CFDA299F89C41DE0E9D7EE34B1AFC13BE74849185AF2D6F8AB50DA9B19793D62/cfc505ba8976469ab360a2c127c6fe42/stp/media/676054fec47549049898a9adf0cb82b9/CAD_FixingSystem-55261_FixingSystem_Rollco.stp 2 CTV, CTJ 90 T3 102 112 25 6 4.50 15 5 Ø 4.5 9 87 M4 DIN 912 0.03
Get quote
/storage/0F54A2918439694D06C656A751672D2F808999A843C3F68AEF78BAC90C950A07/d38d6b3ed7b04586a605cda38f459451/stp/media/85d17f46be9747fa89d654c087136e62/CAD_FixingSystem-55638_FixingSystem_Rollco.stp 2 CTV, CTJ 90 T3 102 112 30 8.50 4.50 15 5 Ø 4.5 9 107 M4 DIN 912 0.03
Get quote
/storage/85951A0A69282ACDA7440F4624CD762B57F45D39F42AC7D19446809B26E0BEA2/55ecaf5d11e04251bb688be0a3b7ac8a/stp/media/274fab4af46c4769aacb672d3592f07c/CAD_FixingSystem-48642_FixingSystem_Rollco.stp 2 CTV, CTJ 110 T1 126 140 / 12.50 3.40 20 7 Ø 6.6 10 25 M6 DIN 912 0.01
Get quote
/storage/2C9EAF77273E7153DA9A41BEA7F4F820FF69FD9A99690EFC5A03ED2D52FF6D99/52503cb63f624f159a7657f24d8af1bc/stp/media/109e1e8fb56c432c9193f271eb27c640/CAD_FixingSystem-48643_FixingSystem_Rollco.stp 1 CTV, CTJ 110 T2 126 140 40 11 3.40 20 7 Ø 6.6 10 62 M6 DIN 912 0.03
Get quote
/storage/D22BA1ECEA7D00B915E8212E30C8F07974C14728EAE42B9331E24B7F91939B46/fb4775255d784fc6abc8aa6b2c340b54/stp/media/3d18a8402619404f91c1a93840b2da81/CAD_FixingSystem-48640_FixingSystem_Rollco.stp 2 CTV, CTJ 110 T3 126 140 20 8.50 4.50 20 7 Ø 5.5 10 77 M5 DIN 912 0.03
Get quote
/storage/92C8BD12A8BBC5AB3899D0A01100F1D994F16706C079D3EEE9EB7C3AA7E72D97/beb4899fdda44254859d772e033d0c0e/stp/media/023bfd1b09b241308f4302fbed879ae3/CAD_FixingSystem-46995_FixingSystem_Rollco.stp 1 CTV, CTJ 110 T3 126 140 30 8.50 4.50 20 7 Ø 5.5 10 107 M5 DIN 912 0.05
Get quote
/storage/E0A1825C1824FACE028C46A1711A497B13B52BF9AD5BFFA5D6D8F455F1B063EC/8929298846a4499a85d860b834b4ac8c/stp/media/a1bd2a8387fe4b9cb6915c085f37fb48/CAD_FixingSystem-55260_FixingSystem_Rollco.stp 2 CTV, CTJ 110 T3 126 140 40 11 3.40 20 7 Ø 6.6 10 142 M6 DIN 912 0.06
Get quote
/storage/85951A0A69282ACDA7440F4624CD762B57F45D39F42AC7D19446809B26E0BEA2/55ecaf5d11e04251bb688be0a3b7ac8a/stp/media/274fab4af46c4769aacb672d3592f07c/CAD_FixingSystem-48642_FixingSystem_Rollco.stp 2 CTV, CTJ 110 T1 126 140 / 12.50 3.40 20 7 Ø 6.6 10 25 M6 DIN 912 0.01
Get quote
/storage/2C9EAF77273E7153DA9A41BEA7F4F820FF69FD9A99690EFC5A03ED2D52FF6D99/52503cb63f624f159a7657f24d8af1bc/stp/media/109e1e8fb56c432c9193f271eb27c640/CAD_FixingSystem-48643_FixingSystem_Rollco.stp 1 CTV, CTJ 110 T2 126 140 40 11 3.40 20 7 Ø 6.6 10 62 M6 DIN 912 0.03
Get quote
/storage/D22BA1ECEA7D00B915E8212E30C8F07974C14728EAE42B9331E24B7F91939B46/fb4775255d784fc6abc8aa6b2c340b54/stp/media/3d18a8402619404f91c1a93840b2da81/CAD_FixingSystem-48640_FixingSystem_Rollco.stp 2 CTV, CTJ 110 T3 126 140 20 8.50 4.50 20 7 Ø 5.5 10 77 M5 DIN 912 0.03
Get quote
/storage/92C8BD12A8BBC5AB3899D0A01100F1D994F16706C079D3EEE9EB7C3AA7E72D97/beb4899fdda44254859d772e033d0c0e/stp/media/023bfd1b09b241308f4302fbed879ae3/CAD_FixingSystem-46995_FixingSystem_Rollco.stp 1 CTV, CTJ 110 T3 126 140 30 8.50 4.50 20 7 Ø 5.5 10 107 M5 DIN 912 0.05
Get quote
/storage/E0A1825C1824FACE028C46A1711A497B13B52BF9AD5BFFA5D6D8F455F1B063EC/8929298846a4499a85d860b834b4ac8c/stp/media/a1bd2a8387fe4b9cb6915c085f37fb48/CAD_FixingSystem-55260_FixingSystem_Rollco.stp 2 CTV, CTJ 110 T3 126 140 40 11 3.40 20 7 Ø 6.6 10 142 M6 DIN 912 0.06
Get quote
/storage/DFD465B9F1DD201FFC0D2C035FD5873665F0DC120106ACE94D6C54DB0FCEE733/b9863494a75443cb96f18e9c87e4193b/stp/media/7b71d6dd4bb646aa9fc5211f15a09c26/CAD_FixingSystem-53049_FixingSystem_Rollco.stp 2 CTV, CTJ 200 T2 222 240 40 19 14.80 29 9 Ø 8.5 27.50 78 M8 DIN 912 0.11
Get quote
/storage/B67274B3A559C3EDD11719F43CEBE17BC1FF462E6B80CC7BA528F6B8B1B75139/51bfc949b8ec47af9f6a150f90db4767/stp/media/3ef4e63e7ba542b6aacba630dbce4d4e/CAD_FixingSystem-53050_FixingSystem_Rollco.stp 2 CTV, CTJ 200 T2 222 240 50 19 14.80 29 9 Ø 8.5 27.50 88 M8 DIN 912 0.12
Get quote
/storage/33CE1636C10DB08C7D1123F219C1C09DA77504077BB9B32DD6223C22E54FCF2A/71c6934df0124b0cbe2728c38d01f3ed/stp/media/b8bd09e354c84676a835639bc94b7a4f/CAD_FixingSystem-53051_FixingSystem_Rollco.stp 2 CTV, CTJ 200 T2 222 240 70 19 16.30 29 9 Ø 8.5 27.50 108 M8 DIN 912 0.16
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
