BR---.1100

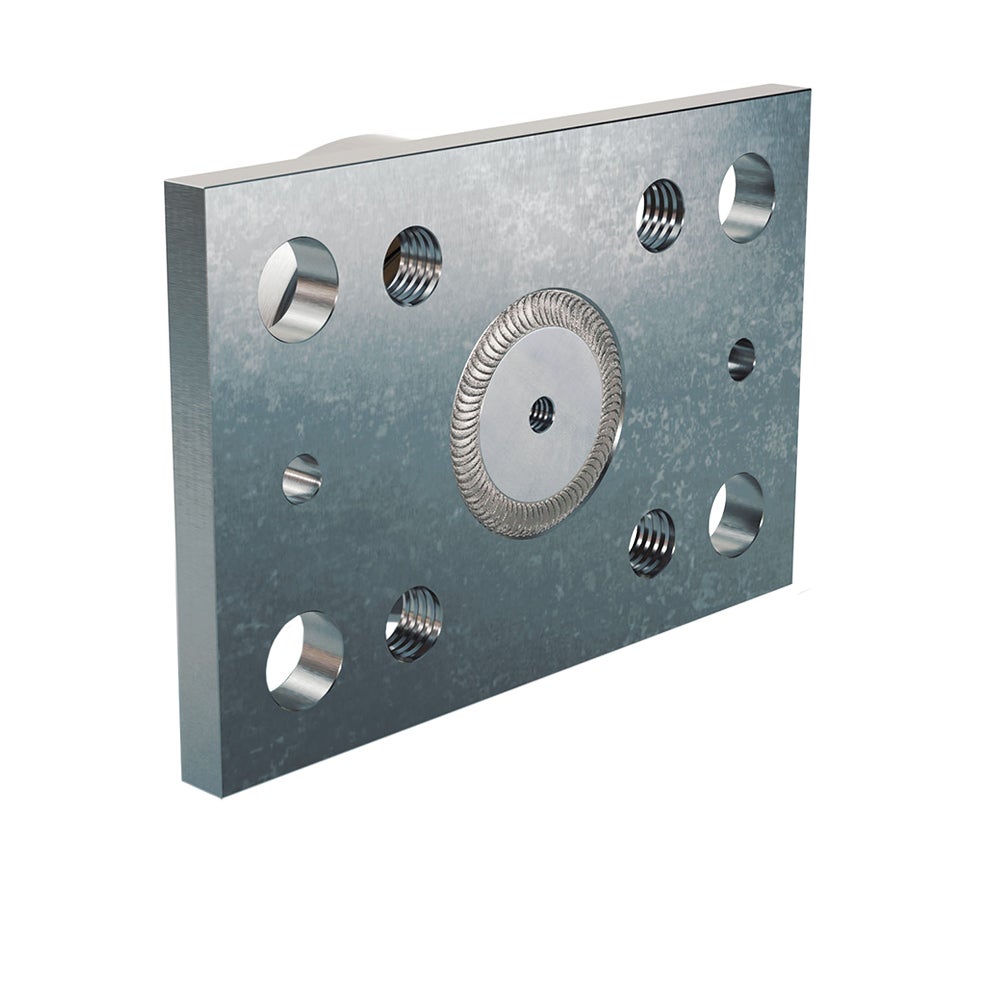

• The fixing element is welded with the respective combined roller
• Special dimensions on request.

* For L measurement, see respective roller.

Order example: Roller + fixing element TR070.0200/BR 1100

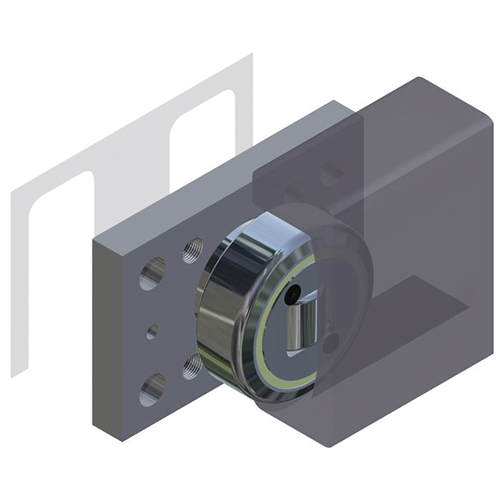

Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm

Dimensions in mm.
Download PDF

Product Information

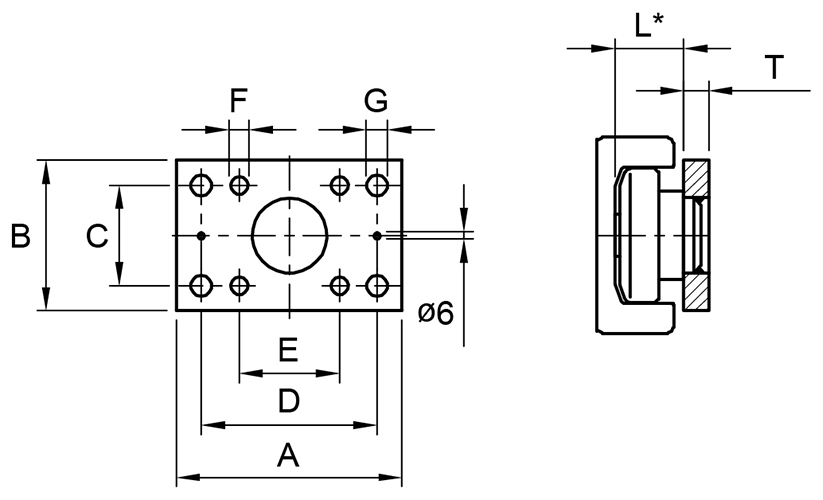

Technical Drawing
Designation Select all Lead Time * G A B D F C T E Remark
2 10.50 100 60 80 M10 40 10 40 Roller: TR050.---, Plate: BR1100, Distance sheet: BR050.1505, BR050.1510
尺寸對照
詢價
2 10.50 100 60 80 M10 40 10 40 Roller: TR060.--- / XTR060.---, Plate: BR1100, Distance sheet: BR060.1505, BR060.1510
尺寸對照
詢價
2 13 120 80 90 M12 50 15 50 Roller: TR070.--- / XTR070.---, Plate: BR1100, Distance sheet: BR070.1505, BR070.1510
尺寸對照
詢價
2 13 120 80 90 M12 50 15 50 Roller: TR080.--- / XTR080.---, Plate: BR1100, Distance sheet: BR080.1505, BR080.1510
尺寸對照
詢價
2 17 160 100 120 M16 60 20 60 Roller: TR090.--- / XTR090.---, Plate: BR1100, Distance sheet: BR090.1505, BR090.1510
尺寸對照
詢價
2 17 180 120 140 M16 80 20 80 Roller: TR110.--- / XTR110.---, Plate: BR1100, Distance sheet: BR110.1505, BR110.1510
尺寸對照
詢價
2 17 180 120 140 M16 80 20 80 Roller: TR120.--- / XTR120.---, Plate: BR1100, Distance sheet: BR120.1505, BR120.1510
尺寸對照
詢價
2 17 200 150 160 M16 100 20 100 Roller: TR150.--- / XTR150.---, Plate: BR1100, Distance sheet: BR150.1505, BR150.1510
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
