PAS ---.0360

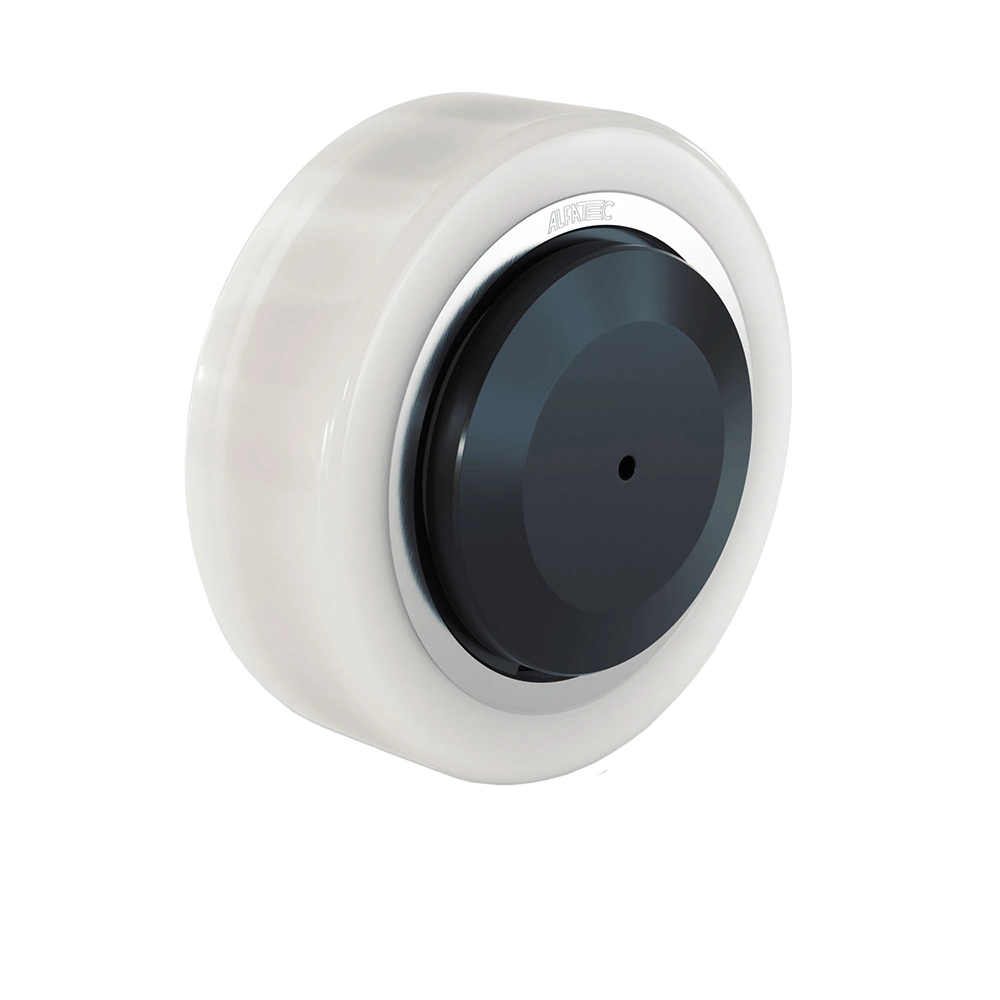

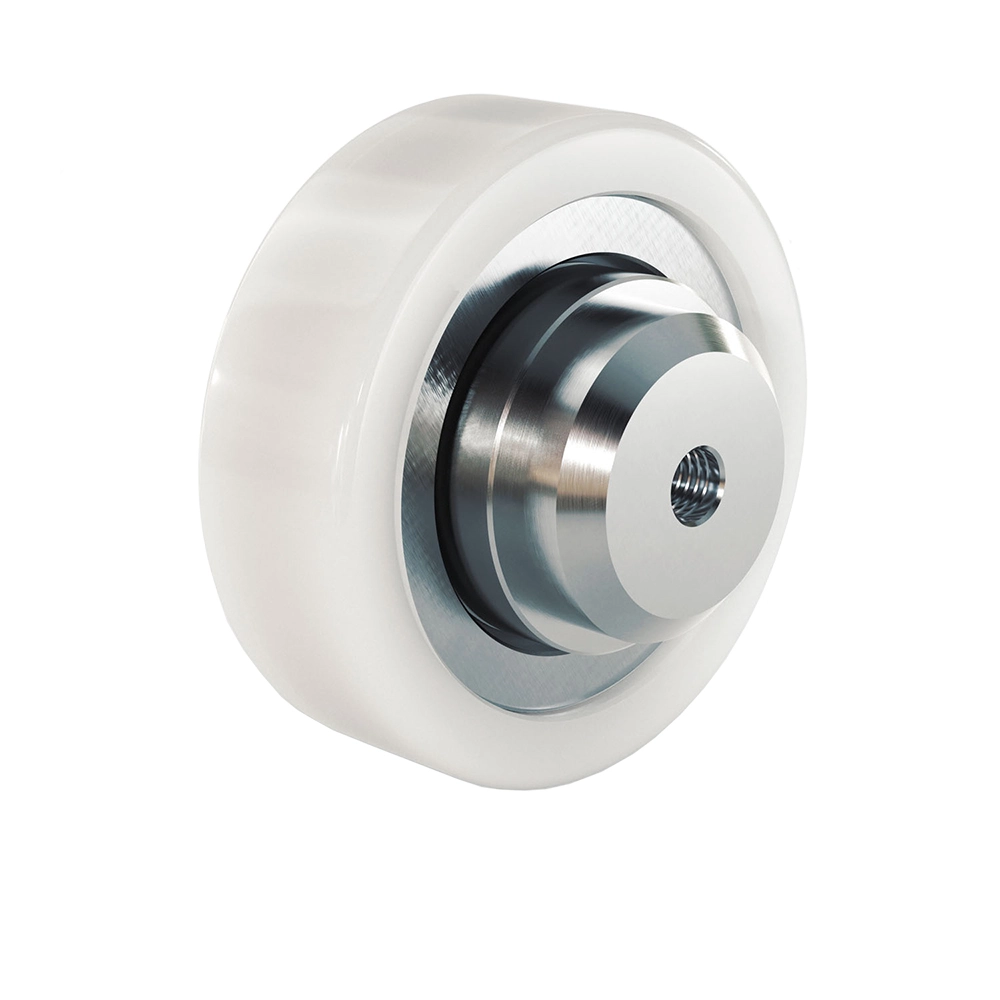

• Polyamide roller combined – fixed with oilamide sliding block
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%

Use profile UP---.0730. See Fixing element rectangular and square.

Order example: Roller + fixing plate PAS040.0360/BQ 1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

Dimensions in mm.
Download PDF

Product Information

Temperature: Maximum working temperature 80° C.
Speed: Travel speed up to 5 m/sec
Additional Drawing 1
Designation Select all Lead Time * System Load Capacity Radial System Load Capacity Axial Profile
2 900 N 400 N UP---.0730
尺寸對照
詢價
2 1200 N 400 N UP---.0730
尺寸對照
詢價
2 1500 N 600 N UP---.0730
尺寸對照
詢價
2 2500 N 600 N UP---.0730
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

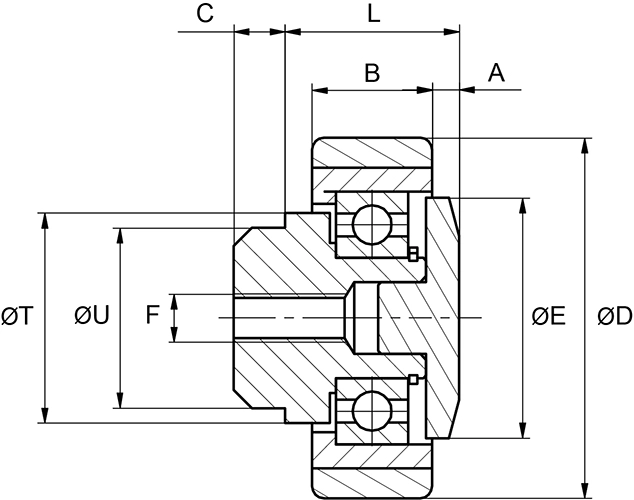

Technical Drawing
Designation Select all A B C D E F L T U
2.80 15 2.80 40 20 M6 24 25 20
尺寸對照
詢價
5 15 5 52.50 31 M8 27 35 30
尺寸對照
詢價
4.50 18 8.50 62.50 40 M8 29 35 30
尺寸對照
詢價
6.30 25 8 101.20 64 — 41 50 45
尺寸對照
詢價
  • STOCK ITEM
    Light U-Profile, good weldability and available in various surfaces
  • Fixing Element Square - welded with the combined roller
  • Fixing Element Rectangular - welded with the combined roller
