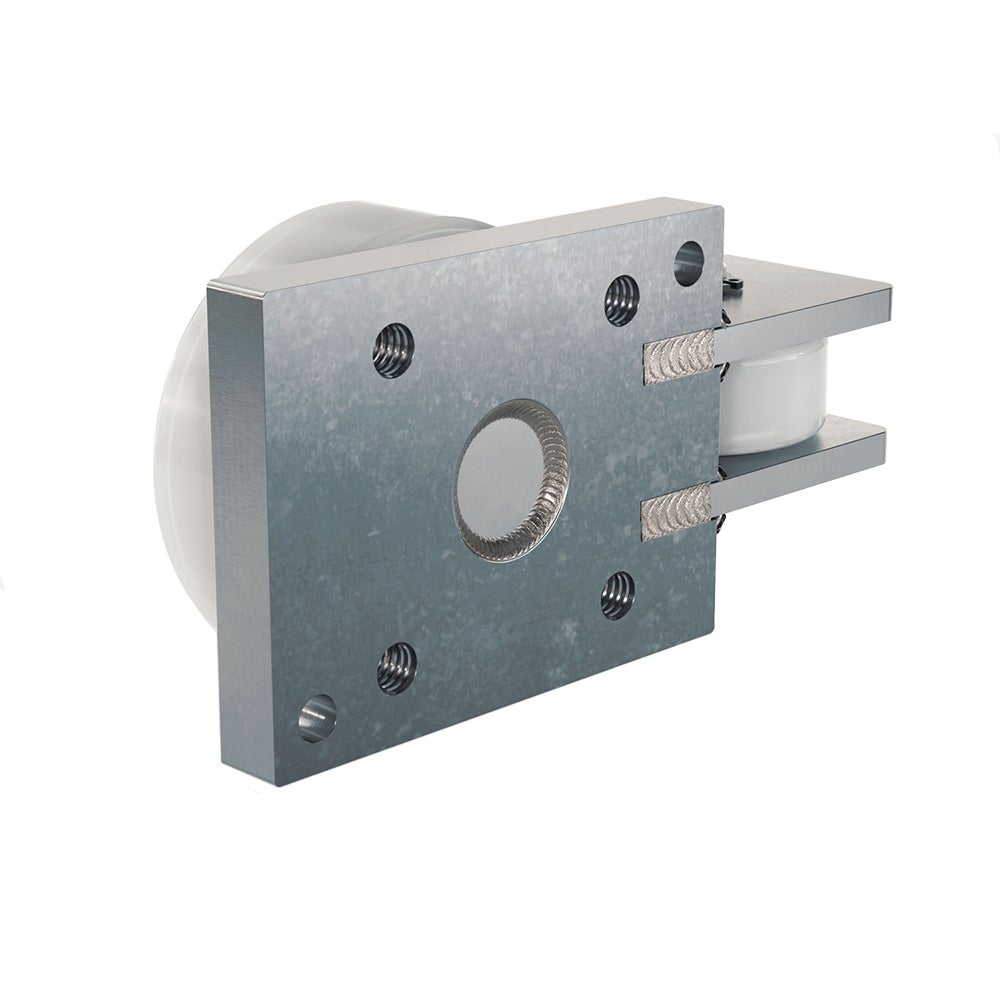

PSAS ---.6200

• Polyamide roller combined – fixed axial roller with higher load capacity
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%
Use profile UP---.0730

Order example: Roller + fixing plate PAS040.0360/BQ1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

Dimensions in mm.
Download PDF

Product Information

Temperature: Maximum working temperature 80° C
Speed: Travel speed up to 5 m/sec
Additional Drawing 1
Designation Select all Lead Time * System Load Capacity Radial System Load Capacity Axial Profile
2 1500 N 900 N UP---.0730
尺寸對照
詢價
2 2500 N 1800 N UP---.0730
尺寸對照
詢價
2 6000 N 2500 N UP---.0730
尺寸對照
詢價
2 8000 N 5000 N UP---.0730
尺寸對照
詢價
2 10000 N 5000 N UP---.0730
尺寸對照
詢價
2 15000 N 6500 N UP---.0730
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

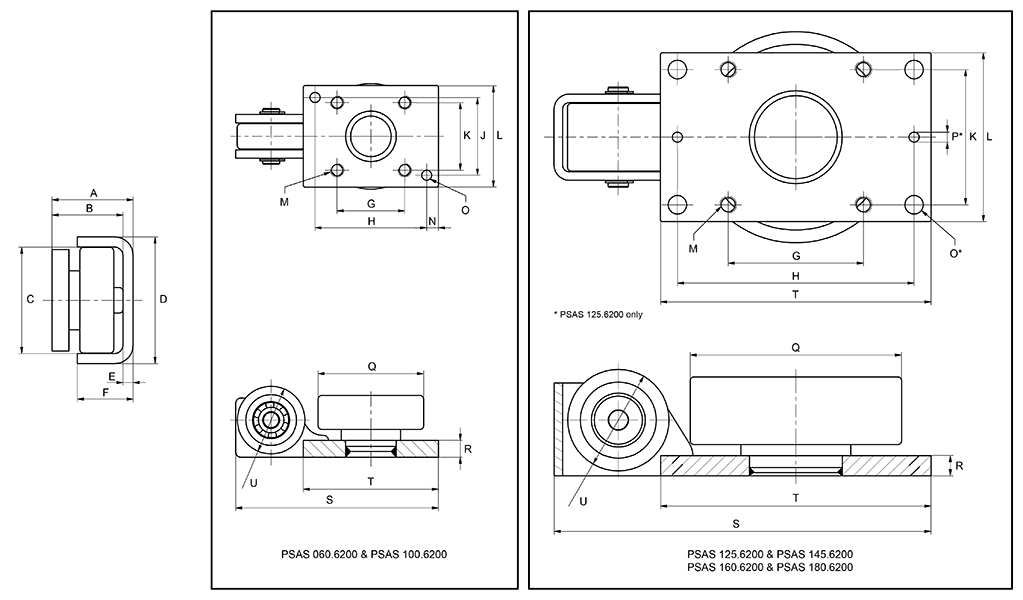

Technical Drawing
Designation Select all A B C D E F G H J K L M N O P Q R S T U
48 42 63 75 6 33 40 66 46 40 60 4 x M8 7 2 x Ø6 62.50 10 120 80 40
尺寸對照
詢價
57 51 102 114 6 40 80 105 80 80 100 4 x M10 7.50 2 x Ø6 101.20 10 160 120 40
尺寸對照
詢價
71 63 126 142 8 56 80 140 80 100 4 x M10 4 x Ø11 2 x Ø6 125 12 223 160 60
尺寸對照
詢價
96 88 146 162 8 65 130 90 120 4 x M16 145 20 263 180 80
尺寸對照
詢價
96 88 159 175 8 73 140 90 120 4 x M16 158 20 273 190 80
尺寸對照
詢價
98 88 180 200 10 70 160 90 120 4 x M16 179 20 295 210 80
尺寸對照
詢價
  • STOCK ITEM
    Light U-Profile, good weldability and available in various surfaces
  • Fixing Element Square - welded with the combined roller
  • Fixing Element Rectangular - welded with the combined roller
