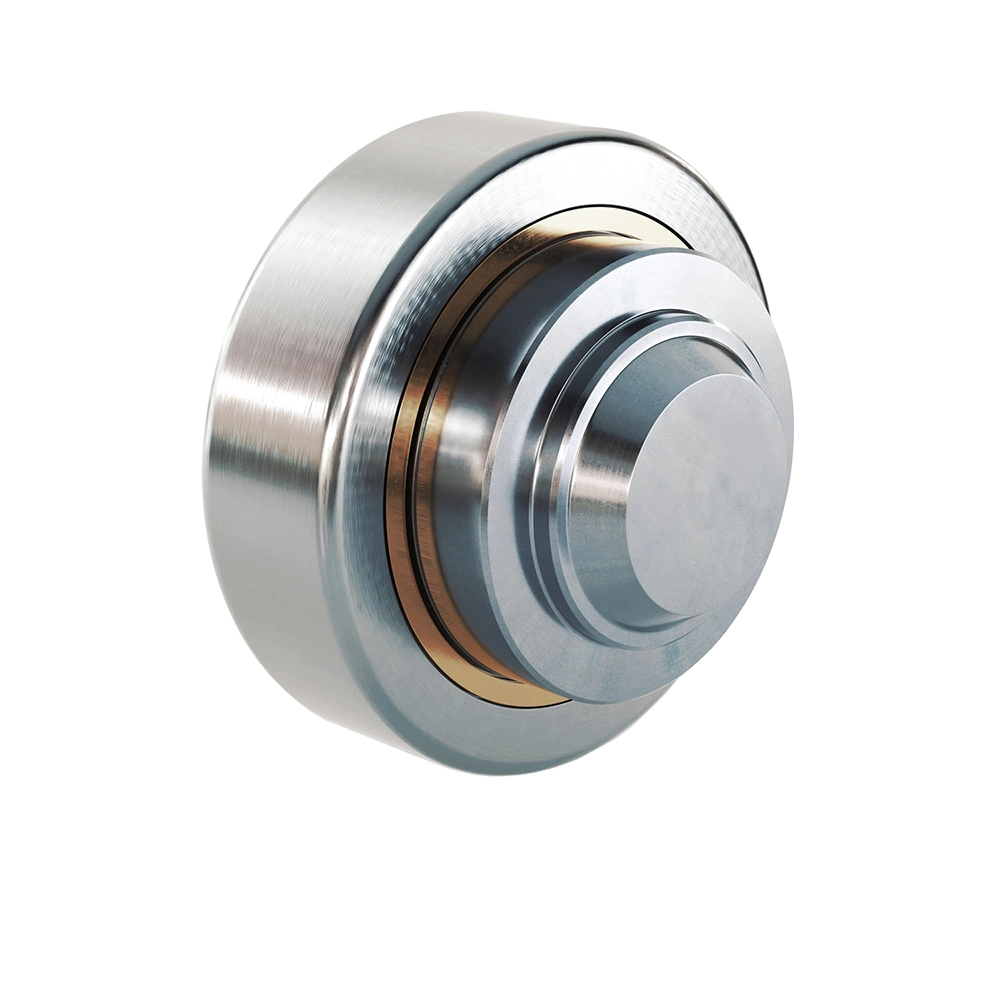

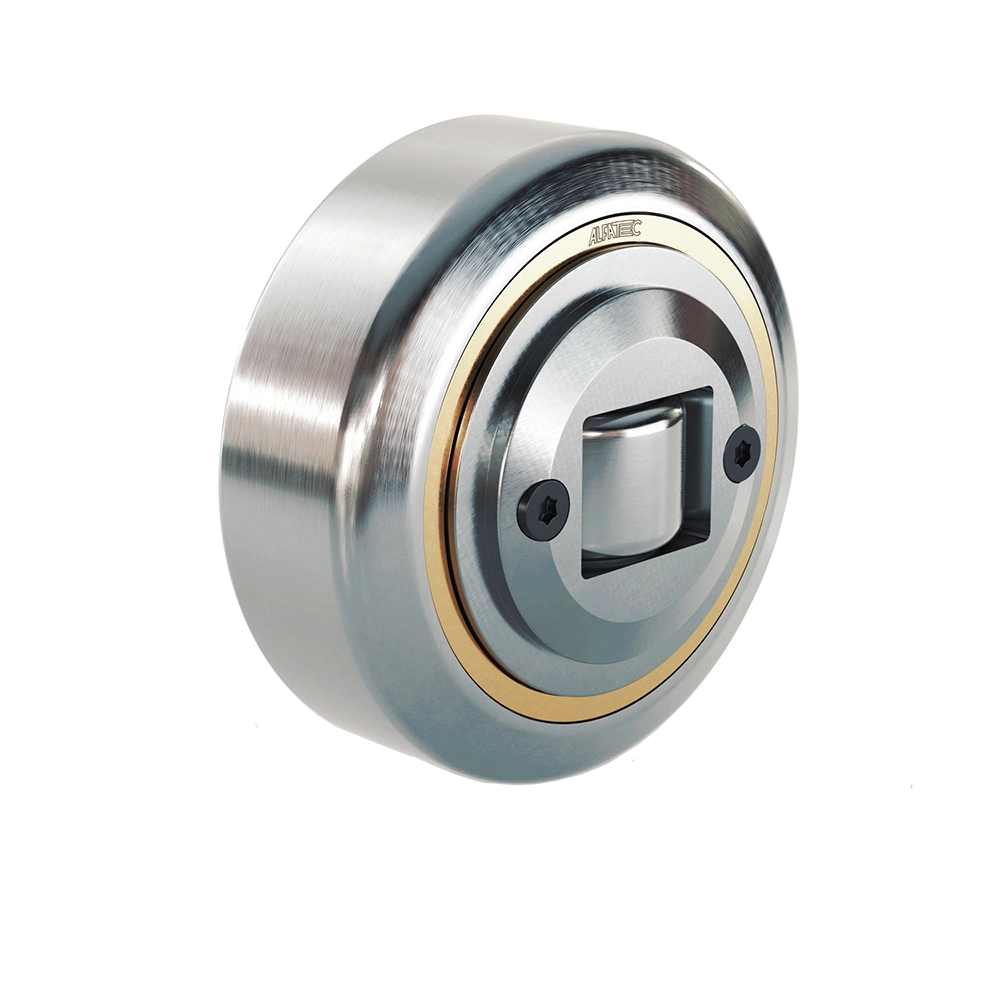

TR---.0300

• Lubricated for lifetime

Use profile UP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

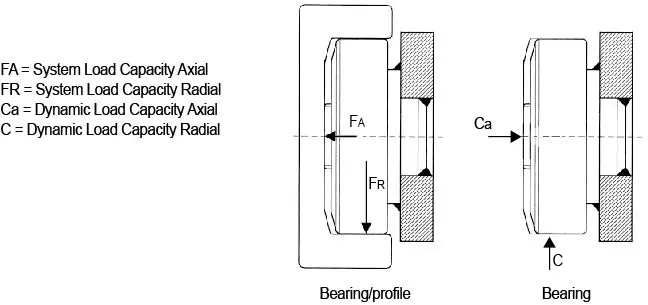

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Read more

Product Information

Roller Type: Standard
Sizes Available: 60; 70; 80; 90; 110; 120; 150
下載PDF檔 code.product.loadingpdf
+ 加入 PDF 目錄
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile
Get quote 2 8870 2950 8000 31000 UP---.0700
Get quote 2 11400 3150 13000 45500 UP---.0700
Get quote 2 12870 5000 14000 48000 UP---.0700
Get quote 2 20370 5100 15000 68000 UP---.0700
Get quote 2 24060 8900 31000 81000 UP---.0700
Get quote 2 33440 9800 31000 110000 UP---.0700
Get quote 2 51940 17400 68000 151000 UP---.0700

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

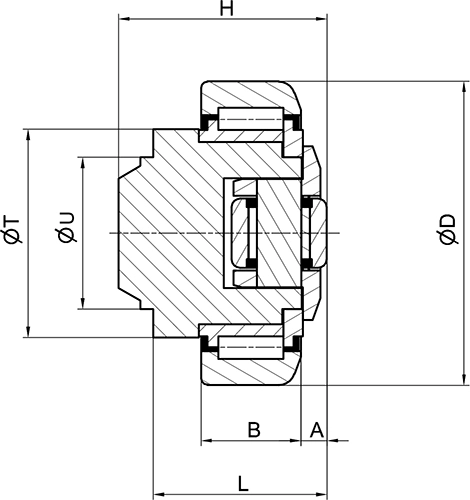

Designation Select all CAD Compare Get quote A B D H L T U
Get quote 5.5 20 62.5 43 33 42 30
Get quote 6.5 23 70.1 48 40 48 35
Get quote 7 23 77.7 50.5 39.5 54 40
Get quote 7 30 88.4 61 48 59 45
Get quote 8 31 107.7 69 55 71 60
Get quote 8 37 123 75.8 59.5 80 60
Get quote 15 45 149 89 69 103 60
