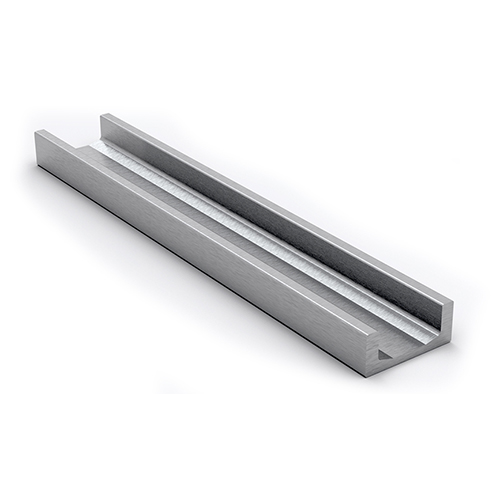

UP---.0700

STOCK ITEM
• Higher wear-resistance
• Fine grained structure
• Easy to weld
• Special machining on request
• Max length in one piece 12 m

Versions of delivery:
Standard UP---.0700
Fine straightened style ± 0,3 mm/m UP---.0701
Sandblasted UP---.0702
Sandblasted + fine straightened style UP---.0703

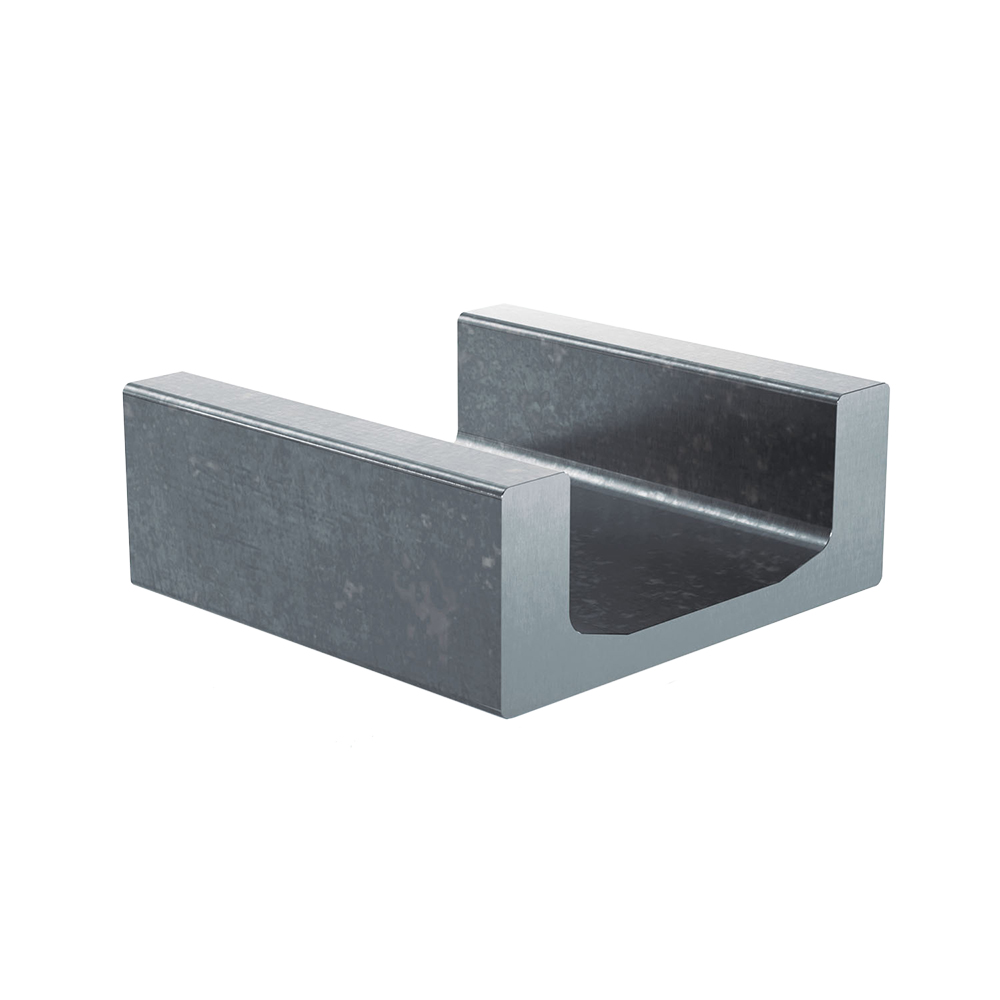

Ordering example: UP 070.0700-2800
U-Profile with inside measurement 70,8 mm, length 2800 mm

Dimensions in mm.
下載PDF檔 code.product.loadingpdf
+ 加入 PDF 目錄

Product Information

Material: 18MnNb 6 with plenty more load capacity by add-on of Niob (Nb) and vanadium (V)
U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
U-Rail_Profile_Machining.pdf
CAD-Drawing
Designation Select all Lead Time * Weight (kg/m) Compare
1 10.50
Get quote
2 14.80
Get quote
2 20.90
Get quote
2 28.60
Get quote
2 36.00
Get quote
2 42.80
Get quote
2 52.30
Get quote
2 78.51
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

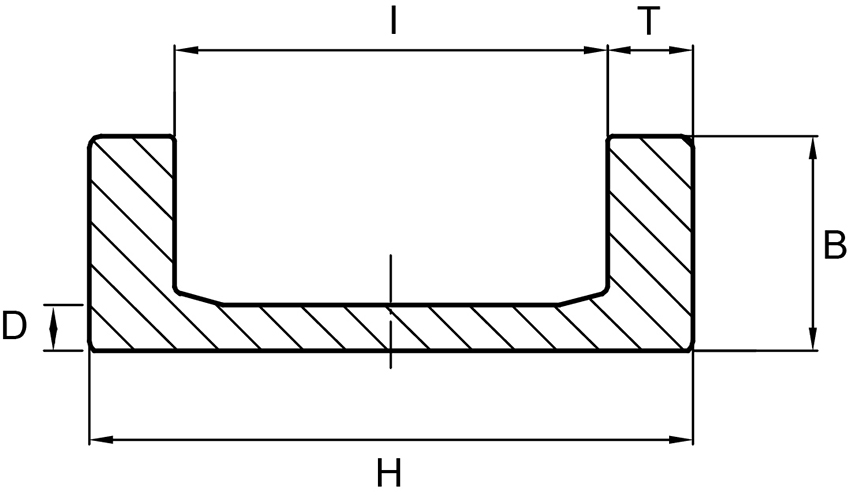

Designation Select all B D H I T Compare
36 7 ±0.5 86.5 62.7 +0.8 12 ±0.5
Get quote
40 ±0.8 7.7 ±0.5 103.2 70.8 ±0.5 16.2 ±0.5
Get quote
41 ±0.5 10.8 ±0.5 121.3 78.7 ±0.5 21.2 ±0.5
Get quote
53 ±0.5 12.7 ±0.5 135.4 89.4 ±0.5 23 ±0.5
Get quote
61.2 ±0.8 14 ±0.5 157.2 108.4 ±0.5 24.4 ±0.5
Get quote
66.2 ±0.8 16.2 ±0.5 175 123.8 ±0.5 25.6 ±0.5
Get quote
71.2 ±0.8 19.4 ±0.5 201.5 150.1 ±0.5 25.7 ±0.5
Get quote
90 ±0.6 19.4 ±0.5 252.5 181.1 ±0.6 35.7 ±0.6
Get quote
