UP---.0730

STOCK ITEM
• Higher wear-resistance
• Fine grained structure
• Easy to weld
• Special machining on request
• Max length in one piece 8 m

Ordering example: UP 050.0730 - 2800
U-Profile with inside measurement 53 mm, length 2800 mm

Dimensions in mm.
Download PDF

Product Information

Material: S235J2
Technical Drawing
Designation Select all Lead Time * Weight
2 2.62 kg/m
尺寸對照
詢價
1 5.3 kg/m
尺寸對照
詢價
2 5.8 kg/m
尺寸對照
詢價
2 8.3 kg/m
尺寸對照
詢價
2 14.3 kg/m
尺寸對照
詢價
2 16.9 kg/m
尺寸對照
詢價
2 18.41 kg/m
尺寸對照
詢價
2 24.1 kg/m
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all B H I T
24 48.50 40.50 4
尺寸對照
詢價
30 65 53 6
尺寸對照
詢價
33 75 63 6
尺寸對照
詢價
40 114 102 6
尺寸對照
詢價
56 142 126 8
尺寸對照
詢價
65 162 146 8
尺寸對照
詢價
73 175 159 8
尺寸對照
詢價
70 200 180 10
尺寸對照
詢價
  • Roller combined fixed with oilamide sliding block for profile UP---.0730
  • Polyamide roller combined fixed, for profile UP---.0730
  • Polyamide roller combined fixed axial, for profile UP---.0730
  • Standard Roller Fixed, for profile UP---.0700/0730

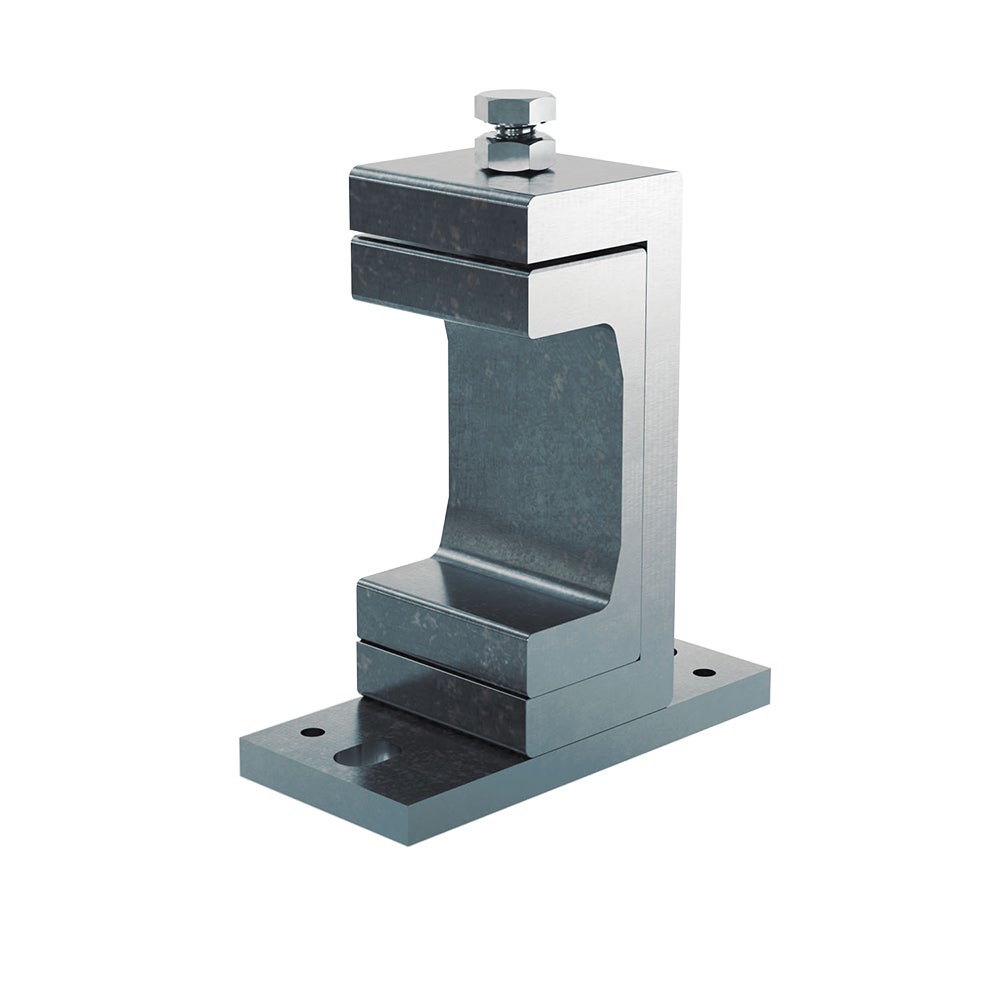

  • Clamp Console for U-profiles and precision U-profiles from size 050 up to 090
