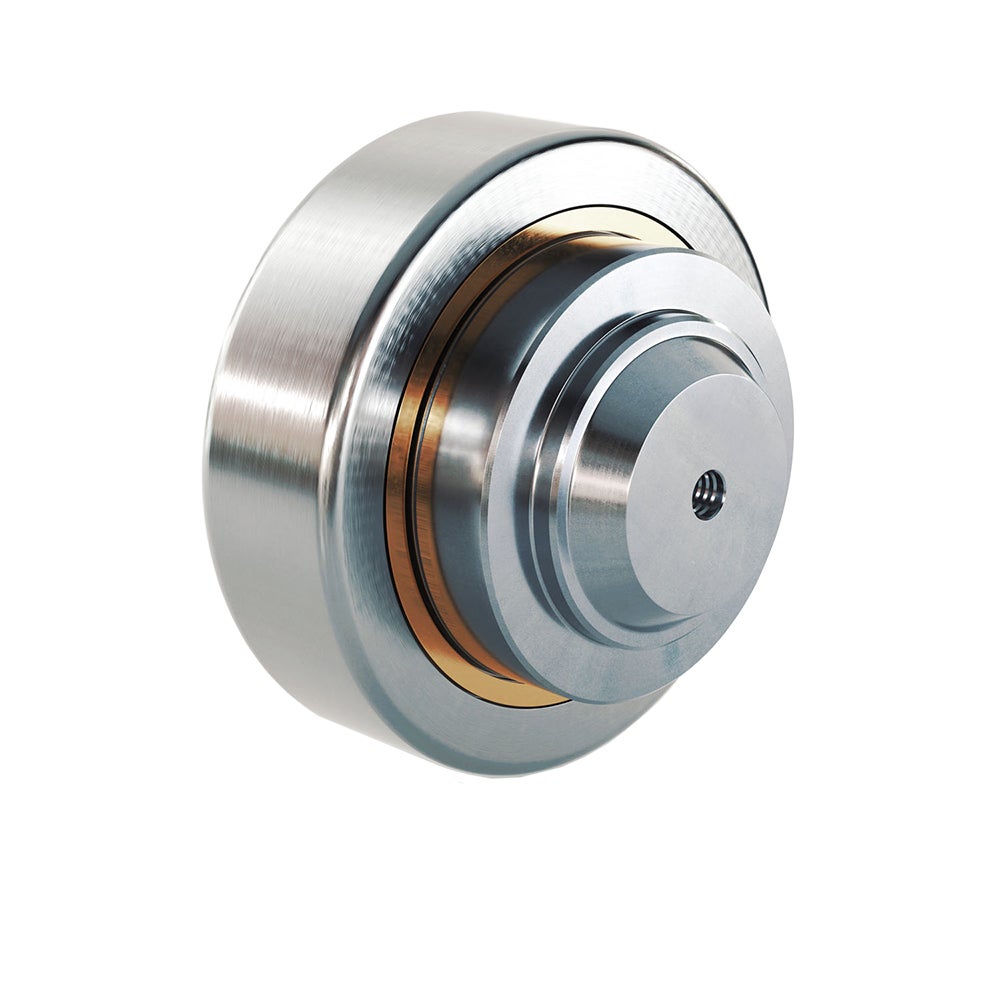

TR---. 0200

• Lubricated for lifetime
• Optional from size 60 relubricable.

Use profile UP---.0700. Profile UP---.0730 for TR050.0200
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100
C = Dynamic load capacity radial bearing
Ca = Static load capacity axial bearing

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.
Dimensions in mm.
Download PDF

Product Information

Additional Drawing 1
Designation Select all Lead Time * System Load Capacity Radial System Load Capacity Axial Dynamic Load Capacity Radial Profile Dynamic Load Capacity Axial
2 5300 N 2000 N 24500 N UP---.0730 7500 N
尺寸對照
詢價
2 8870 N 2950 N 31000 N UP---.0700 11000 N
尺寸對照
詢價
2 11400 N 3150 N 45500 N UP---.0700 13000 N
尺寸對照
詢價
2 12870 N 5000 N 48000 N UP---.0700 18000 N
尺寸對照
詢價
2 20370 N 5100 N 68000 N UP---.0700 23000 N
尺寸對照
詢價
2 24060 N 8900 N 81000 N UP---.0700 31000 N
尺寸對照
詢價
2 33440 N 9800 N 110000 N UP---.0700 43000 N
尺寸對照
詢價
2 51940 N 17400 N 151000 N UP---.0700 68000 N
尺寸對照
詢價
2 76000 N 23000 N 207000 N UP---.0700 73000 N
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

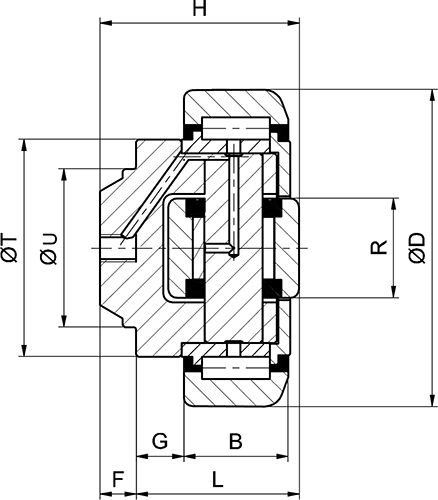

Technical Drawing
Designation Select all B D F G H L R T U
17 52.50 6 5 33 27 16 40 30
尺寸對照
詢價
20 62.50 7 9 37.50 30.50 20 42 30
尺寸對照
詢價
23 70.10 8 10.50 44 36 22 48 35
尺寸對照
詢價
23 77.70 11.50 10.50 48 36.50 24 54 40
尺寸對照
詢價
30 88.40 13 10.50 57 44 26 59 45
尺寸對照
詢價
31 107.70 14 20 69 55 34 71 60
尺寸對照
詢價
37 123 16.30 14 72.30 56 40 80 60
尺寸對照
詢價
45 149 20 8.50 78.50 58.50 50 103 60
尺寸對照
詢價
57.30 180 19.40 12.50 95.70 76.30 60 124 100
尺寸對照
詢價
  • STOCK ITEM
    Standard U-Profile, good weldability and available in various surfaces
  • STOCK ITEM
    Light U-Profile, good weldability and available in various surfaces
  • Fixing Element Square - welded with the combined roller
  • Fixing Element Rectangular - welded with the combined roller
  • I-Profile, good weldability and available in various surfaces
