BQ---.1000

• The fixing element is welded with the respective combined roller
• Special dimensions on request.

* For L measurement, see respective roller.

Order example: Roller + Mounting plate TR070.0200/BQ1000

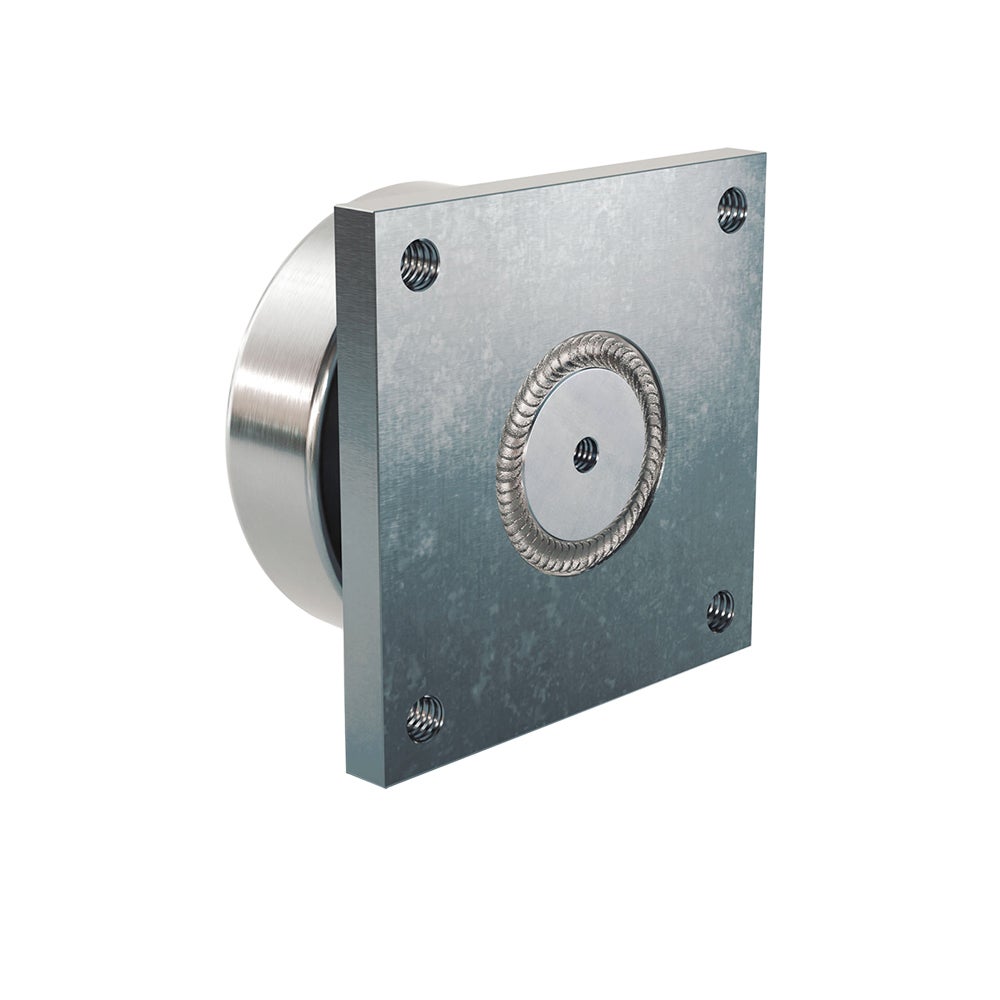

Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm

Dimensions in mm.
Download PDF

Product Information

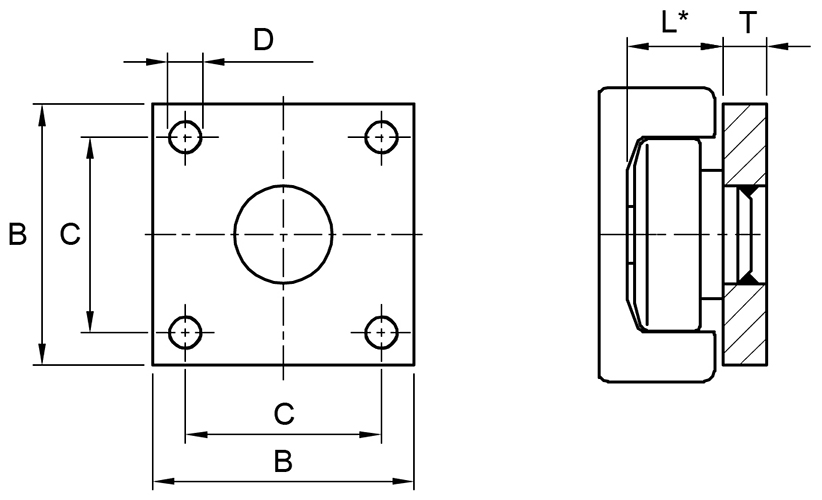

Technical Drawing
Designation Select all Lead Time * B D C T Remark
2 60 M8 40 10 Roller: TR050.---, Plate: BQ1000, Distance sheet: BQ050.1405, BQ050.1410
尺寸對照
詢價
2 70 M10 50 12 Roller: TR060.--- / XTR060---, Plate: BQ1000, Distance sheet: BQ060.1405, BQ060.1410
尺寸對照
詢價
2 80 M12 60 15 Roller: TR070.--- / XTR070---, Plate: BQ1000, Distance sheet: BQ070.1405, BQ070.1410
尺寸對照
詢價
2 100 M12 70 15 Roller: TR080.--- / XTR080---, Plate: BQ1000, Distance sheet: BQ080.1405, BQ080.1410
尺寸對照
詢價
2 120 M16 90 20 Roller: TR090.--- / XTR090---, Plate: BQ1000, Distance sheet: BQ090.1405, BQ090.1410
尺寸對照
詢價
2 140 M16 100 20 Roller: TR110.--- / XTR110---, Plate: BQ1000, Distance sheet: BQ110.1405, BQ110.1410
尺寸對照
詢價
2 140 M16 100 20 Roller: TR120.--- / XTR120---, Plate: BQ1000, Distance sheet: BQ120.1405, BQ120.1410
尺寸對照
詢價
2 160 M16 120 25 Roller: TR150.--- / XTR150---, Plate: BQ1000, Distance sheet: BQ150.1405, BQ150.1410
尺寸對照
詢價
2 200 M20 150 30 Roller: TR180.---, Plate: BQ1000, Distance sheet: BQ180.1405, BQ180.1410
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
