STR---.6200

• This roller with axial bearing gives 40% higher load capacity
• Lubricated for lifetime
• Special dimensions on request

Use profile UP---.0700

Order example: STR 080.6200

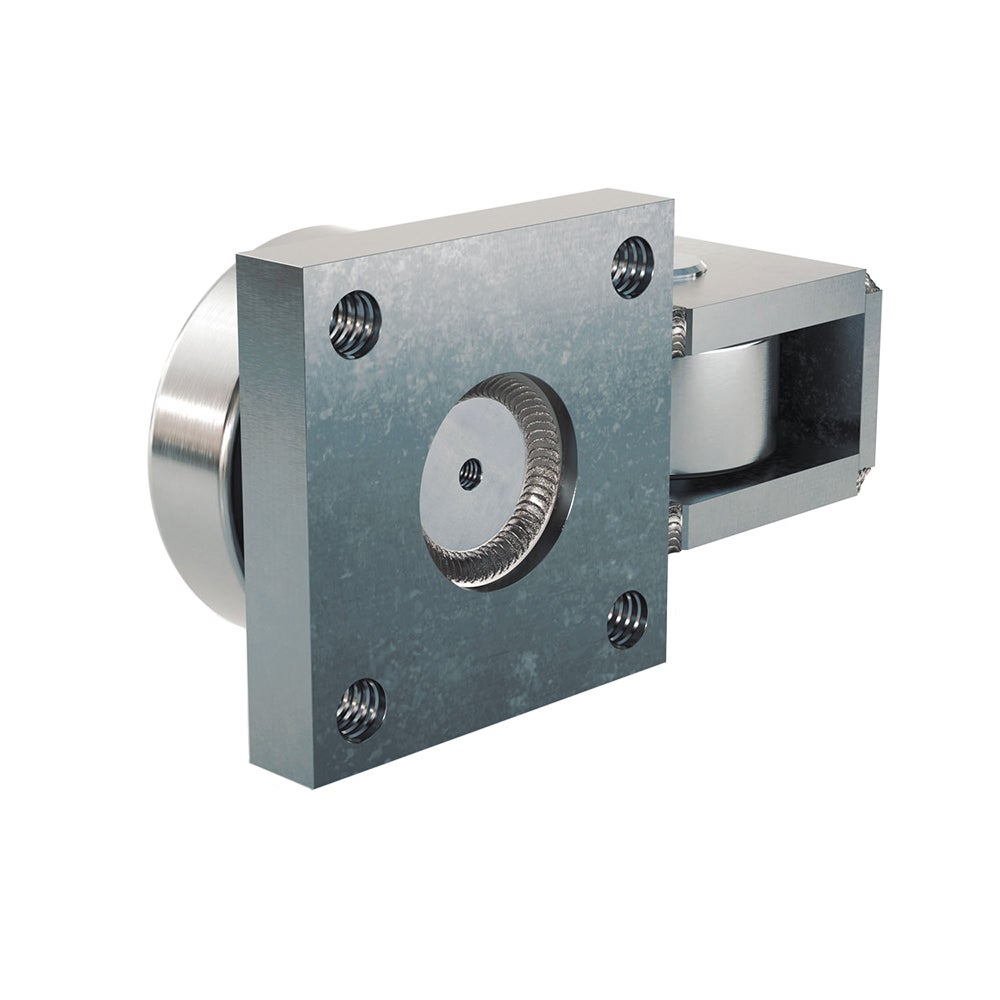

Standard roller STR 080.6200

Dimensions in mm.
Download PDF

Product Information

Additional Drawing 1

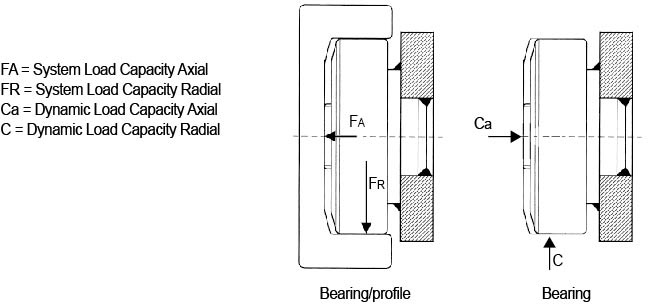

Designation Select all Lead Time * System Load Capacity Radial System Load Capacity Axial Profile
2 8870 N 7000 N UP---.0700
尺寸對照
詢價
2 11400 N 11000 N UP---.0700
尺寸對照
詢價
2 12870 N 11000 N UP---.0700
尺寸對照
詢價
2 20370 N 13000 N UP---.0700
尺寸對照
詢價
2 20000 N 24060 N UP---.0700
尺寸對照
詢價
2 33440 N 20000 N UP---.0700
尺寸對照
詢價
2 51940 N 20000 N UP---.0700
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

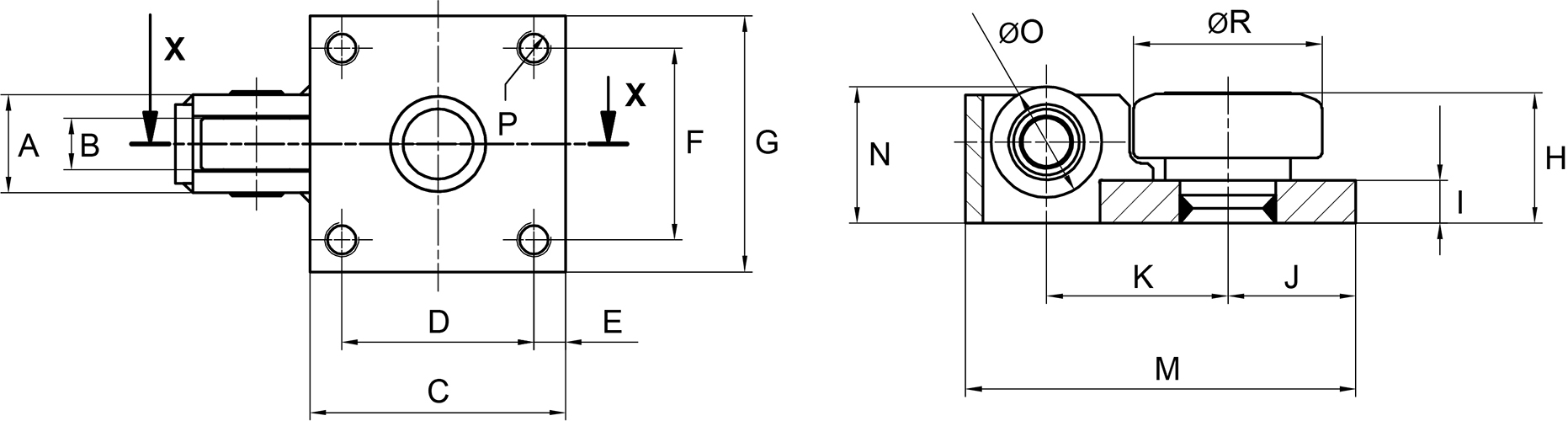

Technical Drawing
Designation Select all A B C D E F G H I J K M N O P R
38 20 70 50 10 50 70 41.50 12 35 55 118 42.50 Ø 40 4 x M10 Ø 62,5
尺寸對照
詢價
42 24 80 60 10 60 80 49 15 40 65 137 51 Ø 47 4 x M12 Ø 70,1
尺寸對照
詢價
46 24 100 70 15 70 100 48.50 15 50 75 157 51.50 Ø 47 4 x M12 Ø 77,7
尺寸對照
詢價
46 24 120 90 15 90 120 61 20 60 85 183 64 Ø 52 4 x M16 Ø 88,4
尺寸對照
詢價
54 28 140 100 20 100 140 71.50 20 70 105 223 75 Ø 72 4 x M16 Ø 107,1
尺寸對照
詢價
58 28 140 100 20 100 140 71.50 20 70 107 225 76 Ø 72 4 x M16 Ø 123
尺寸對照
詢價
54 28 160 120 20 120 160 79 25 80 120 248 83.50 Ø 72 4 x M16 Ø 149
尺寸對照
詢價
  • STOCK ITEM
    Standard U-Profile, good weldability and available in various surfaces
  • I-Profile, good weldability and available in various surfaces
