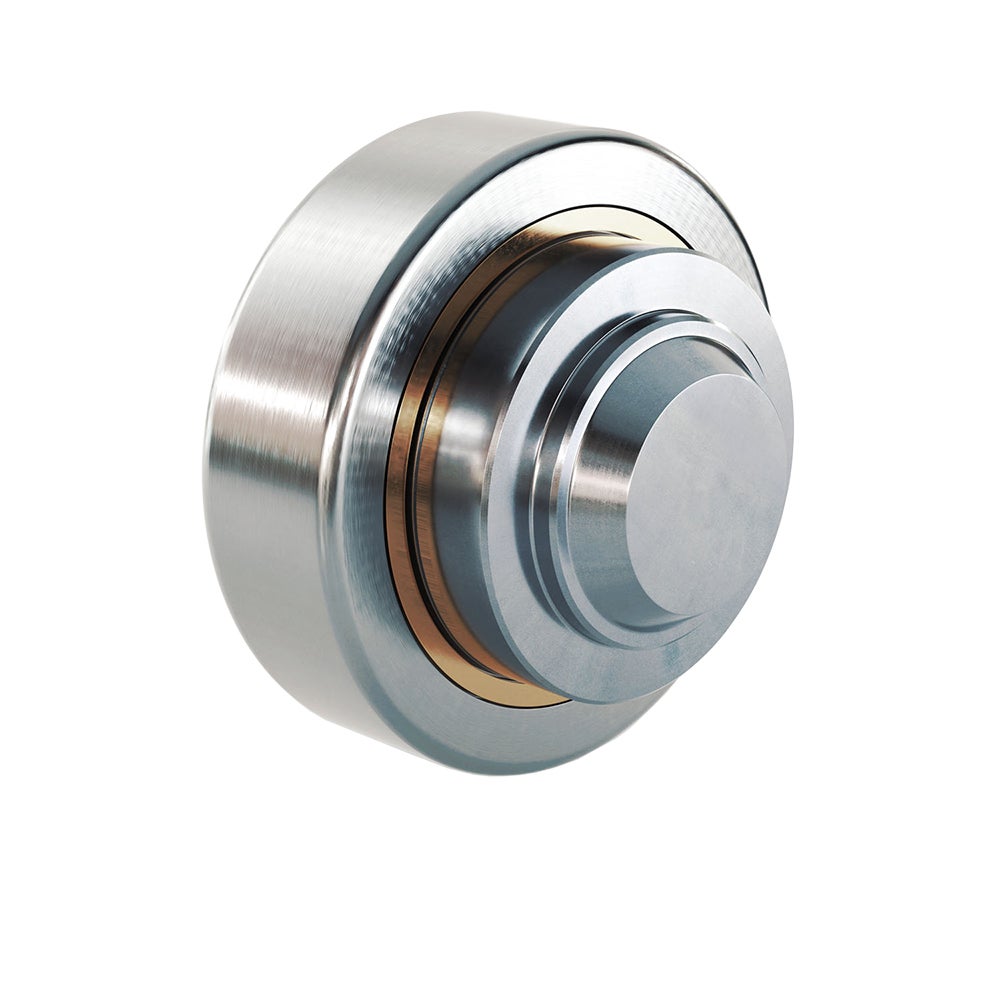

XTR---.0300

• Combined – adjustable with insert washer
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Adjustment of dimension A by using a shim

Use profile XUP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Download PDF

Product Information

Additional Drawing 1
Designation Select all Lead Time * System Load Capacity Radial System Load Capacity Axial Dynamic Load Capacity Radial Profile Dynamic Load Capacity Axial
2 15390 N 3800 N 31000 N XUP---.0700 8000 N
尺寸對照
詢價
2 16430 N 4100 N 45500 N XUP---.0700 13000 N
尺寸對照
詢價
2 18210 N 6500 N 48000 N XUP---.0700 14000 N
尺寸對照
詢價
2 31680 N 6600 N 68000 N XUP---.0700 15000 N
尺寸對照
詢價
2 34850 N 11500 N 81000 N XUP---.0700 31000 N
尺寸對照
詢價
2 47430 N 12700 N 110000 N XUP---.0700 31000 N
尺寸對照
詢價
2 82190 N 22600 N 151000 N XUP---.0700 68000 N
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

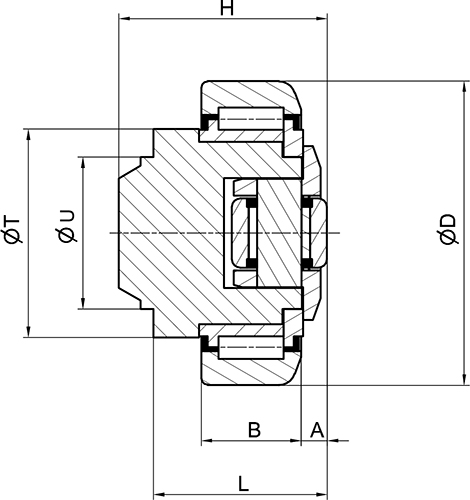

Technical Drawing
Designation Select all A B D H L T U
5.50 20 65.50 43 33 42 30
尺寸對照
詢價
6.50 23 73.80 48 40 48 35
尺寸對照
詢價
7 23 81.70 50.50 39.50 54 40
尺寸對照
詢價
7 30 92.40 61 48 59 45
尺寸對照
詢價
8 31 111.40 69 55 71 60
尺寸對照
詢價
8 37 126.80 75.80 59.50 80 60
尺寸對照
詢價
15 45 153.10 89 69 103 60
尺寸對照
詢價
  • Fixing Element Square - welded with the combined roller
  • Fixing Element Rectangular - welded with the combined roller
  • STOCK ITEM
    Heavy U-Profile, extra strong, extra sustainable
