XSTR---.6200

• Axial roller with 35% higher load capacity.
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Special dimensions on request

Use profile XUP---.0700

Order example: XSTR080.6200

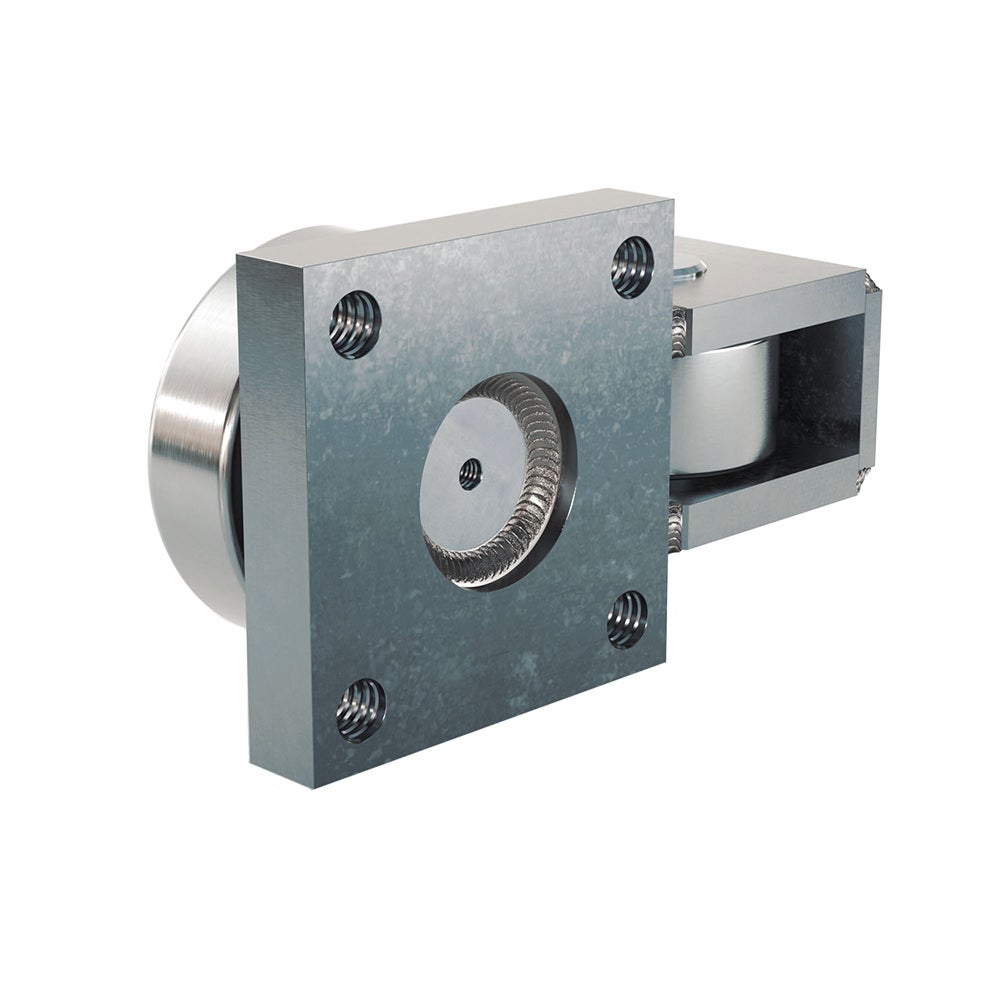

Heavy roller XSTR080.6200

Dimensions in mm.
Download PDF

Product Information

Additional Drawing 1
Designation Select all Lead Time * System Load Capacity Radial System Load Capacity Axial Profile
2 15390 N 9000 N XUP---.0700
尺寸對照
詢價
2 16430 N 14000 N XUP---.0700
尺寸對照
詢價
2 18210 N 14000 N XUP---.0700
尺寸對照
詢價
2 31680 N 17000 N XUP---.0700
尺寸對照
詢價
2 34850 N 27000 N XUP---.0700
尺寸對照
詢價
2 47430 N 27000 N XUP---.0700
尺寸對照
詢價
2 82190 N 27000 N XUP---.0700
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

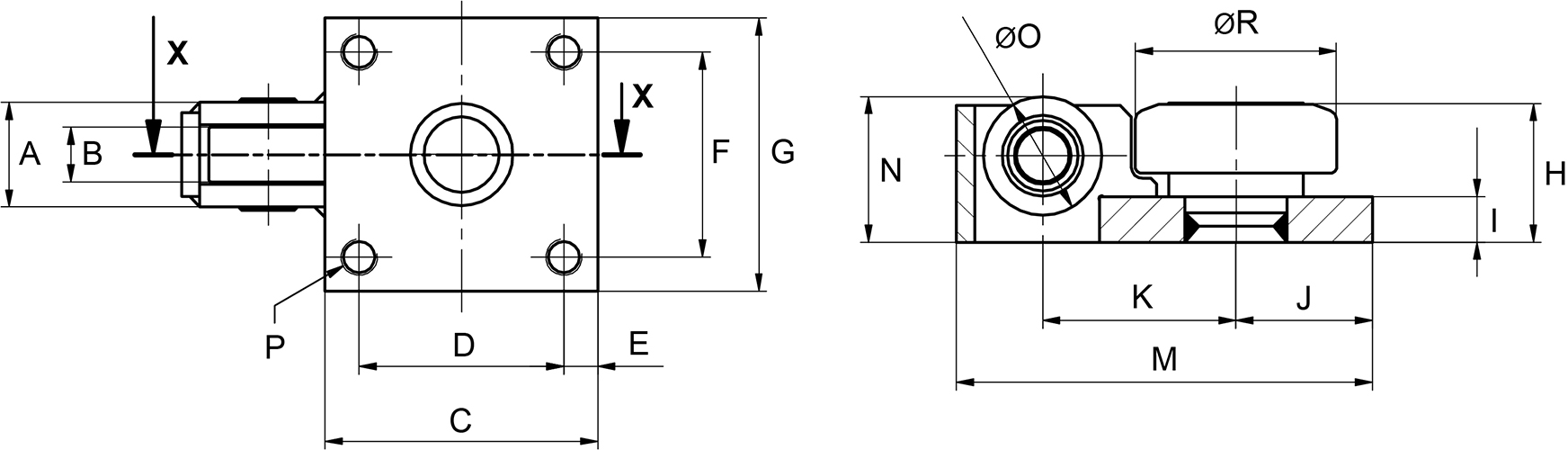

Technical Drawing
Designation Select all A B C D E F G H I J K M N O P R
38 20 70 50 10 50 70 41.50 12 35 55 118 42.50 Ø 40 4 x M10 Ø 65,5
尺寸對照
詢價
42 24 80 60 10 60 80 49 15 40 65 137 51 Ø 47 4 x M12 Ø 73,8
尺寸對照
詢價
46 24 100 70 15 70 100 48.50 15 50 75 157 51.50 Ø 47 4 x M12 Ø 81,7
尺寸對照
詢價
46 24 120 90 15 90 120 61 20 60 85 183 64 Ø 52 4 x M16 Ø 92,4
尺寸對照
詢價
54 28 140 100 20 100 140 71.50 20 70 105 223 75 Ø 72 4 x M16 Ø 111,4
尺寸對照
詢價
54 28 140 100 20 100 140 71.50 20 70 107 225 76 Ø 72 4 x M16 Ø 126,8
尺寸對照
詢價
54 28 160 120 20 120 160 79 25 80 80 248 83.50 Ø 72 4 x M16 Ø 153,1
尺寸對照
詢價
  • STOCK ITEM
    Heavy U-Profile, extra strong, extra sustainable
