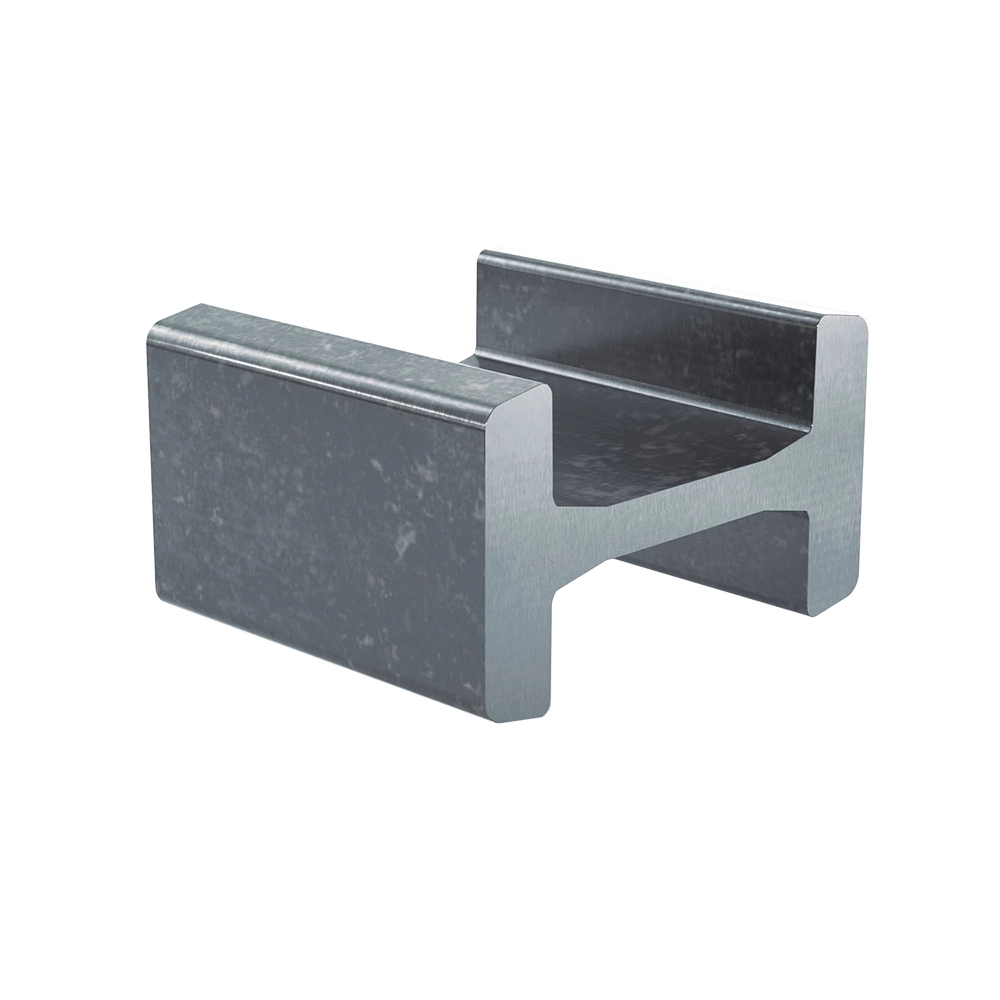

IP---.0800

• Higher wear resistance
• Fine grained structure
• Easy to weld

Versions of delivery:
Standard IP---.0800
Fine straightened style ± 0,3 mm/m IP---.0801
Sandblasted IP---.0802
Sandblasted + fine straightened style IP---.0803

Ordering example: IP 070.0800-2800 (I-Profile with inside measurement 70 mm, length 2800 mm)

Dimensions in mm.
Download PDF

Product Information

Material: Material 18MnNb 6 with plenty more load capacity by add-on of Niob (Nb)
Technical Drawing
Designation Select all Lead Time * Weight
2 21,0 kg/m
尺寸對照
詢價
2 19,4 kg/m
尺寸對照
詢價
2 25,3 kg/m
尺寸對照
詢價
2 34,0 kg/m
尺寸對照
詢價
2 40,8 kg/m
尺寸對照
詢價
2 51,5 kg/m
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

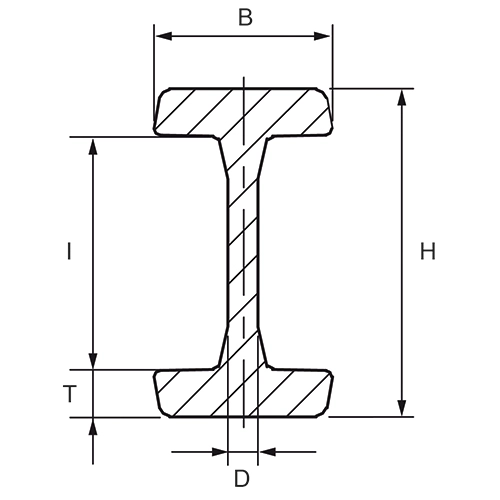

Technical Drawing
Designation Select all B D H I T
72 ±1 14 ±0,5 86.50 62,7 +0,8 12 ±0,5
尺寸對照
詢價
65 ±1 9 ±0,5 98 70 +1 14 ±0,5
尺寸對照
詢價
66 ±1 11 ±0,5 113.90 77,9 +1 18 ±0,5
尺寸對照
詢價
81 ±1,25 12 ±0,5 129.60 88,6 +1 20,5 ±0,5
尺寸對照
詢價
83 ±1 14 ±0,5 152.40 108,4 ±0,5 22 ±0,5
尺寸對照
詢價
90 ±1,3 15 ±0,5 175 ±0,5 123,8 ±0,5 25,6 ±0,5
尺寸對照
詢價
