FDCR

STOCK ITEM
Double Nut with Flange (DIN 69051)
Match with Screw shaft: SR.

Standard nuts are with oil-seals.

We strongly recommend to use the preloaded double nut on C5 ball screw material. The preload in a FDCR nut is according to the catalogue table light preload (P2). If you need a double nut with clearance or a different type of screw material please contact Rollco."

All other dimensions in mm
Download PDF

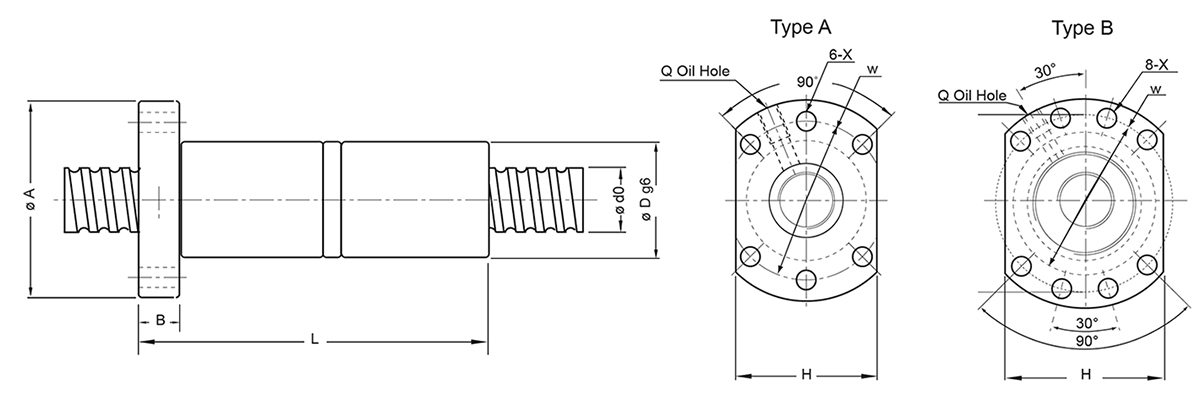

Technical Drawing
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
1 10291 11223
尺寸對照
詢價
2 14833 19571
尺寸對照
詢價
1 16716 25320
尺寸對照
詢價
1 28263 36248
尺寸對照
詢價
1 18874 33383
尺寸對照
詢價
1 47422 76861
尺寸對照
詢價
2 21013 42595
尺寸對照
詢價
1 52964 98826
尺寸對照
詢價
2 58203 120791
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all d0 x Lead A B L D H Q
16 x 5 48 10 80 28 40 M6
尺寸對照
詢價
20 x 5 58 12 92 36 44 M6
尺寸對照
詢價
25 x 5 62 12 92 40 48 M6
尺寸對照
詢價
25 x 10 62 12 153 40 48 M6
尺寸對照
詢價
32 x 5 80 12 92 50 62 M6
尺寸對照
詢價
32 x 10 80 16 160 50 62 M6
尺寸對照
詢價
40 x 5 93 15 96 63 70 M8
尺寸對照
詢價
40 x 10 93 18 162 63 70 M8
尺寸對照
詢價
50 x 10 110 16 162 75 85 M8
尺寸對照
詢價
Technical Drawing
Designation Select all Type X W
A 5.50 38
尺寸對照
詢價
A 6.60 47
尺寸對照
詢價
A 6.60 51
尺寸對照
詢價
A 6.60 51
尺寸對照
詢價
A 9 65
尺寸對照
詢價
A 9 65
尺寸對照
詢價
B 9 78
尺寸對照
詢價
B 9 78
尺寸對照
詢價
B 11 93
尺寸對照
詢價
Designation Select all Ball diameter Turns x circuits
3.18 1 x 3
尺寸對照
詢價
3.18 1 x 4
尺寸對照
詢價
3.18 1 x 4
尺寸對照
詢價
4.76 1 x 4
尺寸對照
詢價
3.18 1 x 4
尺寸對照
詢價
6.35 1 x 4
尺寸對照
詢價
3.18 1 x 4
尺寸對照
詢價
6.35 1 x 4
尺寸對照
詢價
6.35 1 x 4
尺寸對照
詢價
