SNFSCR
Safety nut for ball screw
FSCR/FSCL

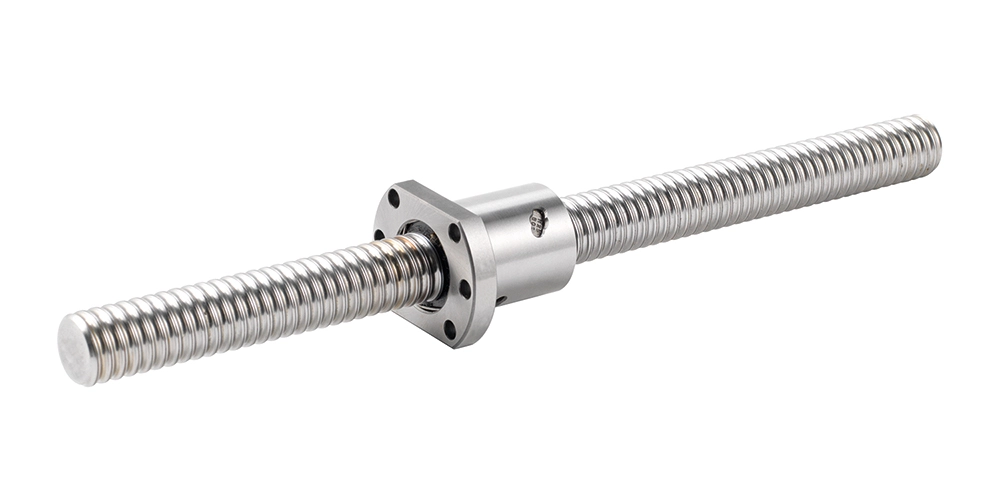

Ball nut with Flange (DIN 69051).
Available in right (FSCR) and left (FSCL) lead.
Standard nuts are with oil-seals.
All dimensions in mm.
Available in right (FSCR) and left (FSCL) lead.
Standard nuts are with oil-seals.
All dimensions in mm.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
Product Information
| Designation | Select all | Lead Time * | Compatible with | Dynamic Load Ratings Ca (N) | Static Load Ratings C0a (N) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
1 | BKN12 / FKN12 / BFN12 / FFN12 | 13185 | 14960 |
|
|||
|
|
1 | BKN12 / FKN12 / BFN12 / FFN12 | 11576 | 14676 |
|
|||
|
|
1 | BKN15 / FKN15 / BFN15 / FFN15 | 14833 | 19571 |
|
|||
|
|
1 | BKN15 / FKN15 / BFN15 / FFN15 | 14833 | 19571 |
|
|||
|
|
1 | BKN20 / FKN20 / BFN20 / FFN20 | 16716 | 25320 |
|
|||
|
|
1 | BKN17 / FKN17 / BFN17 / FFN17 | 28263 | 36248 |
|
|||
|
|
1 | BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 | 18874 | 33383 |
|
|||
|
|
1 | BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 | 18874 | 33383 |
|
|||
|
|
1 | BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 | 47422 | 76861 |
|
|||
|
|
1 | BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 | 21003 | 35081 |
|
|||
|
|
1 | BKN30 / FKN30 / WBK30DF / WBK30DFF / BFN30 / FFN30 | 21013 | 42595 |
|
|||
|
|
1 | BKN30 / FKN30 / WBK30DF / WBK30DFF / BFN30 / FFN30 | 52964 | 98826 |
|
|||
|
|
1 | BKN30 / FKN30 / WBK30DF / WBK30DFF / BFN30 / FFN30 | 37101 | 63451 |
|
|||
|
|
1 | BKN40 / WBK40DF / WBK40DFF / BFN40 | 58203 | 120791 |
|
|||
|
|
1 | — | 65727 | 159216 |
|
|||
|
|
1 | — | 87868 | 176040 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

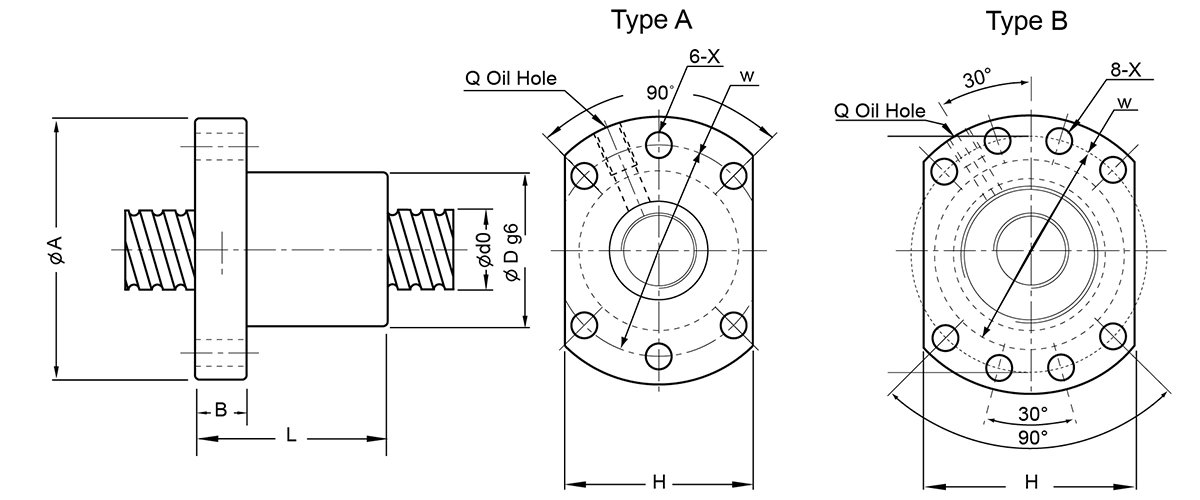

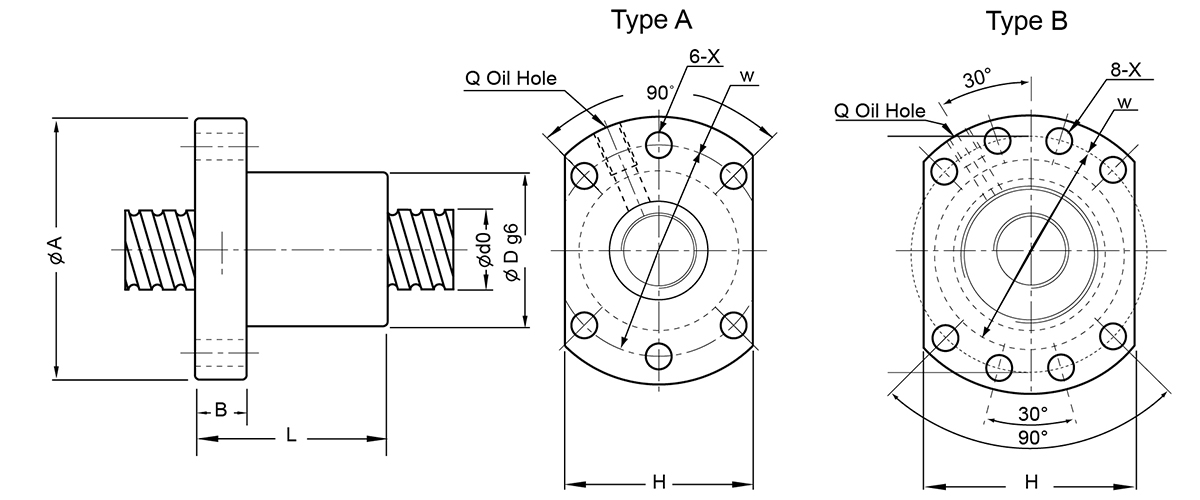

| Designation | Select all | d0 x Lead | A | B | L | D | H | Q | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
16 x 5 | 48 | 10 | 50 | 28 | 40 | M6 |
|
|||
|
|
16 x 10 | 48 | 12 | 43 | 28 | 40 | M6 |
|
|||
|
|
20 x 5 | 58 | 10 | 53 | 36 | 44 | M6 |
|
|||
|
|
20 x 5 | 58 | 10 | 34 | 36 | 44 | M6 |
|
|||
|
|
25 x 5 | 62 | 10 | 53 | 40 | 48 | M6 |
|
|||
|
|
25 x 10 | 62 | 12 | 85 | 40 | 48 | M6 |
|
|||
|
|
32 x 5 | 80 | 12 | 53 | 50 | 62 | M6 |
|
|||
|
|
32 x 5 | 80 | 12 | 53 | 50 | 62 | M6 |
|
|||
|
|
32 x 10 | 80 | 16 | 90 | 50 | 62 | M6 |
|
|||
|
|
32 x 20 | 80 | 13 | 78 | 50 | 62 | M6 |
|
|||
|
|
40 x 5 | 93 | 16 | 56 | 63 | 70 | M8 |
|
|||
|
|
40 x 10 | 93 | 18 | 93 | 63 | 70 | M8 |
|
|||
|
|
40 x 20 | 93 | 15 | 83 | 63 | 70 | M8 |
|
|||
|
|
50 x 10 | 110 | 18 | 93 | 75 | 85 | M8 |
|
|||
|
|
63 x 10 | 125 | 18 | 98 | 90 | 95 | M8 |
|
|||
|
|
63 x 20 | 135 | 20 | 138 | 95 | 100 | M8 |
|
