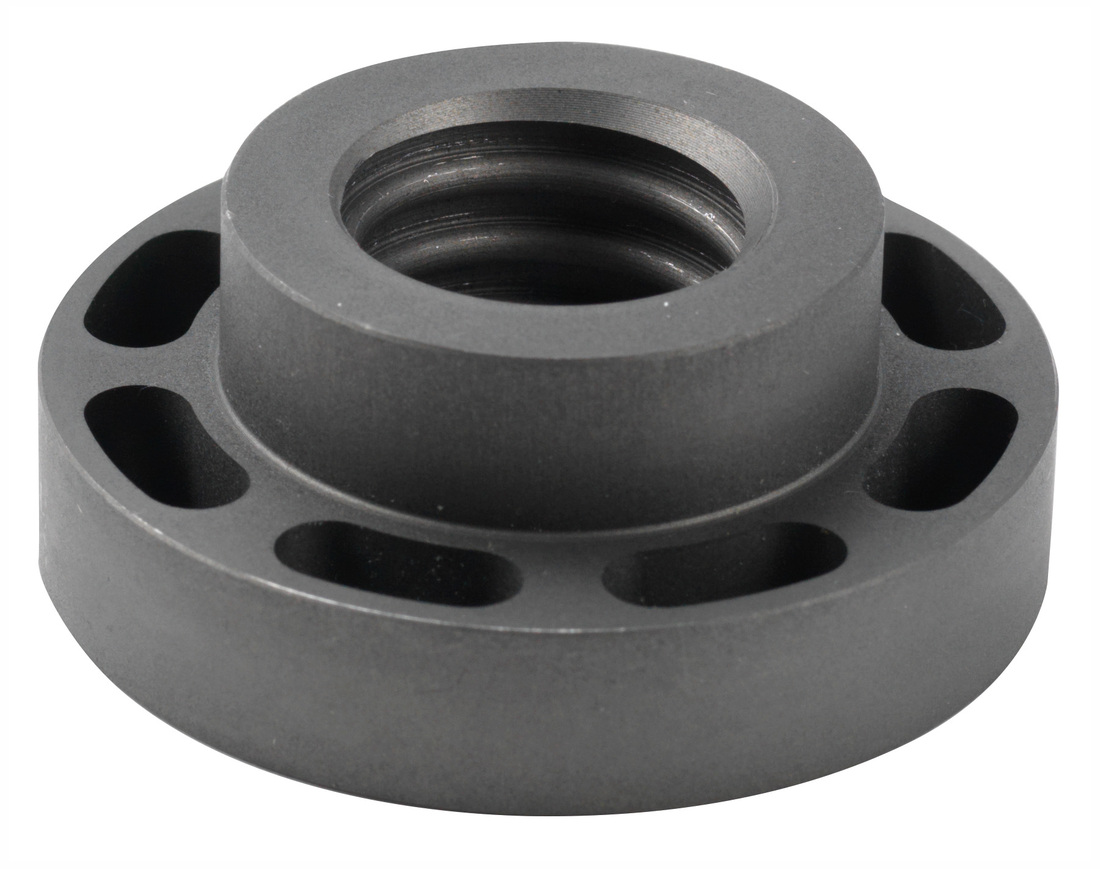

SNFSCR

STOCK ITEM
All dimensions in mm.
Download PDF
Designation Select all Lead Time *
1
尺寸對照
詢價
2
尺寸對照
詢價
2
尺寸對照
詢價
1
尺寸對照
詢價
2
尺寸對照
詢價
2
尺寸對照
詢價
2
尺寸對照
詢價
1
尺寸對照
詢價
2
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

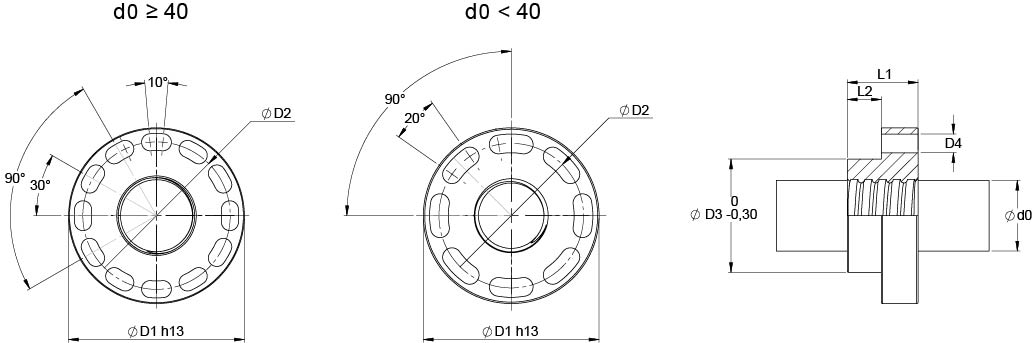

Technical Drawing
Designation Select all d0 x Lead d1 d2 L1 L2 D3 D4 Ca0
16 48 38 25 12 28 8x5,5 50000 N
尺寸對照
詢價
20 58 47 25 12 36 8x6,6 61000 N
尺寸對照
詢價
25 62 51 25 12 40 8x6,6 75000 N
尺寸對照
詢價
25 62 51 30 15 40 8x6,6 56000 N
尺寸對照
詢價
32 80 65 30 15 50 8x9 112000 N
尺寸對照
詢價
32 80 65 30 15 50 8x9 113000 N
尺寸對照
詢價
40 93 78 35 15 63 12x9 163000 N
尺寸對照
詢價
40 93 78 40 15 63 12x9 190000 N
尺寸對照
詢價
50 110 93 40 15 75 12x11 226000 N
尺寸對照
詢價
