RNB

STOCK ITEM
Other types on request. Please contact Rollco for more information.

All dimensions in mm.
Download PDF
Designation Select all Lead Time *
1
尺寸對照
詢價
1
尺寸對照
詢價
1
尺寸對照
詢價
1
尺寸對照
詢價
1
尺寸對照
詢價

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

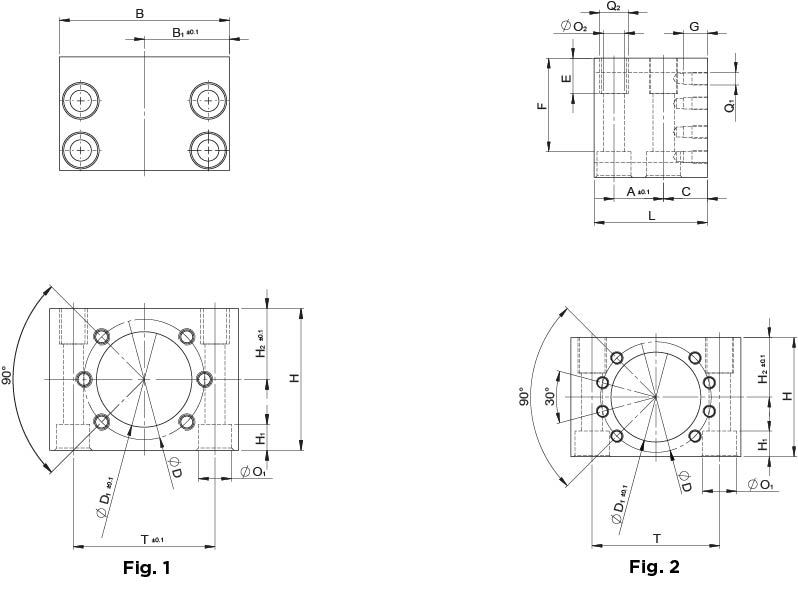

Technical Drawing
Designation Select all A d1 B L C D H B1 E F G T H1 H2 O1 O2 Q1 Q2 Fig.
20 28.40 70 50 20 38 48 35 15 37 10 50 11 24 14 8.40 M5 M10 1
尺寸對照
詢價
23 36.40 75 55 22 47 54 37.50 15 45 11 55 9 28 14 8.40 M6 M10 1
尺寸對照
詢價
23 40.40 80 55 22 51 58 40 15 49 11 60 9 30 14 8.40 M6 M10 1
尺寸對照
詢價
30 50.40 100 70 27 65 68 50 20 52 14 75 16 35 18 13 M8 M16 1
尺寸對照
詢價
35 63.40 120 80 31 78 84 60 25 66 17 90 18 42 24 15 M8 M18 2
尺寸對照
詢價
  • STOCK ITEM

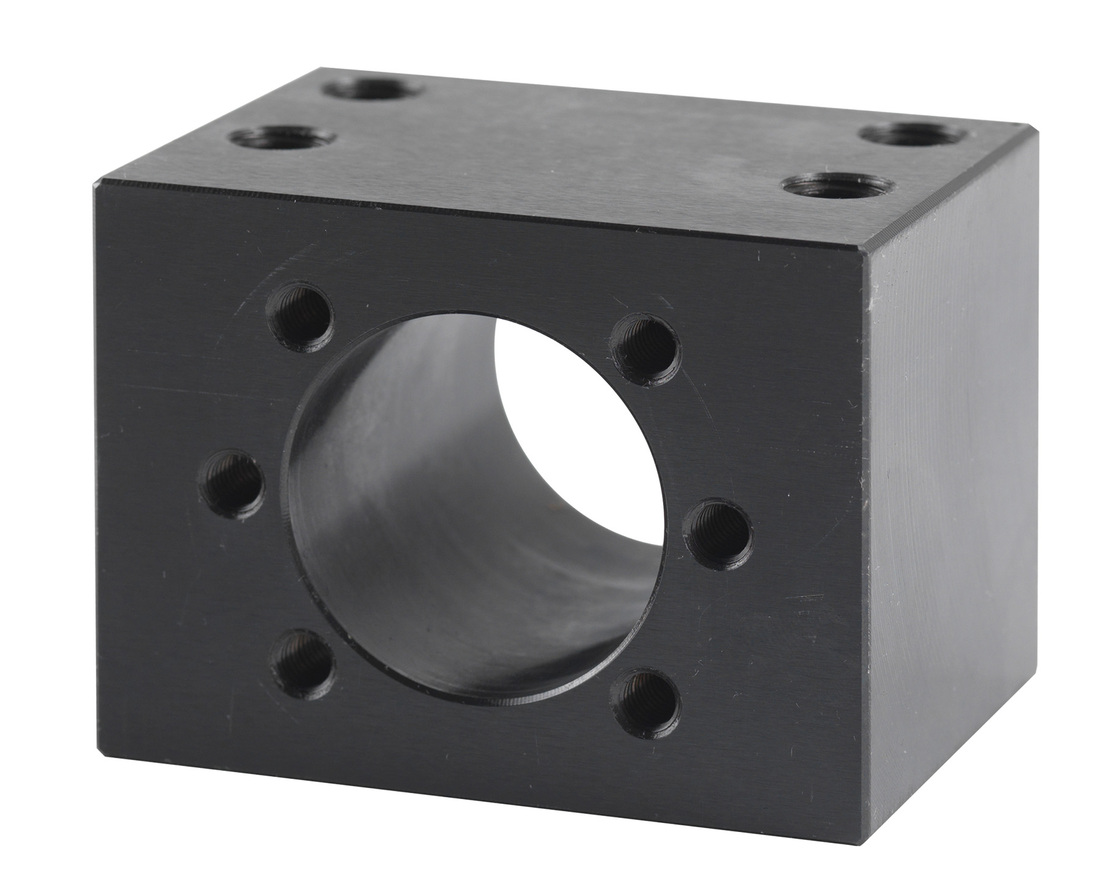

    Ball nut cylindrical with thread, internal recirculation, for right lead (SR) screw
  • STOCK ITEM
    Ball nut with flange, for right & left lead screw (SR/SL), most common type
  • STOCK ITEM
    Ball nut with flange, long lead, for right lead (SR) screw
  • STOCK ITEM
    Ball nut with flange, overlead, for right lead (SCR) screw
  • STOCK ITEM
    Ball nut, double, with flange, for right lead screw (SR)
  • STOCK ITEM
    Safety nut for ball screw
  • STOCK ITEM
    Lock nut for ball screw
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit for end of ball screw machined accordingly
  • STOCK ITEM
    Support unit heavy load for end of ball screw machined accordingly
  • STOCK ITEM
    Ball screw shaft
