Linear Unit CTJ 145

The CTJ series includes linear units with a toothed belt drive and two parallel, integrated, zero-backlash rail guides. In the linear units CTJ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.

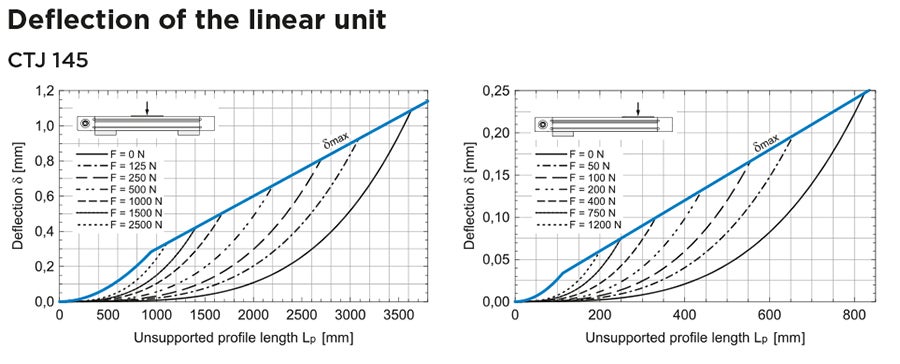

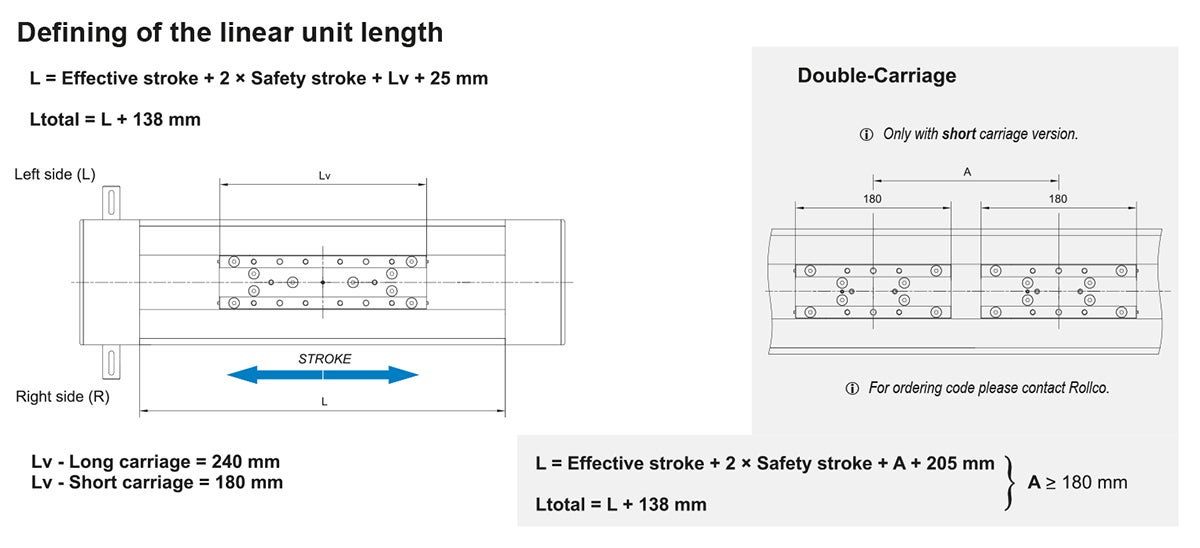

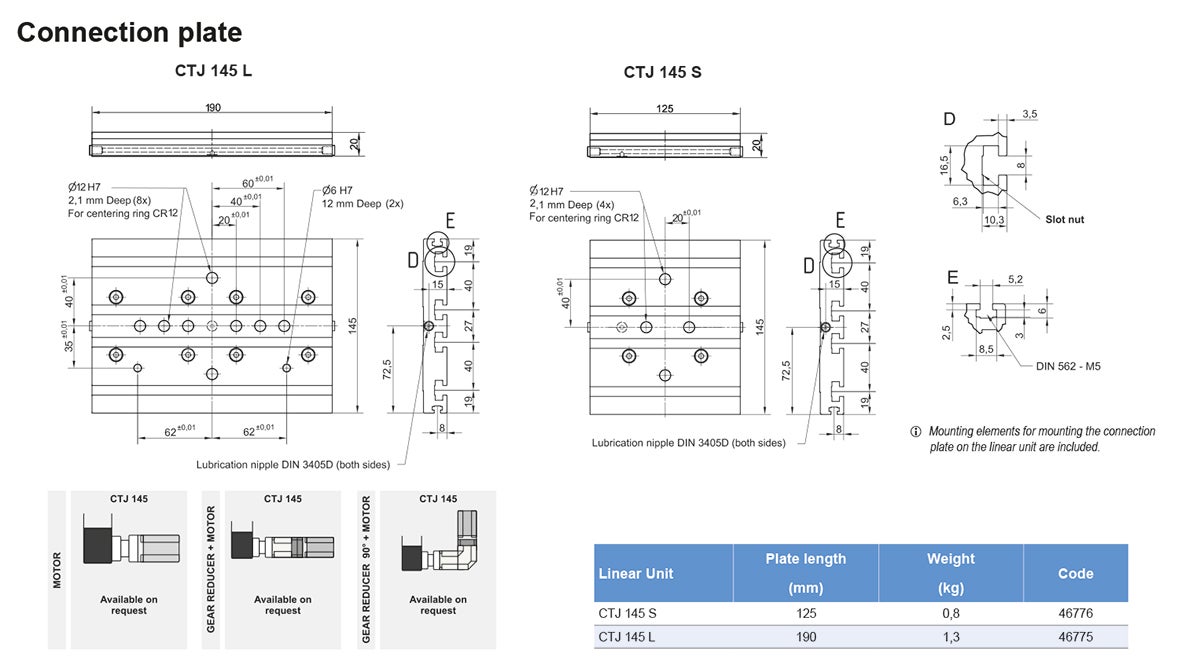

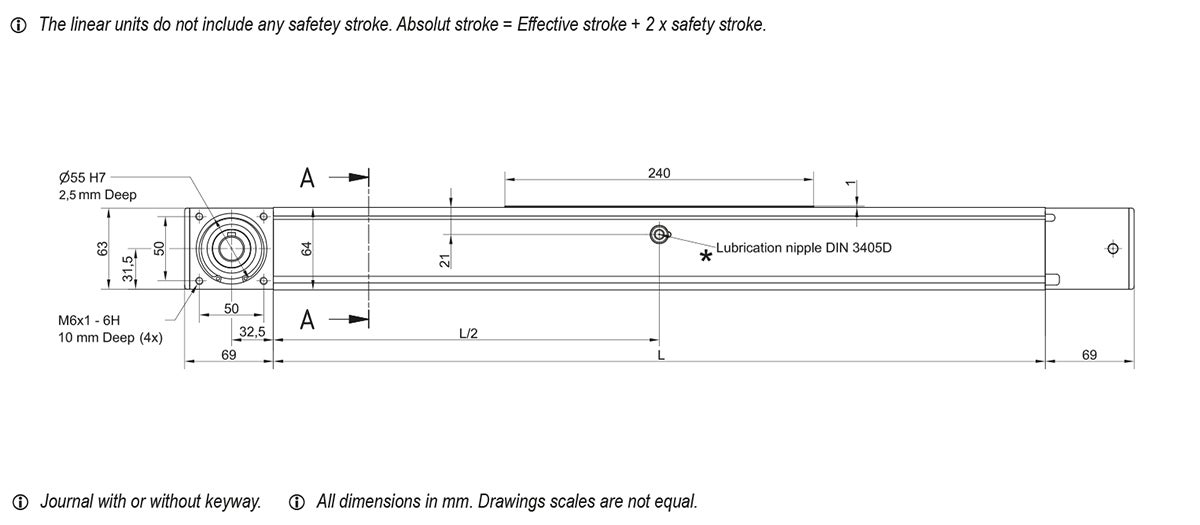

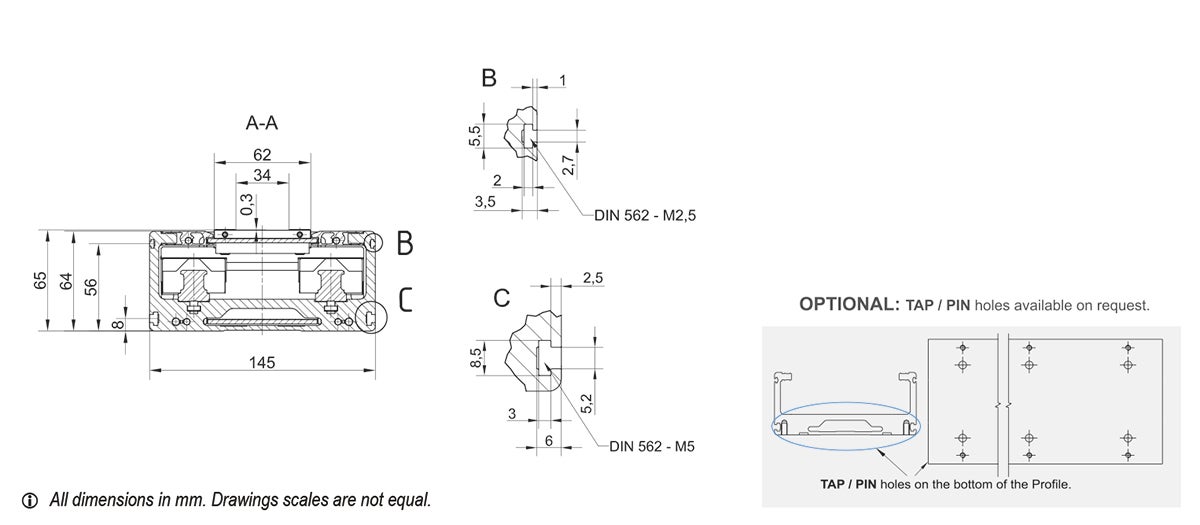

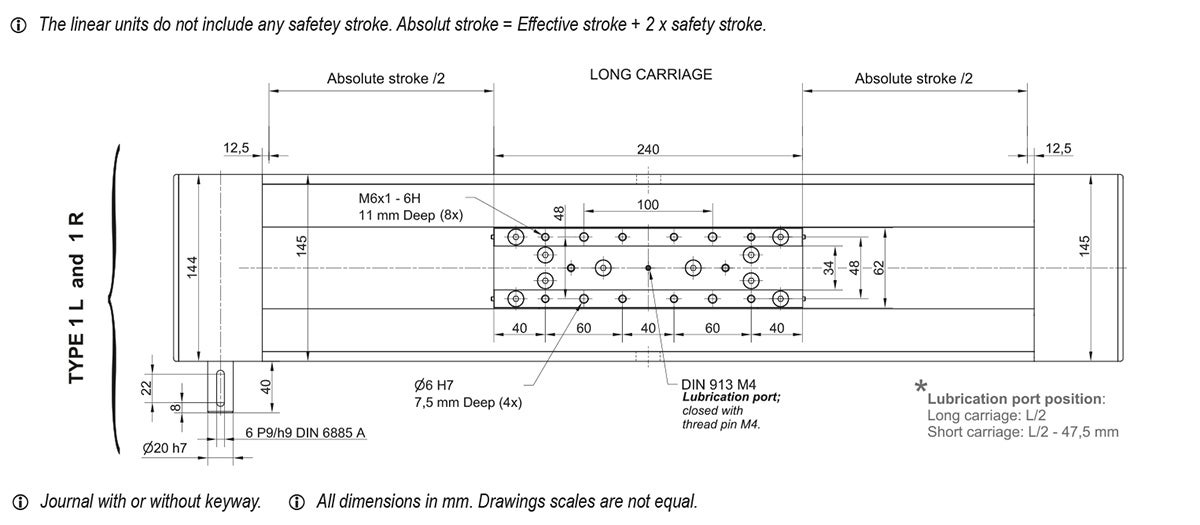

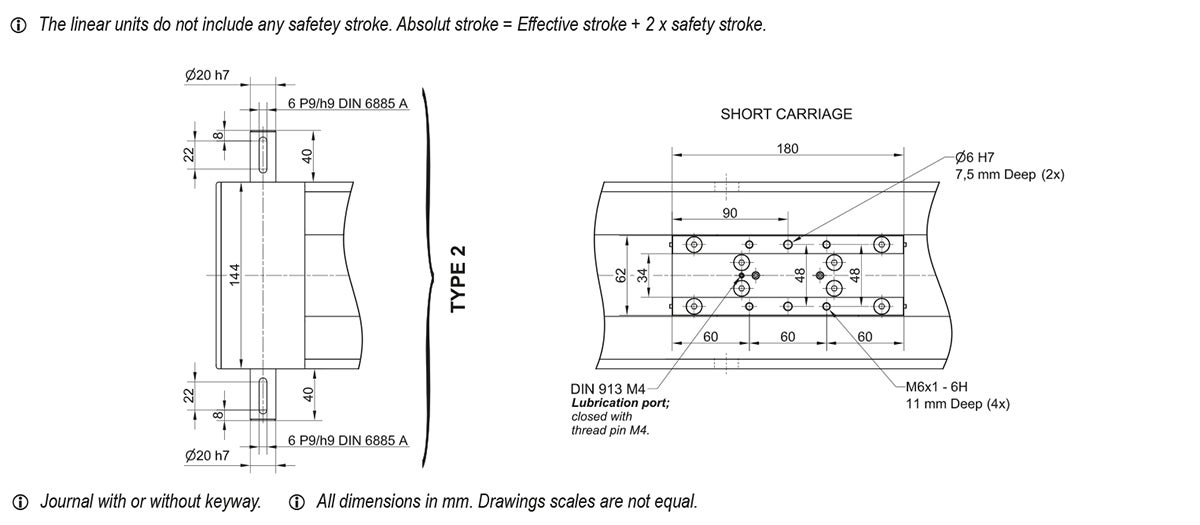

Dimensions in mm.
下載PDF檔 code.product.loadingpdf
+ 加入 PDF 目錄

Product Information

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 70
Max. Travel Speed (m/s): 6
Linear_Units_CT_MT_Technical_Information.pdf
Order_Codes_CTJ.pdf
Maintenance_and_Assembly_Instructions_CTJ.pdf
Calculation Tool
Designation Select all Lead Time * Carriage Length Lv (mm) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Moved Mass (kg) Max. Repeatability (mm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm) CAD Compare
2 180 1500 260 520 34200 60000 8930 15320 674 260 180 1.35 ± 0.08 6000 5795 55
Get quote
2 240 3005 3420 3420 68400 120000 17870 30640 1200 1700 893 2.25 ± 0.08 6000 5735 55
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Carriage version Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) CAD Compare
S2 68400 120000 3000 34.2 × A (mm) 34.2 × A (mm) 17860 30630 1350 15.3 × A (mm) 8.9 × A (mm)
Get quote
S2 68400 120000 3000 34.2 × A (mm) 34.2 × A (mm) 17860 30630 1350 15.3 × A (mm) 8.9 × A (mm)
Get quote
Designation Select all Max. Travel Speed (m/s) No Load Torque (Nm) Pulley Drive Ratio (mm/rev) Pulley Diameter Belt Type Belt Width Max. Force Transmitted by Belt (N) Specific Spring Constant Cspec (N) Max. Drive Torque (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) CAD Compare
6 1.48 × nc 165 52.52 AT 5 70 1280 1360000 33.6 78.9 707.6
Get quote
6 1.50 × nc 165 52.52 AT 5 70 1280 1360000 33.6 78.9 707.6
Get quote
Designation Select all Mass of Linear Unit (kg) Mass Moment of Inertia (10⁻⁵ kg m²) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) Moved Mass (kg) No Load Torque (Nm) CAD Compare
7.2 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 1.35 × (nc - 1) 145 + 0.0330 × (Abs. Stroke + (nc - 1) × A) + 93.1 × (nc - 1) 78.9 707.6 1.35 1.48 × nc
Get quote
8.8 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 2.25 × (nc - 1) 208 + 0.0330 × (Abs. Stroke + (nc - 1) × A) + 155.2 × (nc - 1) 78.9 707.6 2.25 1.50 × nc
