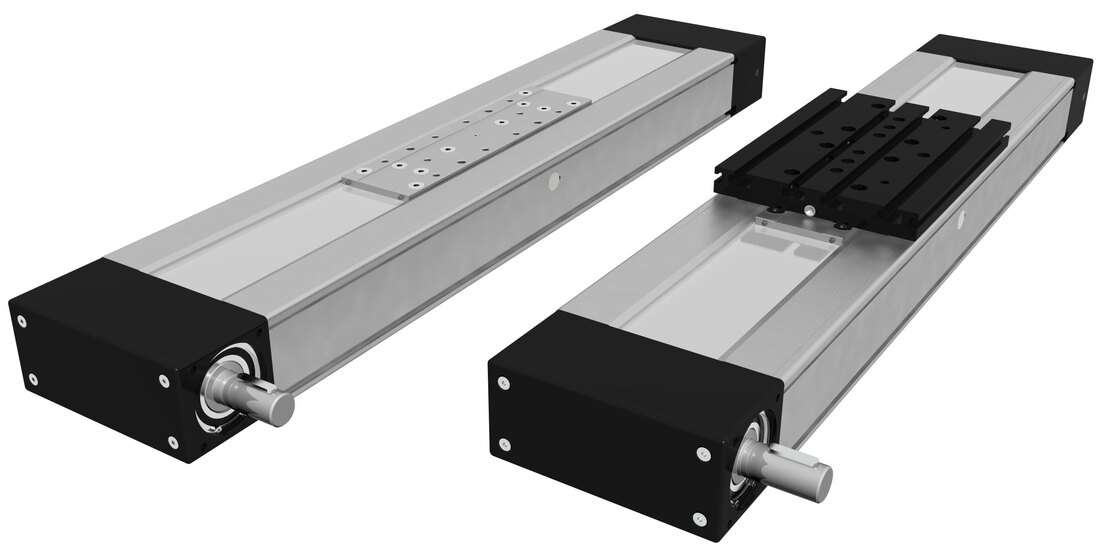

Linear Unit CTJ 200
The CTJ series includes linear units with a toothed belt drive and two parallel, integrated, zero-backlash rail guides. In the linear units CTJ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.

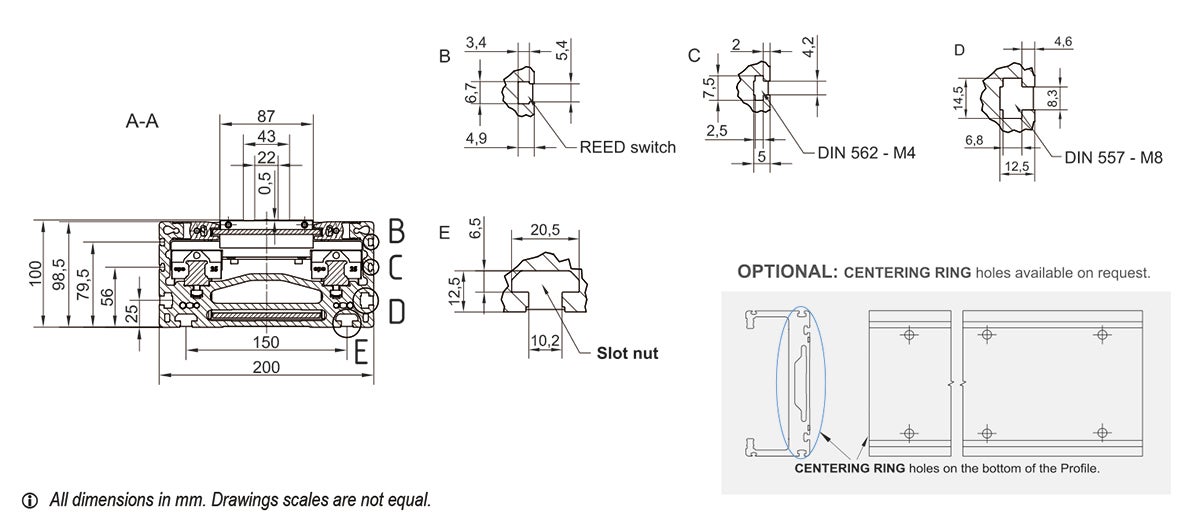

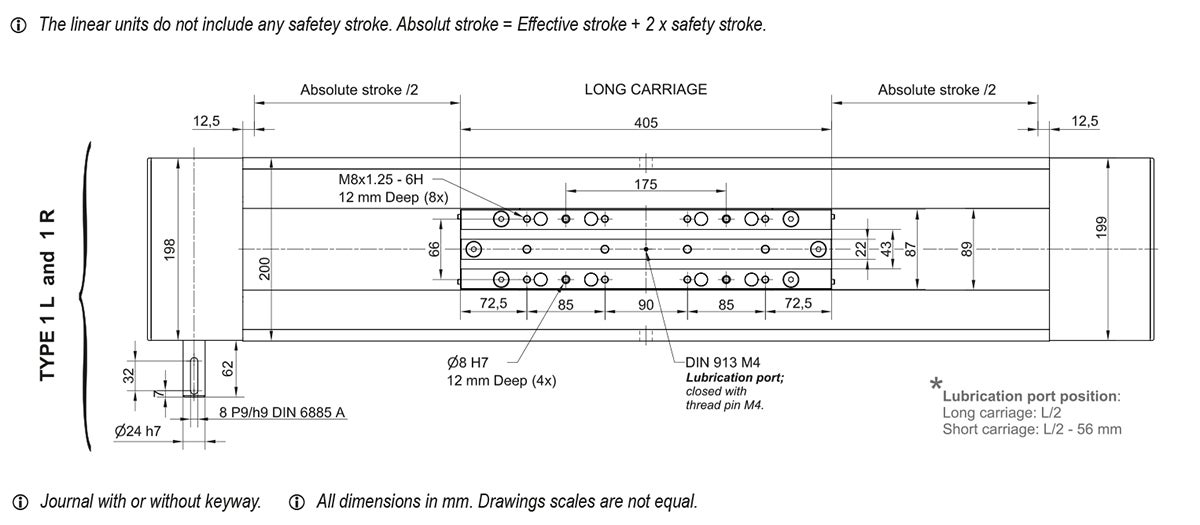

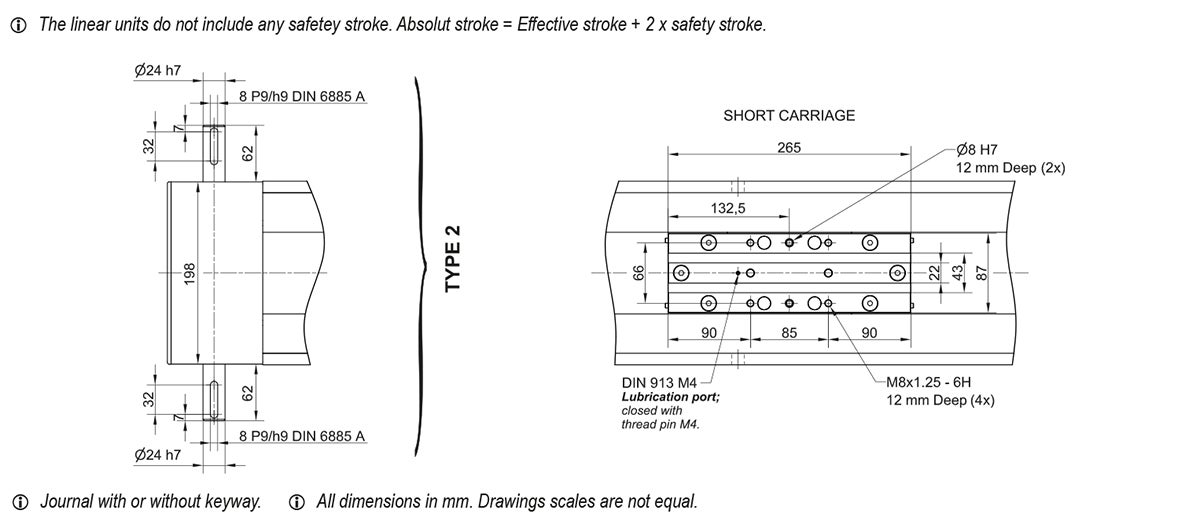

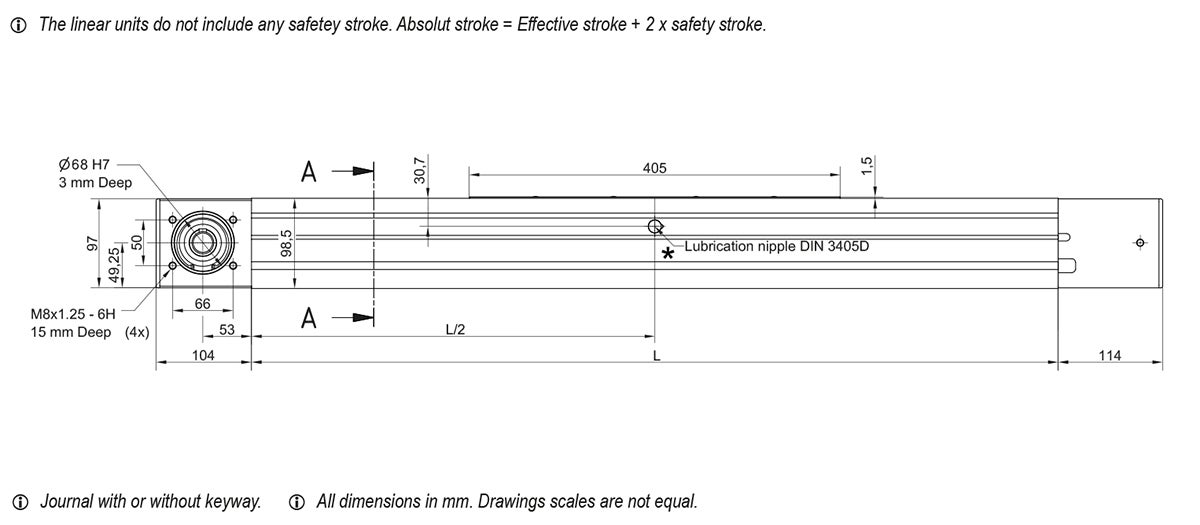

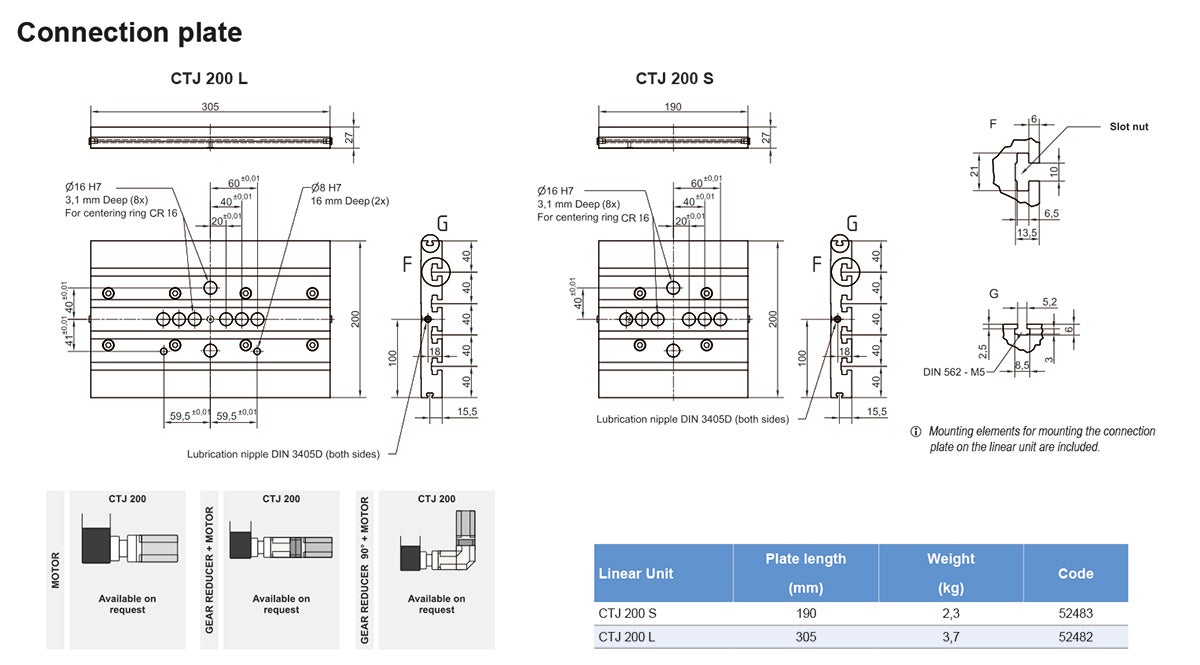

Dimensions in mm.
The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.

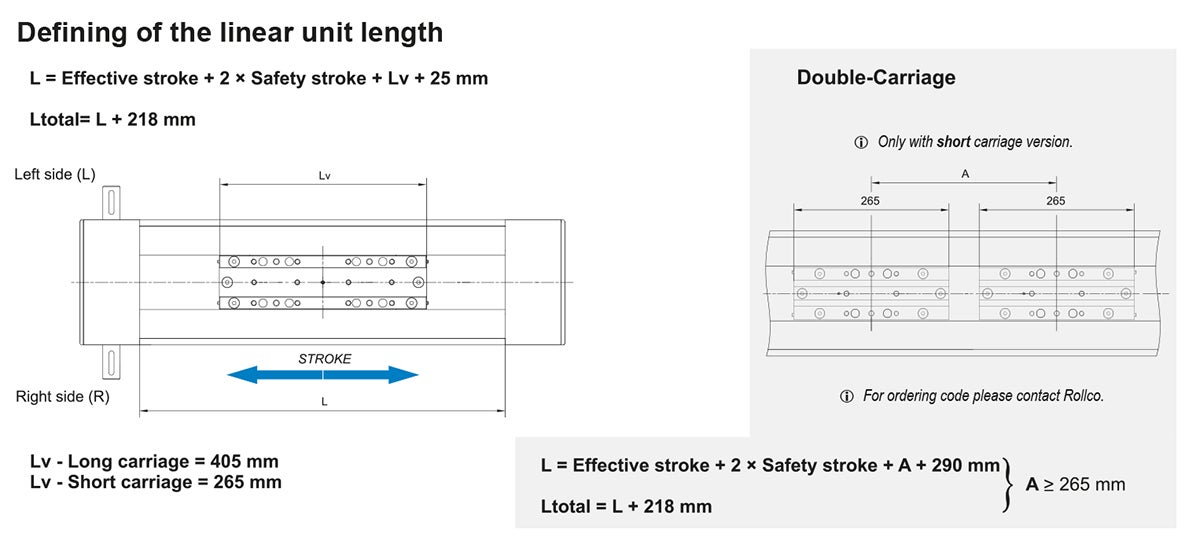

Dimensions in mm.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
Product Information

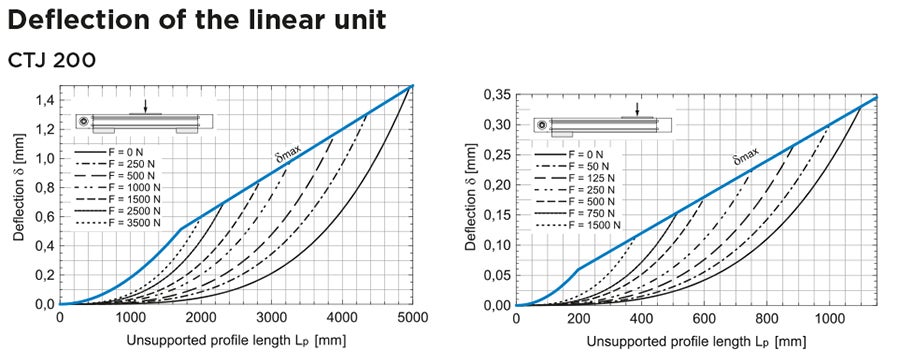

Modulus of elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%

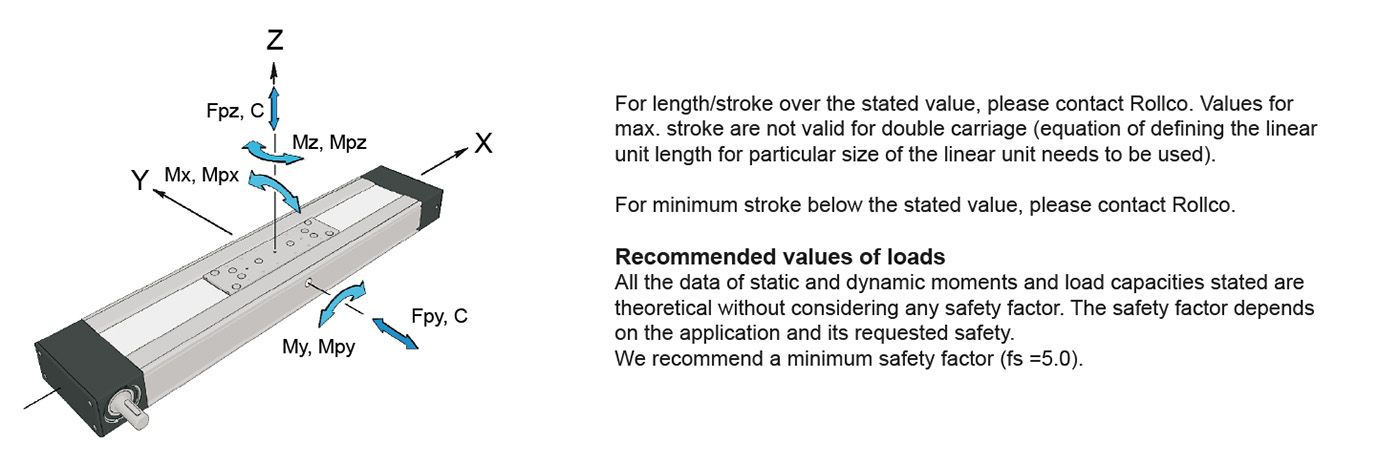

| Designation | Select all | Lead Time * | Carriage Length Lv | Dynamic Moment Mx (Nm) | Dynamic Moment My (Nm) | Dynamic Moment Mz (Nm) | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Max. Permissible Loads Forces Fpy (N) | Max. Permissible Loads Forces Fpz (N) | Max. Permissible Loads Moments Mpx (Nm) | Max. Permissible Loads Moments Mpy (Nm) | Max. Permissible Loads Moments Mpz (Nm) | Moved Mass (kg) | Max. Repeatability (mm) | Max. length Lmax | Max. stroke | Min. stroke | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 265 | 3235 | 450 | 900 | 49600 | 85000 | 10000 | 24520 | 1600 | 450 | 308 | 3.05 | ± 0.08 | 6000 | 5710 | 65 |
|
|||
|
|
2 | 405 | 6470 | 8680 | 8680 | 99200 | 170000 | 20000 | 50900 | 3250 | 4550 | 1750 | 5.7 | ± 0.08 | 6000 | 5570 | 65 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

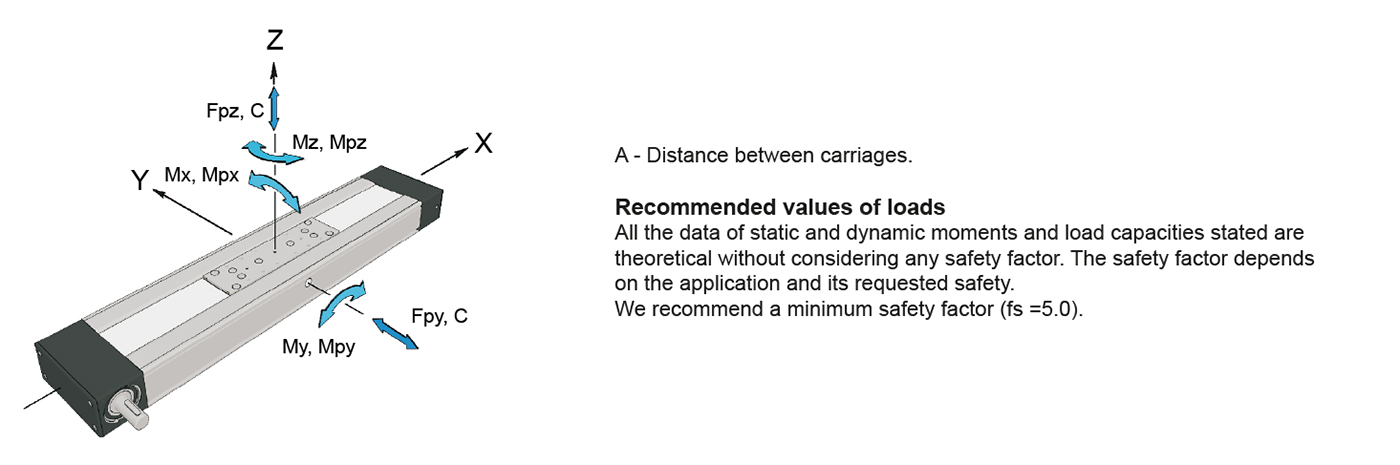

| Designation | Select all | Carriage version | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Dynamic Moment Mx (Nm) | Dynamic Moment My (Nm) | Dynamic Moment Mz (Nm) | Max. Permissible Loads Forces Fpy (N) | Max. Permissible Loads Forces Fpz (N) | Max. Permissible Loads Moments Mpx (Nm) | Max. Permissible Loads Moments Mpy (Nm) | Max. Permissible Loads Moments Mpz (Nm) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
S2 | 99200 | 170000 | 6470 | 49.6 * A (mm) | 49.6 * A (mm) | 20000 | 49040 | 3200 | 24.5 * A (mm) | 10.0 * A (mm) |
|
|||
|
|
S2 | 99200 | 170000 | 6470 | 49.6 * A (mm) | 49.6 * A (mm) | 20000 | 49040 | 3200 | 24.5 * A (mm) | 10.0 * A (mm) |
|

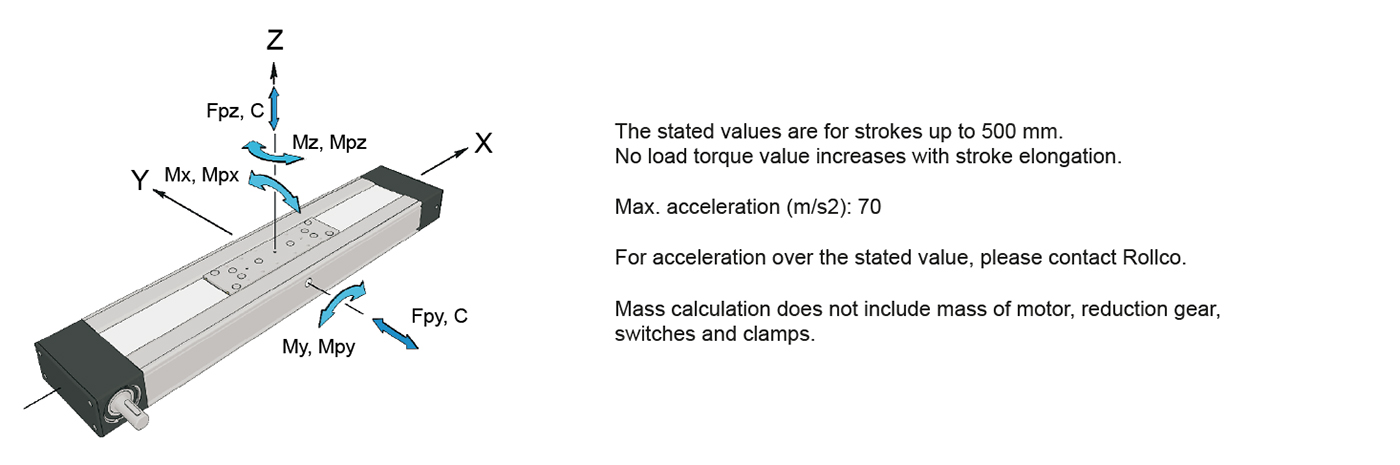

| Designation | Select all | Max. Travel Speed (m/s) | No Load Torque (Nm) | Pulley Drive Ratio (mm/rev) | Pulley diameter | Belt type | Belt width | Max. Force Transmitted by Belt (N) | Specific Spring Constant Cspec (N) | Max. Drive Torque (Nm) | Min. stroke | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
6 | 2.3 | 250 | 79.58 | AT 10 | 100 | 3250 | 4350000 | 102 | 65 | 376.4 | 2744.6 |
|
|||
|
|
6 | 2.8 | 250 | 79.58 | AT 10 | 100 | 3250 | 4350000 | 129 | 65 | 376.4 | 2744.6 |
|
| Designation | Select all | Carriage Length Lv | Mass of Linear Unit (kg) | Mass moment of inertia (10⁻⁵ kg * m²) | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | Moved Mass (kg) | No Load Torque (Nm) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
265 | 20.2 + 0.0245 * Stroke (mm) | 778 + 0. 1868 * Stroke (mm) | 376.4 | 2744.6 | 3.05 | 2.3 |
|
|||
|
|
405 | 26.2 + 0.0245 * Stroke (mm) | 1210 + 0.1868 * Stroke (mm) | 376.4 | 2744.6 | 5.7 | 2.8 |
|
-
-
