Linear Unit CTV 110

The CTV series describes linear units with a precision ball screw drive and two parallel, integrated, zero backlash rail guides. In the linear units CTV a precision ball screw, with tolerance class IS07 (IS05 on request), with reduced backlash of the ball nut is used.

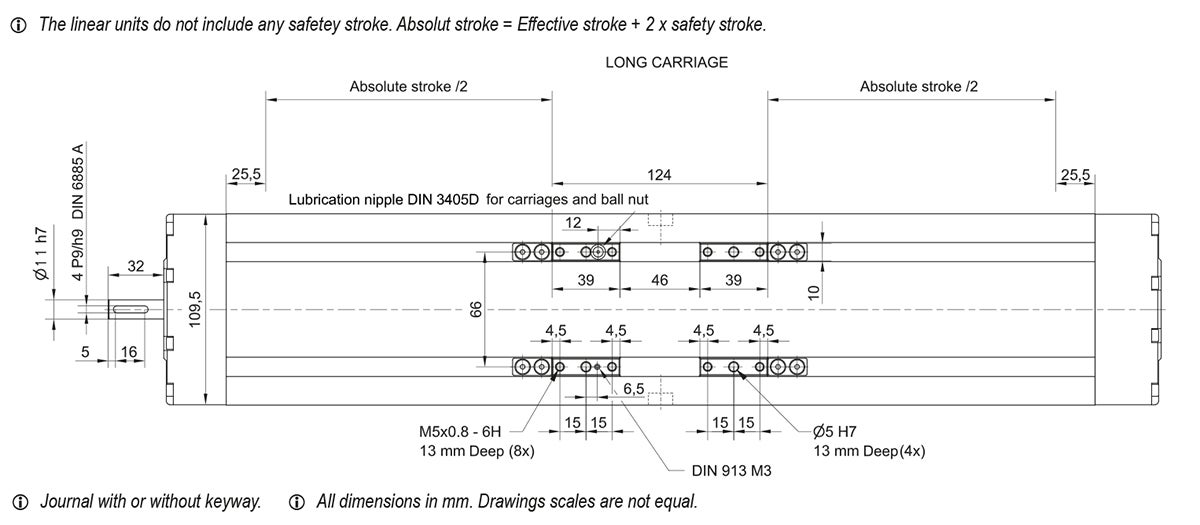

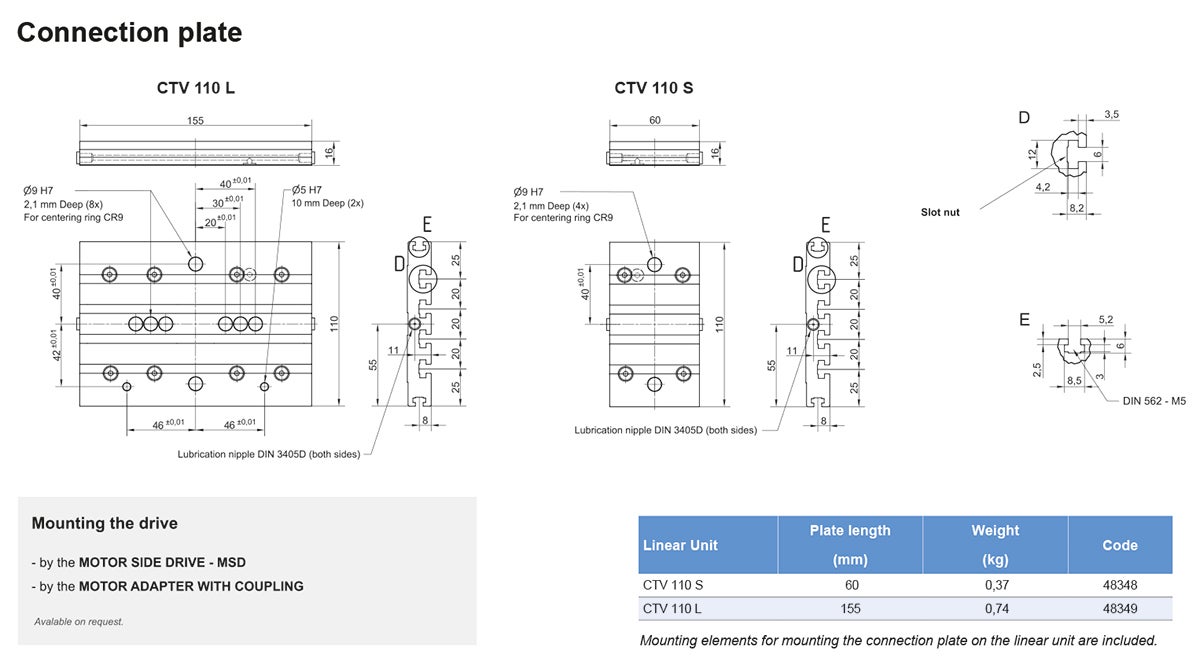

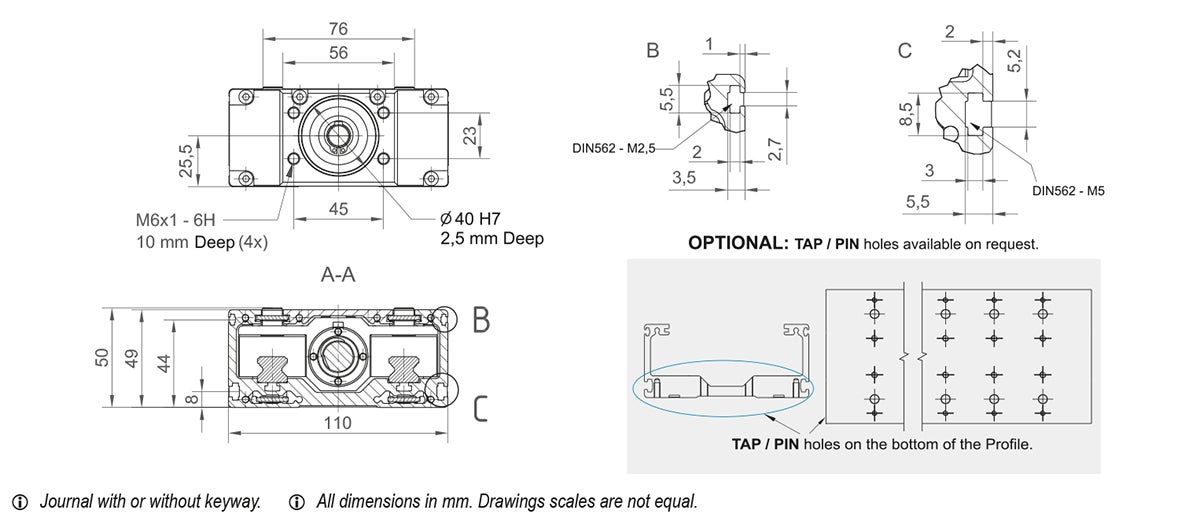

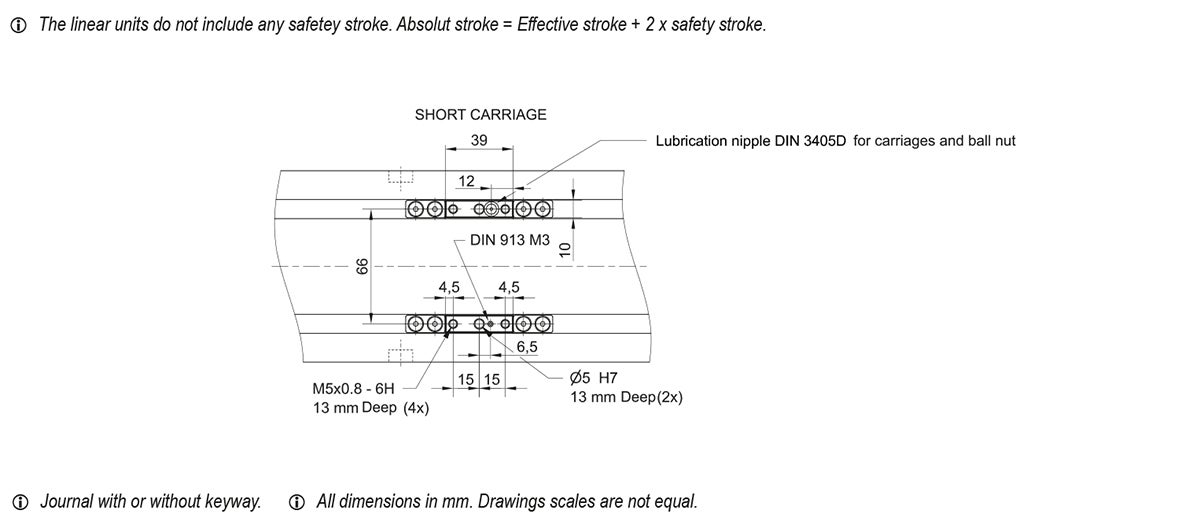

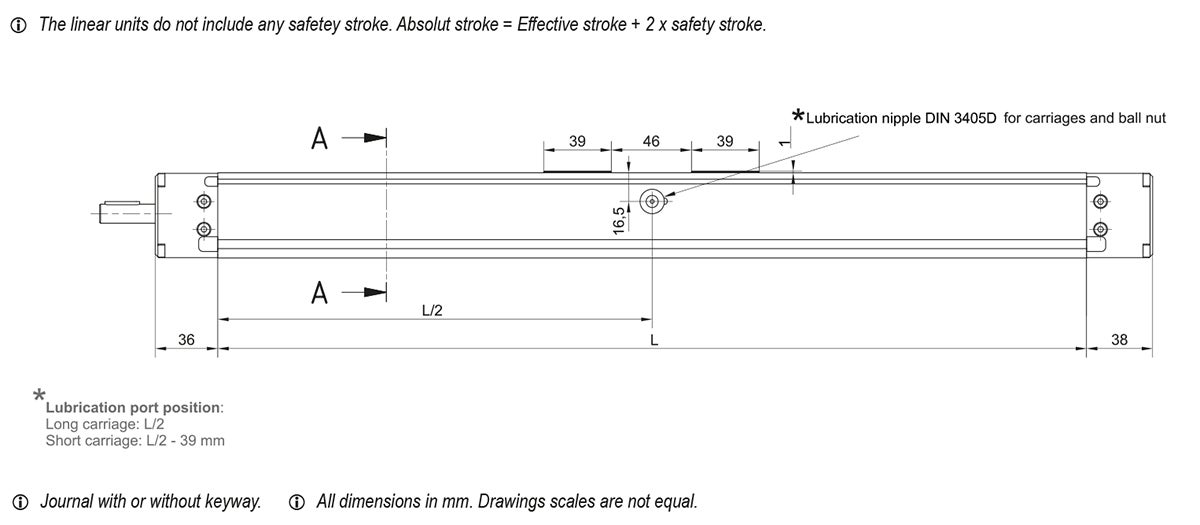

Two parallel circulating antistatic polyurethane sealing strips and an aluminum cover are ensuring to protect all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.

下載PDF檔 code.product.loadingpdf

+ 加入 PDF 目錄

Product Information

Modulus of elasticity: E = 70000 N / mm2

Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.

Duty cycle: 100%

Linear_Units_CT_MT_Technical_Information.pdf

Order_Codes_CTV.pdf

Maintenance_and_Assembly_Instructions_CTV.pdf

Calculation Tool

Designation	Lead Time *	Carriage Length Lv	Dynamic Moment Mx (Nm)	Dynamic Moment My (Nm)	Dynamic Moment Mz (Nm)	Dynamic Load Capacity C (N)	Static Load Capacity C0 (N)	Max. Permissible Loads Forces Fpy (N)	Max. Permissible Loads Forces Fpz (N)	Max. Permissible Loads Moments Mpx (Nm)	Max. Permissible Loads Moments Mpy (Nm)	Max. Permissible Loads Moments Mpz (Nm)	Moved Mass (kg)	Max. length Lmax	Max. stroke	Min. stroke
CTV 110 S - 16 x 5	2	39	650	118	235	19800	35000	4670	9390	310	90	90	0.63	1500	1410	40	Get quote
CTV 110 S - 16 x 10	2	39	650	118	235	19800	35000	4670	9390	310	90	90	0.63	1500	1410	40	Get quote
CTV 110 S - 16 x 16	2	39	650	118	235	19800	35000	4670	9390	310	90	90	0.63	1500	1410	40	Get quote
CTV 110 L - 16 x 5	2	124	1305	1680	1680	39600	70000	13080	18800	620	800	550	1.36	1500	1325	40	Get quote
CTV 110 L - 16 x 10	2	124	1305	1680	1680	39600	70000	13080	18800	620	800	550	1.36	1500	1325	40	Get quote
CTV 110 L - 16 x 16	2	124	1305	1680	1680	39600	70000	13080	18800	620	800	550	1.36	1500	1325	40	Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	Carriage version	Dynamic Load Capacity C (N)	Static Load Capacity C0 (N)	Dynamic Moment Mx (Nm)	Dynamic Moment My (Nm)	Dynamic Moment Mz (Nm)	Max. Permissible Loads Forces Fpy (N)	Max. Permissible Loads Forces Fpz (N)	Max. Permissible Loads Moments Mpx (Nm)	Max. Permissible Loads Moments Mpy (Nm)	Max. Permissible Loads Moments Mpz (Nm)
CTV 110 S - 16 x 5	S2 (S)	39600	70000	1300	19.8 * A (mm)	19.8 * A (mm)	12940	18790	620	9.4 * A (mm)	6.5 * A (mm)	Get quote
CTV 110 S - 16 x 10	S2 (S)	39600	70000	1300	19.8 * A (mm)	19.8 * A (mm)	12940	18790	620	9.4 * A (mm)	6.5 * A (mm)	Get quote
CTV 110 S - 16 x 16	S2 (S)	39600	70000	1300	19.8 * A (mm)	19.8 * A (mm)	12940	18790	620	9.4 * A (mm)	6.5 * A (mm)	Get quote
CTV 110 L - 16 x 5	S2 (L)	39600	70000	1300	19.8 * A (mm)	19.8 * A (mm)	12940	18790	620	9.4 * A (mm)	6.5 * A (mm)	Get quote
CTV 110 L - 16 x 10	S2 (L)	39600	70000	1300	19.8 * A (mm)	19.8 * A (mm)	12940	18790	620	9.4 * A (mm)	6.5 * A (mm)	Get quote
CTV 110 L - 16 x 16	S2 (L)	39600	70000	1300	19.8 * A (mm)	19.8 * A (mm)	12940	18790	620	9.4 * A (mm)	6.5 * A (mm)	Get quote

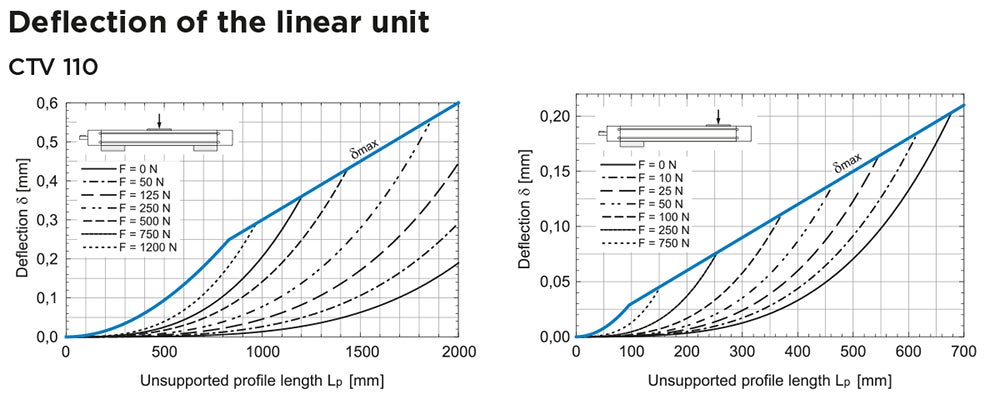

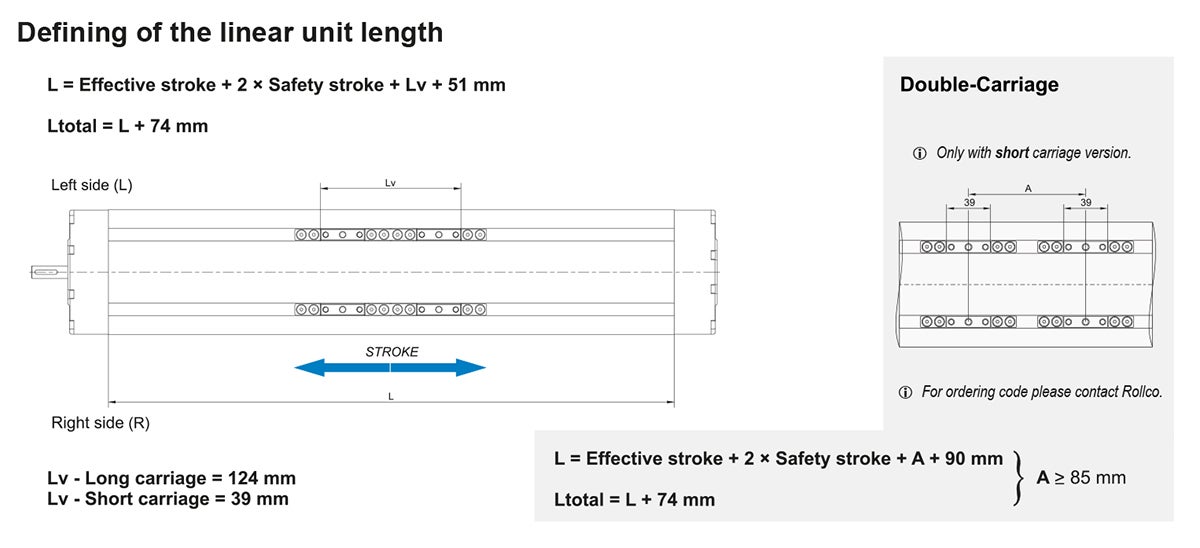

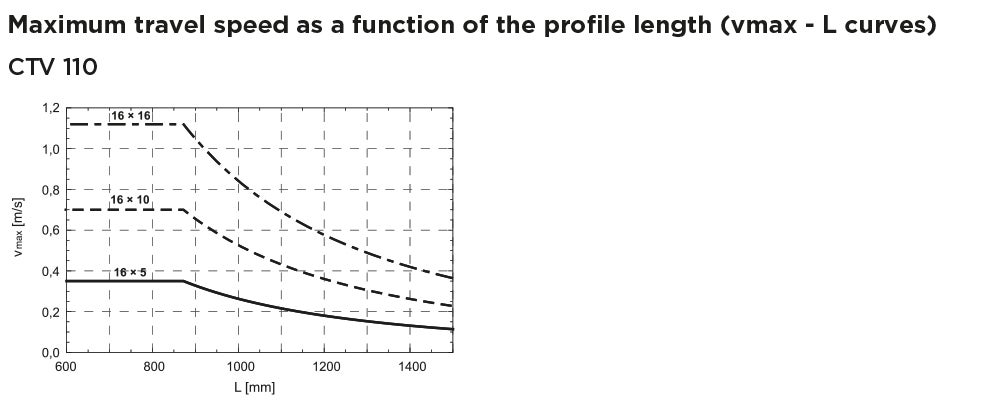

Designation	Max. Travel Speed (m/s)	Max. Rotational Speed (rev/min)	Max. Drive Torque Ma (Nm)	Lead Constant (mm/rev)	No Load Torque Carriage S (Nm)	No Load Torque Carriage L (Nm)	Ball screw (d x l)	Max. repeatability precision Standard ISO7	Max. repeatability precision ISO5	Dynamic Load Capacity BS Ca (N)	Max. Axial Load Fx (N)	Min. stroke	Planar moment of inertia ly cm⁴	Planar moment of inertia lz cm⁴
CTV 110 S - 16 x 5	0.35	4200	5,5 (w. keyway), 7,7 (w.o keyway)	5	0.11	0.13	16 x 5	± 0.02	± 0.01	13150	8700	40	29.1	196	Get quote
CTV 110 S - 16 x 10	0.7	4200	5,5 (w. keyway), 11,9 (w.o keyway)	10	0.12	0.16	16 x 10	± 0.02	± 0.01	11550	6730	40	29.1	196	Get quote
CTV 110 S - 16 x 16	1.12	4200	5,5 (w. keyway), 11,9 (w.o keyway)	16	0.14	0.18	16 x 16	± 0.02	± 0.01	8170	4200	40	29.1	196	Get quote
CTV 110 L - 16 x 5	0.35	4200	5,5 (w. keyway), 7,7 (w.o keyway)	5	0.11	0.13	16 x 5	± 0.02	± 0.01	13150	8700	40	29.1	196	Get quote
CTV 110 L - 16 x 10	0.7	4200	5,5 (w. keyway), 11,9 (w.o keyway)	10	0.12	0.16	16 x 10	± 0.02	± 0.01	11550	6730	40	29.1	196	Get quote
CTV 110 L - 16 x 16	1.12	4200	5,5 (w. keyway), 11,9 (w.o keyway)	16	0.14	0.18	16 x 16	± 0.02	± 0.01	8170	4200	40	29.1	196	Get quote

Designation	Carriage Length Lv	Ball screw (d x l)	Mass of Linear Unit (kg)	Mass moment of inertia (10⁻⁵ kg * m²)	Planar moment of inertia ly cm⁴	Planar moment of inertia lz cm⁴	Moved Mass (kg)
CTV 110 S - 16 x 5	39	16 x 5	3.3 + 0.008 * Stroke (mm)	0.70 + 0.005 * Stroke (mm)	29.1	196	0.63	Get quote
CTV 110 S - 16 x 10	39	16 x 10	3.3 + 0.008 * Stroke (mm)	0.82 + 0.005 * Stroke (mm)	29.1	196	0.63	Get quote
CTV 110 S - 16 x 16	39	16 x 16	3.3 + 0.008 * Stroke (mm)	1.07 + 0.005 * Stroke (mm)	29.1	196	0.63	Get quote
CTV 110 L - 16 x 5	124	16 x 5	4.6 + 0.008 * Stroke (mm)	1.19 + 0.005 * Stroke (mm)	29.1	196	1.36	Get quote
CTV 110 L - 16 x 10	124	16 x 10	4.6 + 0.008 * Stroke (mm)	1.45 + 0.005 * Stroke (mm)	29.1	196	1.36	Get quote
CTV 110 L - 16 x 16	124	16 x 16	4.6 + 0.008 * Stroke (mm)	1.99 + 0.005 * Stroke (mm)	29.1	196	1.36	Get quote
